Component Locations

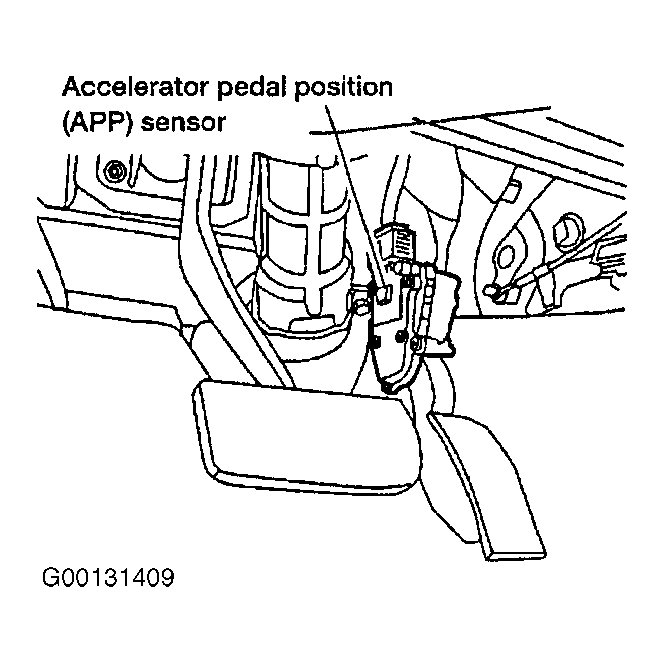

Fig 1: Locating Accelerator Pedal Position Sensor (2002 Altima & Sentra)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 2: Locating Accelerator Pedal Position Sensor (2002 I35 & Maxima)

Courtesy of NISSAN MOTOR CO., U.S.A.

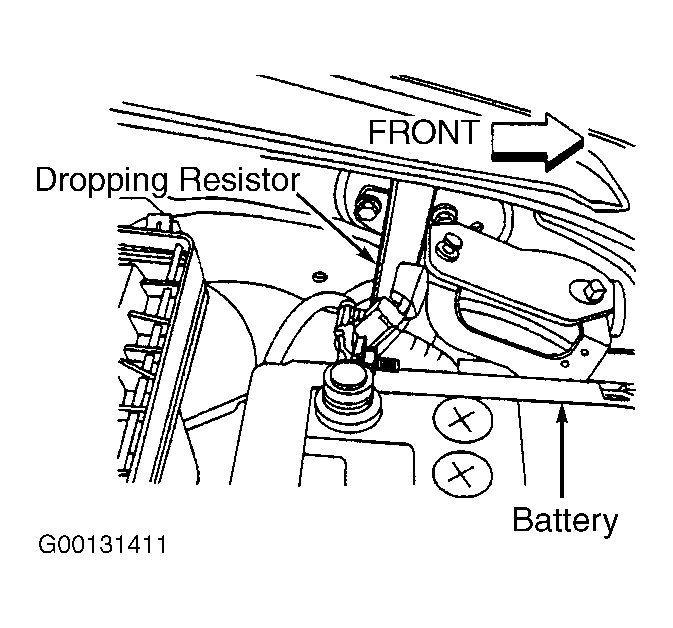

Fig 3: Locating Dropping Resistor (2001 Altima)

Courtesy of NISSAN MOTOR CO., U.S.A.

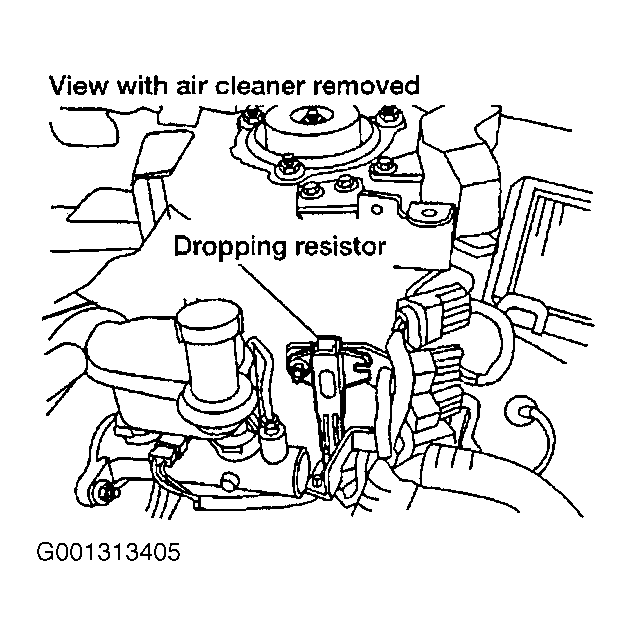

Fig 4: Locating Dropping Resistor (2002 Altima)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 5: Locating Dropping Resistor (I30, I35 & Maxima)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 6: Locating Dropping Resistor (Quest)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 7: Locating Dropping Resistor (Sentra)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 8: Locating Transmission Control Module (2001 Altima)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 9: Locating Transmission Control Module (2002 Altima)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 10: Locating Transmission Control Module (I30, I35 & Maxima)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 11: Locating Transmission Control Module (Quest)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 12: Locating Transmission Control Module (Sentra)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 13: Locating Park/Neutral Position Switch & Transaxle Harness Connector

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 14: Identifying Turbine Revolution Sensor, Revolution Sensor & Vehicle Speed Sensor Locations

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 15: Identifying 3rd Position Switch Location

Courtesy of NISSAN MOTOR CO., U.S.A.
