Control Valve Upper Body: Components

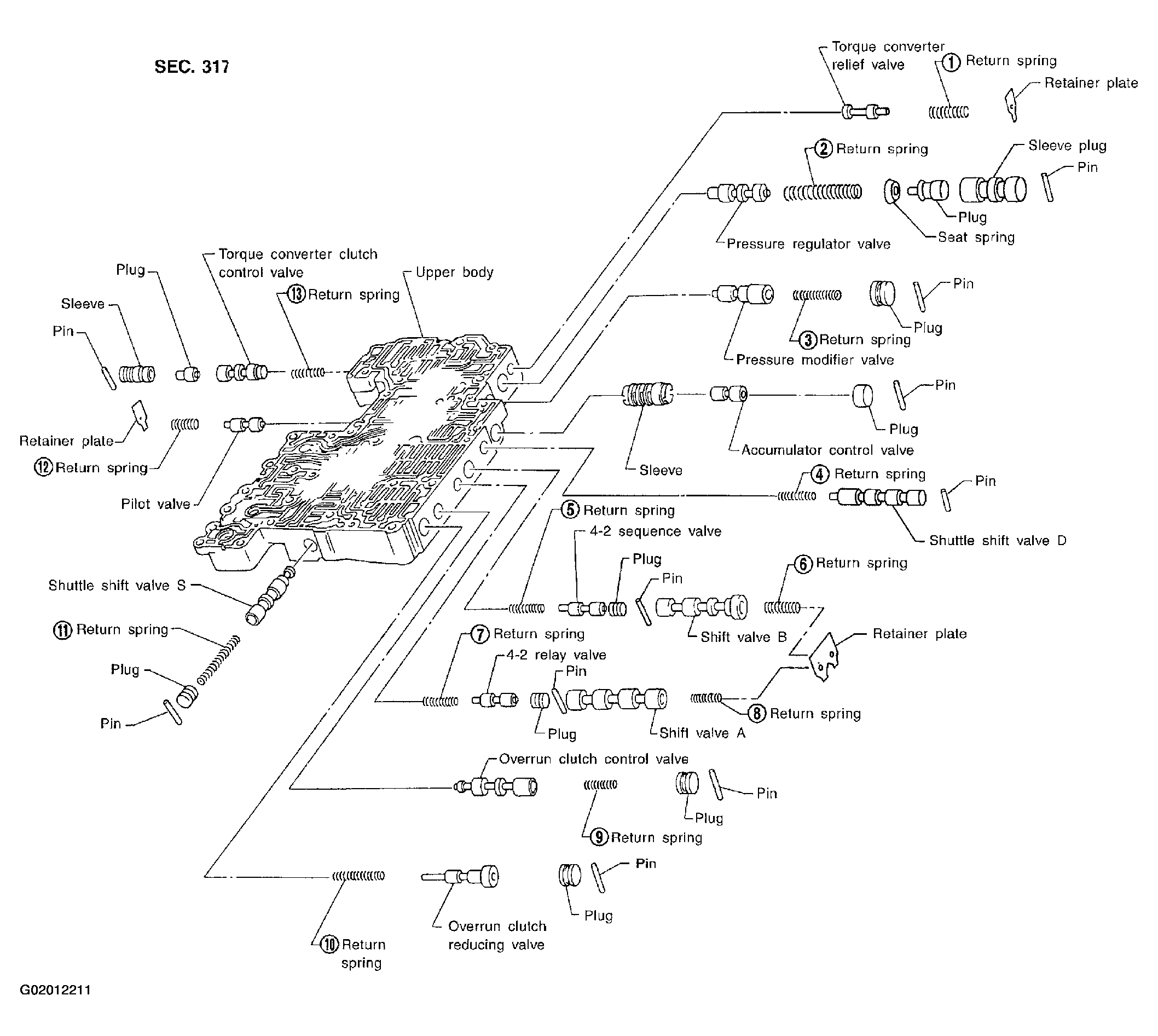

Fig 1: Identifying Control Valve Upper Body Components

Courtesy of NISSAN MOTOR CO., U.S.A.

Apply ATF to all components before their installation.

Numbers preceding valve springs correspond with those shown in SDS  on .
