Control Valve Assembly: Components

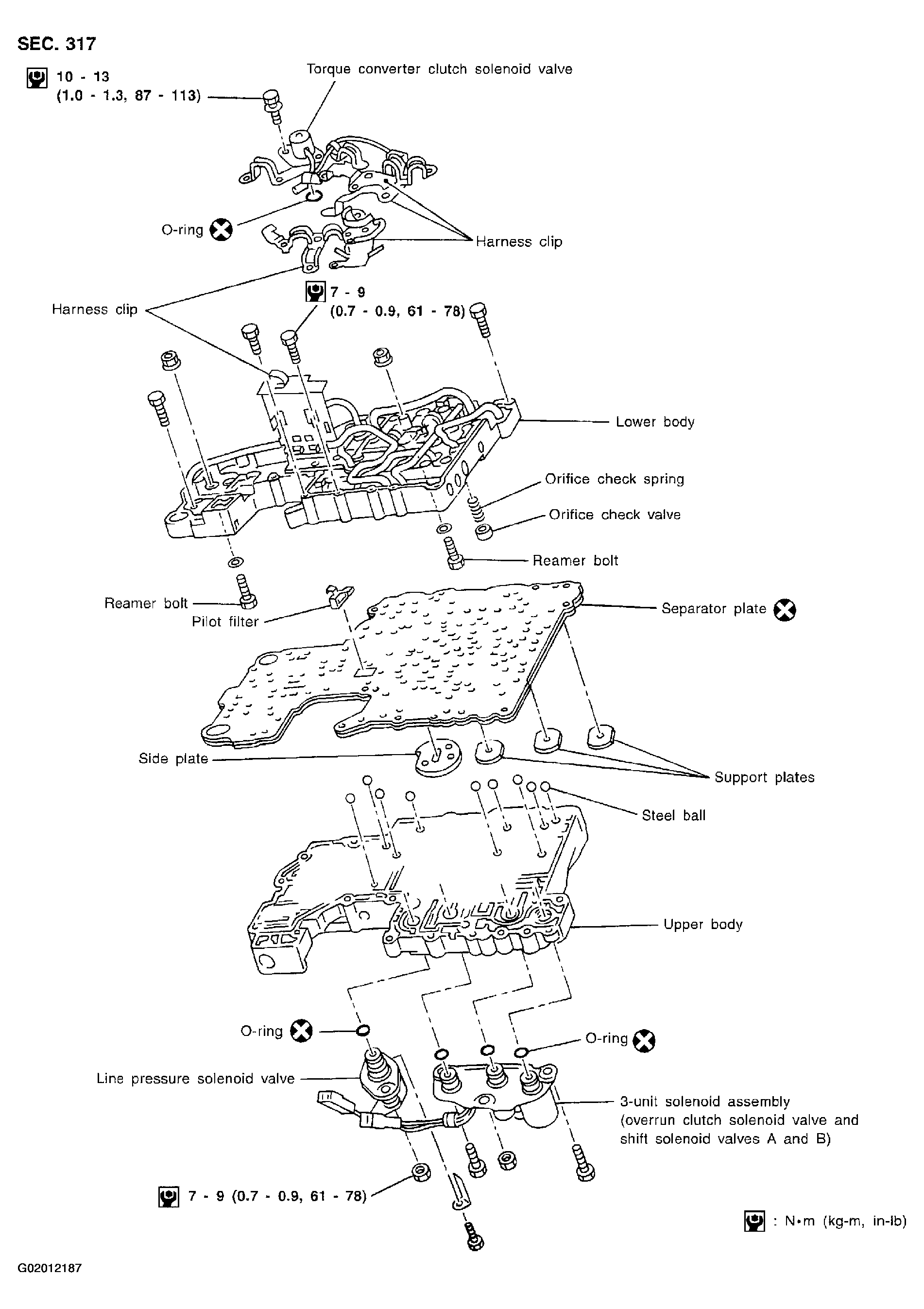

Fig 1: Identifying Control Valve Assembly Components
G02012187Courtesy of NISSAN MOTOR CO., U.S.A.
