Automatic Transmission: Overhaul: Components

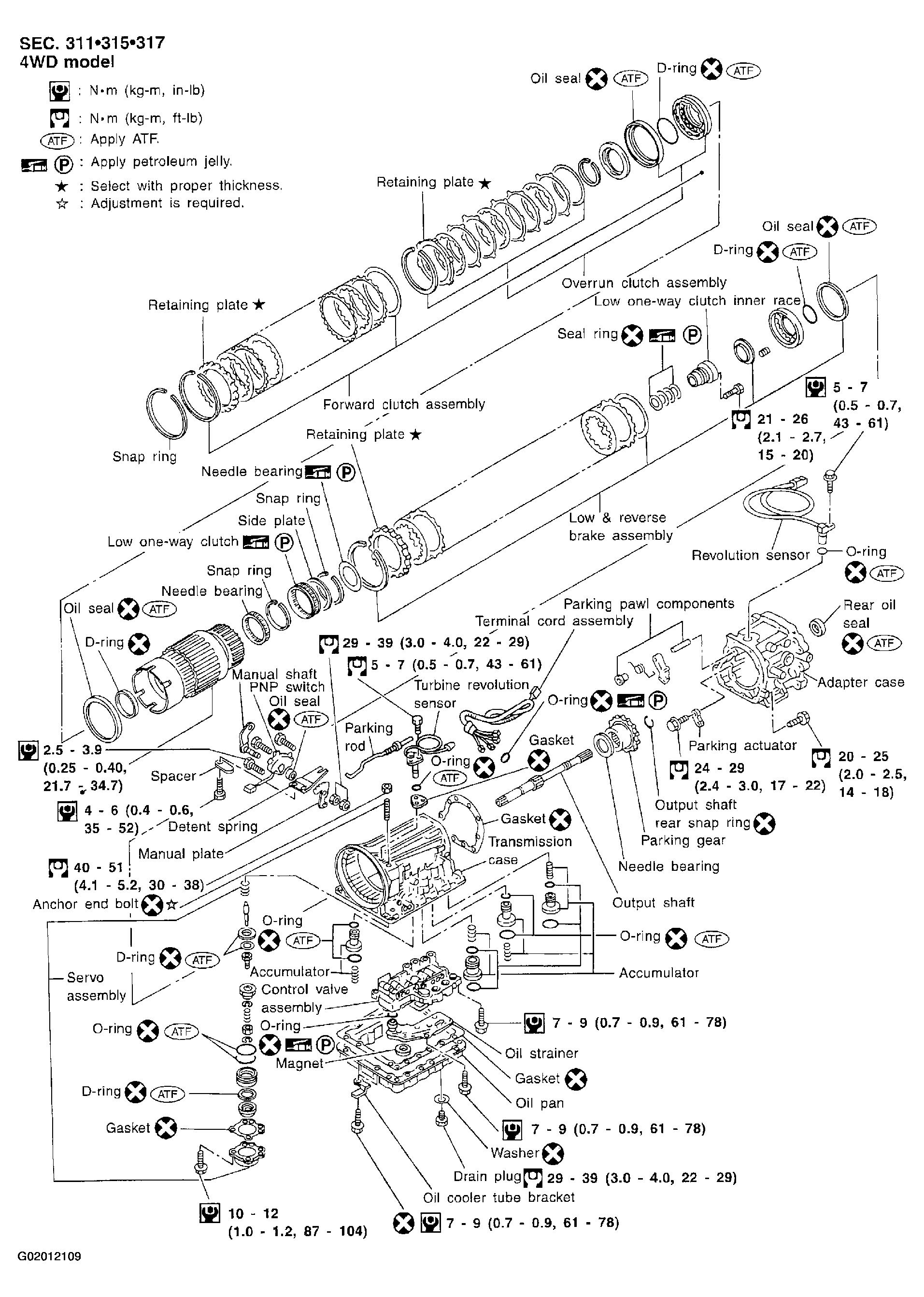

Fig 1: Overhaul Replacement Components With Torque Specifications (1 Of 3)

Courtesy of NISSAN MOTOR CO., U.S.A.

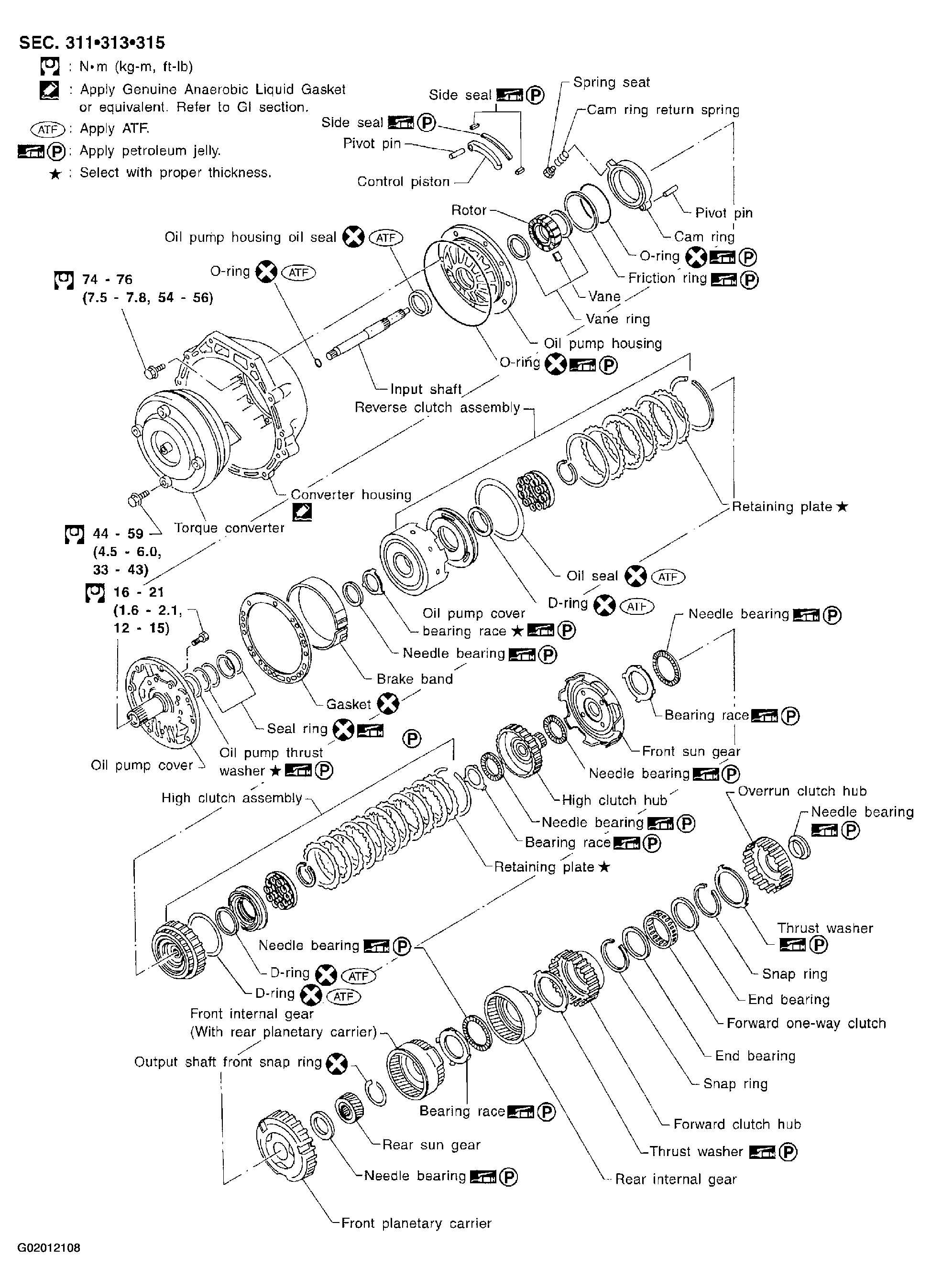

Fig 2: Overhaul Replacement Components With Torque Specifications (2 Of 3)

Courtesy of NISSAN MOTOR CO., U.S.A.

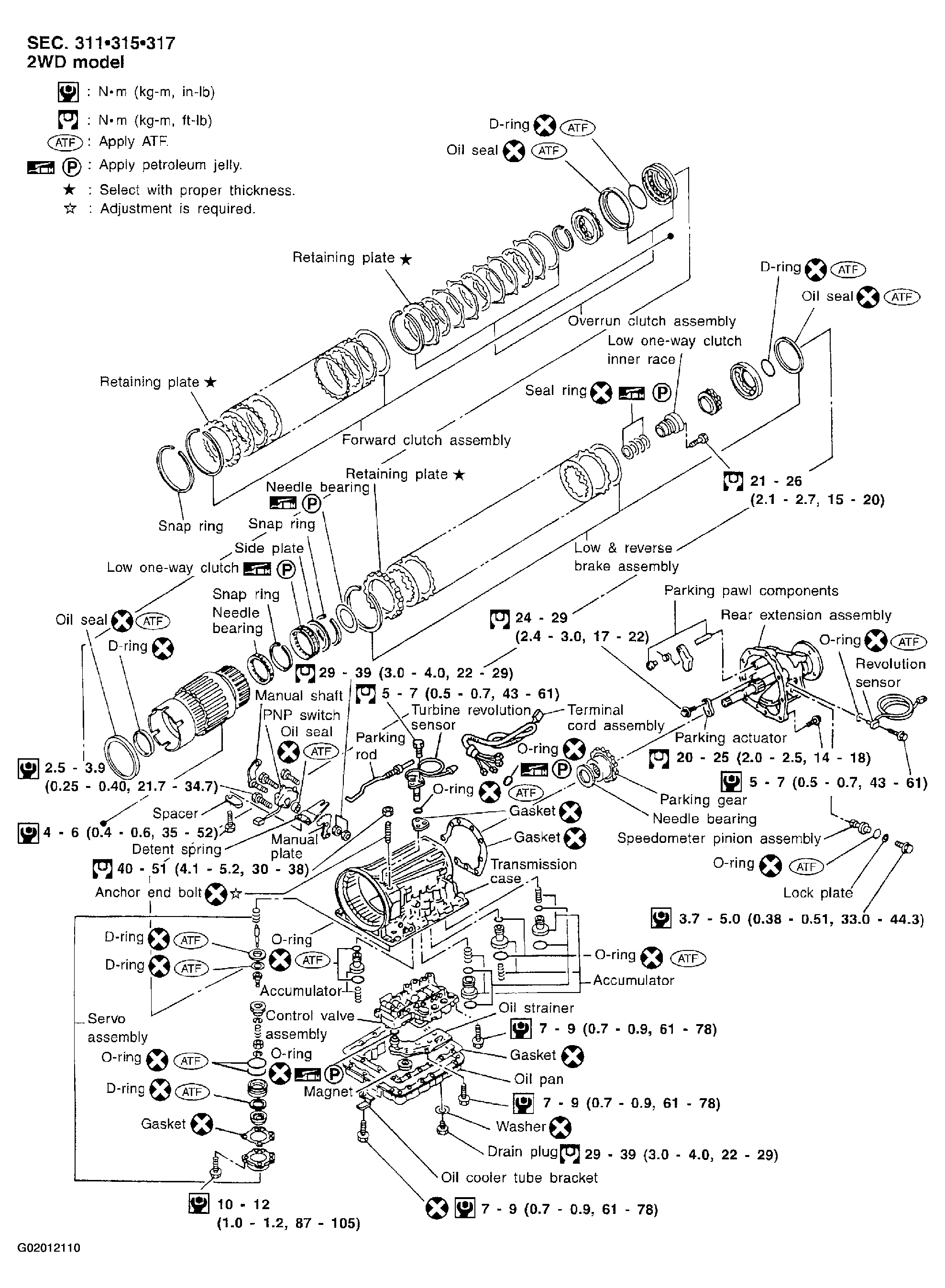

Fig 3: Overhaul Replacement Components With Torque Specifications (3 Of 3)

Courtesy of NISSAN MOTOR CO., U.S.A.
