Transmission
>>
Automatic Trans
>>
Automatic Transmission
>>
Overall System
>>
Cross-sectional View
Cross-sectional View

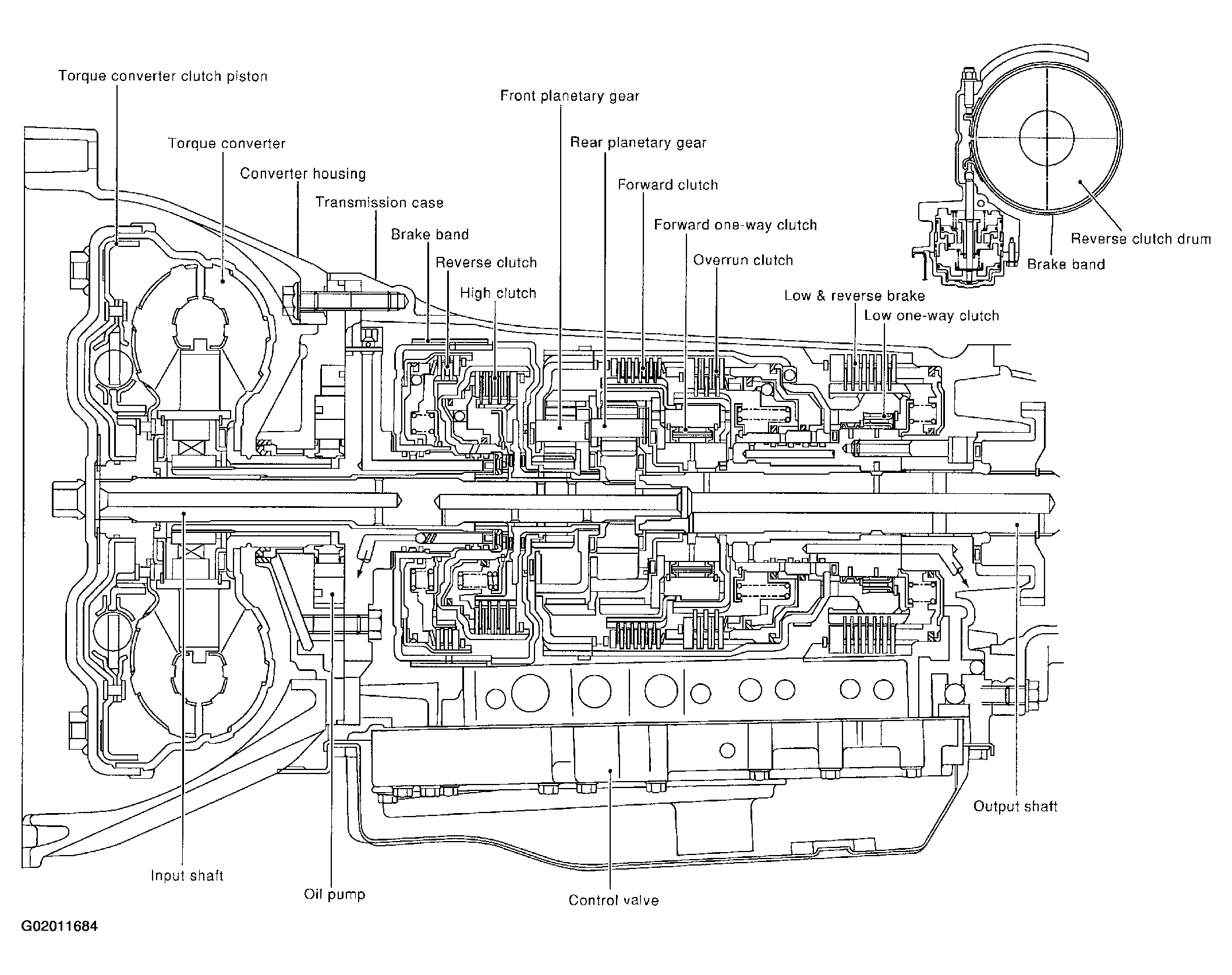

Fig 1: Cross-Sectional View Of Automatic Transmission System
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
