Key Interlock Cable: Installation

Set key interlock cable to steering lock assembly and install lock plate.
Clamp cable to steering column and fix to control cable with band.
Set selector lever to P position.

Fig 1: Setting Key Interlock Cable To Steering Lock Assembly And Installing Lock Plate
Courtesy of NISSAN MOTOR CO., U.S.A.
Insert interlock rod into adjuster holder.

Fig 2: Inserting Interlock Rod Into Adjuster Holder
Courtesy of NISSAN MOTOR CO., U.S.A.
Install casing cap to bracket.
Move slider in order to fix adjuster holder to interlock rod.

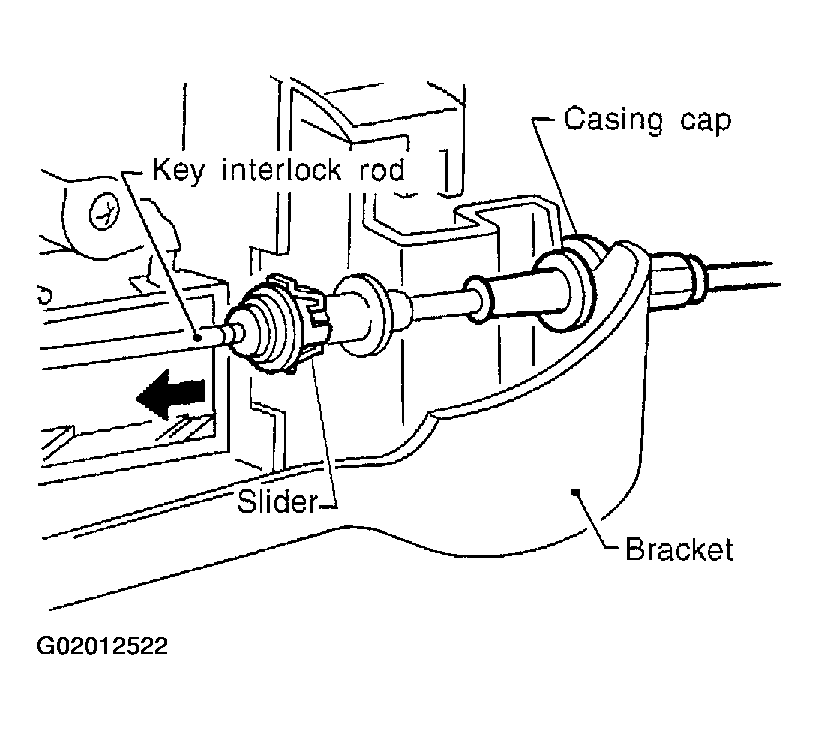

Fig 3: Fixing Adjuster Holder To Interlock Rod
Courtesy of NISSAN MOTOR CO., U.S.A.
