Trouble Diagnoses Work Flow

NOTE: For on board diagnosis, see ON BOARD DIAGNOSIS and for preliminary check, see PRELIMINARY CHECK .

For trouble diagnoses work flow, see Fig 1 .

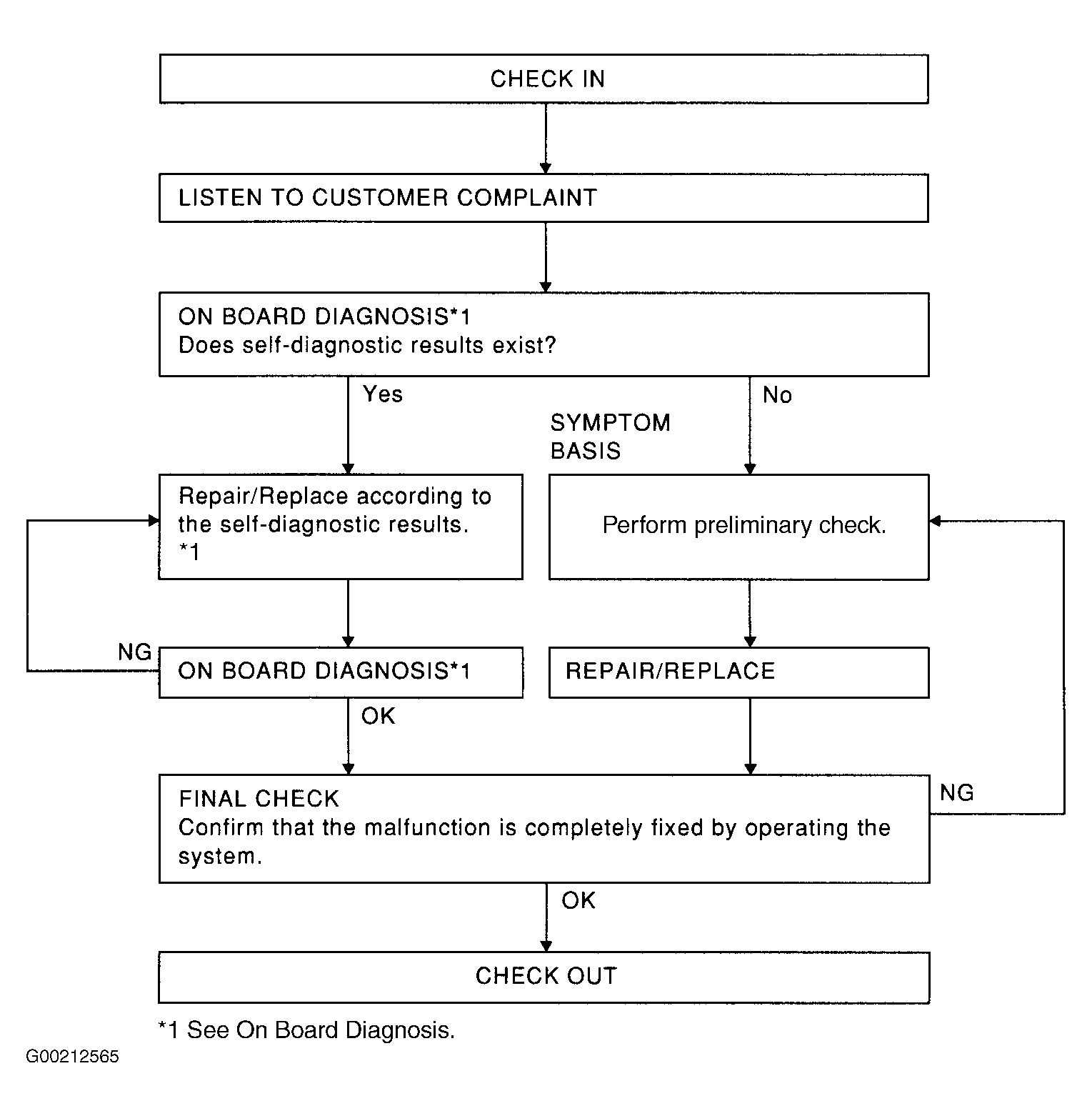

Fig 1: Identifying Trouble Diagnoses Work Flow

Courtesy of NISSAN MOTOR CO., U.S.A.
