Preliminary Check

NOTE: For symptom chart, see Figure in SYSTEM TESTS

For preliminary check, see Fig 1 .

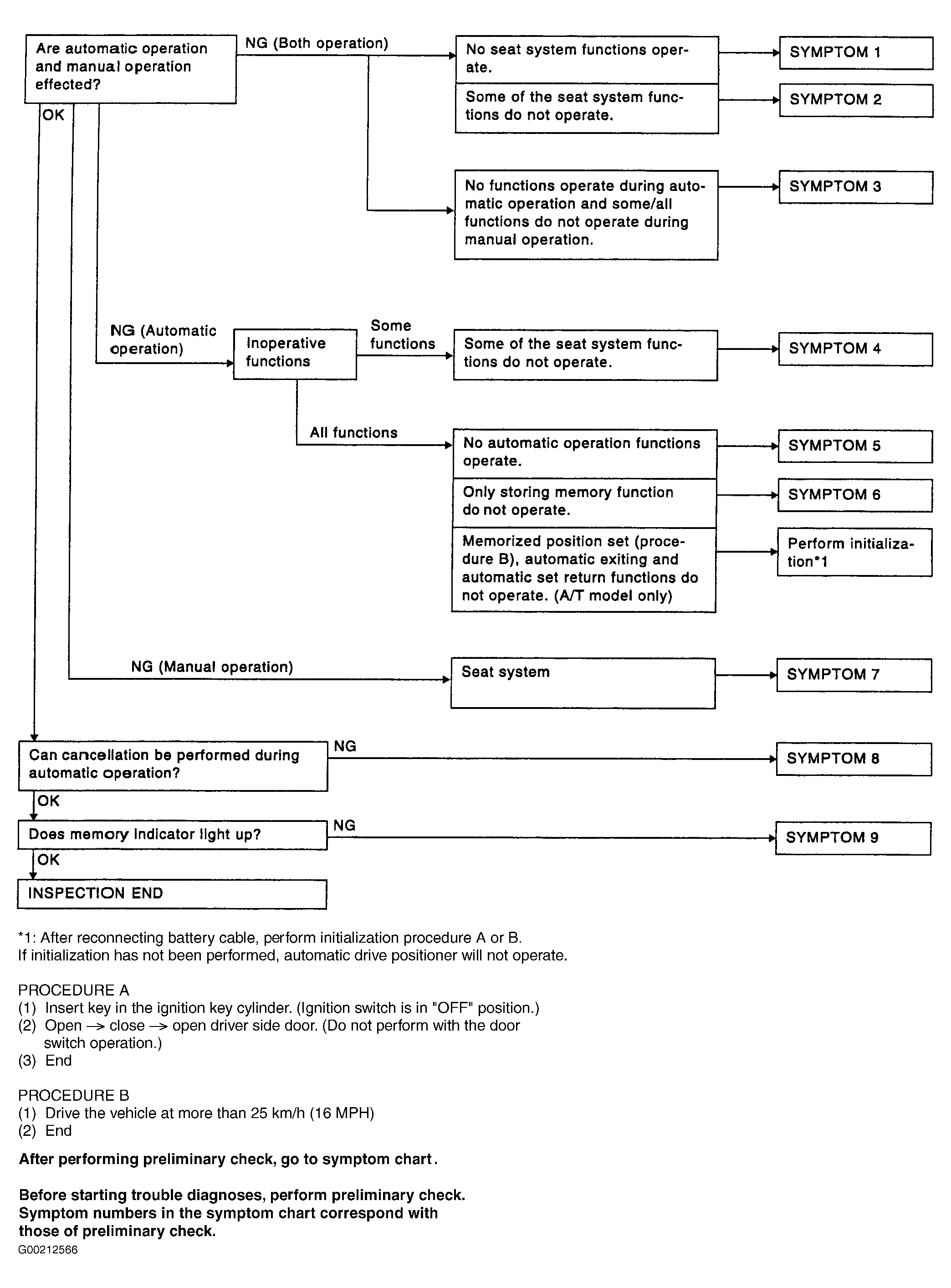

Fig 1: Identifying Preliminary Check

G00212566

Courtesy of NISSAN MOTOR CO., U.S.A.
