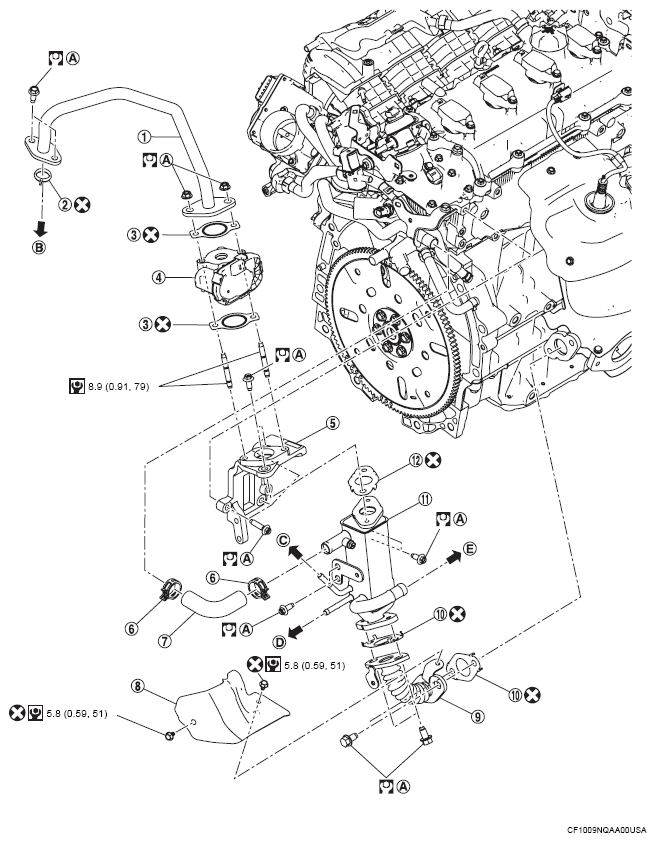

Exploded View
WARNING: This page is about a different car, the 2024 Mitsubishi Outlander. However, it is still accessible from the selected car via links, so may be relevant.
| (1) | EGR outlet tube |
| (2) | EGR outlet tube gasket |
| (3) | EGR volume control valve gasket |
| (4) | EGR volume control valve |
| (5) | EGR cooler bracket |
| (6) | Clamp |
| (7) | Water hose |
| (8) | EGR inlet tube heat insulator |
| (9) | EGR inlet tube |
| (10) | EGR inlet tube gasket |
| (11) | EGR cooler |
| (12) | EGR cooler gasket |
| (A) | Comply with the assembly procedure when tightening . Refer to REMOVAL AND INSTALLATION |
| (B) | To intake manifold. Refer to EXPLODED VIEW |
| (C) | To electric throttle control actuator |
| (D) | To water outlet To heater |
| : N.m (kg-m, ft-lb) | |
| : N.m (kg-m, in-lb) | |
| : Always replace after every disassembly . |
