Exploded View

WARNING: This page is about a different car, the 2024 Mitsubishi Outlander. However, it is still accessible from the selected car via links, so may be relevant.

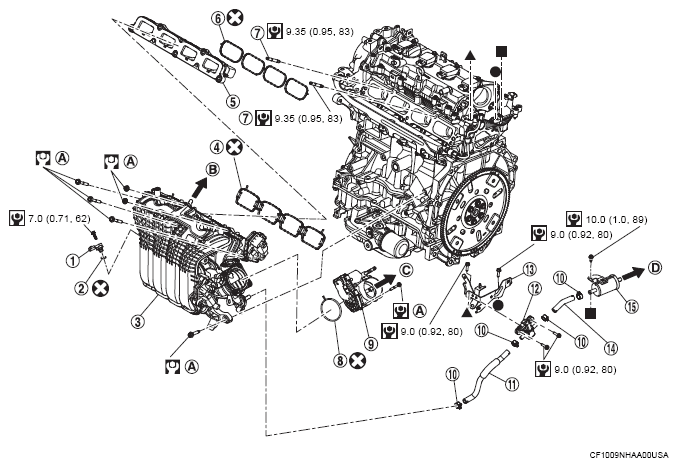

Fig 1: Removing/Installing Intake Manifold Components Location With Torque Specification

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

(1)	Manifold absolute pressure (MAP) sensor
(2)	O-ring
(3)	Intake manifold
(4)	Intake manifold gasket
(5)	Intake port insulator
(6)	Intake port insulator gasket
(7)	Stud bolt
(8)	Electric throttle control actuator gasket
(9)	Electric throttle control actuator
(10)	Clamp
(11)	EVAP canister purge volume control solenoid valve hose 1
(12)	EVAP canister purge volume control solenoid valve
(13)	EVAP canister purge volume control solenoid valve bracket
(14)	EVAP canister purge volume control solenoid valve hose 2
(15)	Vacuum delay valve assembly
(A)	Comply with the assembly procedure when tightening . Refer to REMOVAL AND INSTALLATION
(B)	To rocker cover. Refer to EXPLODED VIEW
(C)	To air duct. Refer to EXPLODED VIEW
(D)	To EVAP line (EVAP canister to EVAP canister purge volume control solenoid valve) HYDRAULIC LAYOUT
	: N.m (kg-m, ft-lb)
	: N.m (kg-m, in-lb)
	: Always replace after every disassembly .
	Indicates that the part is connected at points with same symbol in actual vehicle .
