Removal And Installation

Pre-removal and post-installation operation

Instrument Panel Cover Lower Removal and Installation (Refer to REMOVAL AND INSTALLATION ).

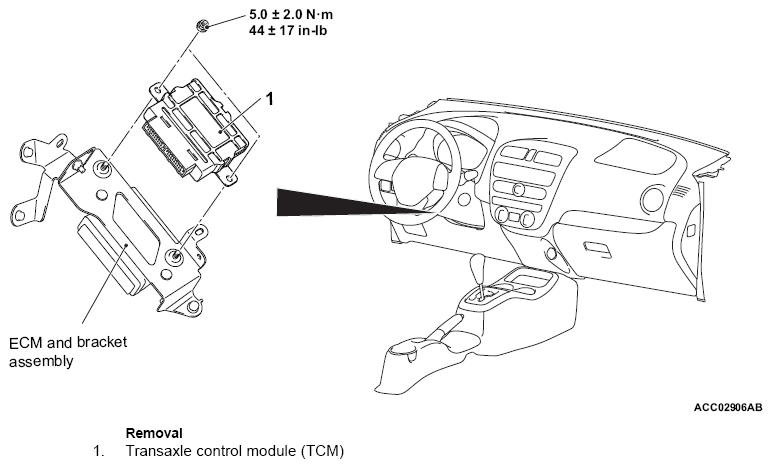

Fig 1: Removing/Installing Transaxle Control Module Components With Torque Specifications
G13779335Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
