Removal And Installation: Notes

WARNING: This page is about a different car, the 2018 Mitsubishi Outlander. However, it is still accessible from the selected car via links, so may be relevant.

Pre-removal Operation

Battery and Battery Tray Removal (Refer to REMOVAL AND INSTALLATION ).
Air Cleaner Assembly Removal (Refer to AIR CLEANER ) <2.4 L Engine>.
Air Cleaner Assembly Removal (Refer to AIR CLEANER ) <3.0 L Engine>.
Engine Control Module Removal (Refer to ENGINE CONTROL MODULE (ECM) ) <2.4 L Engine>.
Engine Control Module Removal (Refer to ENGINE CONTROL MODULE (ECM) ) <3.0 L Engine>.

Post-installation Operation

Engine Control Module Installation (Refer to ENGINE CONTROL MODULE (ECM) ) <2.4 L Engine>.
Engine Control Module Installation (Refer to ENGINE CONTROL MODULE (ECM) ) <3.0 L Engine>.
Air Cleaner Assembly Installation (Refer to AIR CLEANER ) <2.4 L Engine>.
Air Cleaner Assembly Installation (Refer to AIR CLEANER ) <3.0 L Engine>.
Battery and Battery Tray Installation (Refer to REMOVAL AND INSTALLATION ).

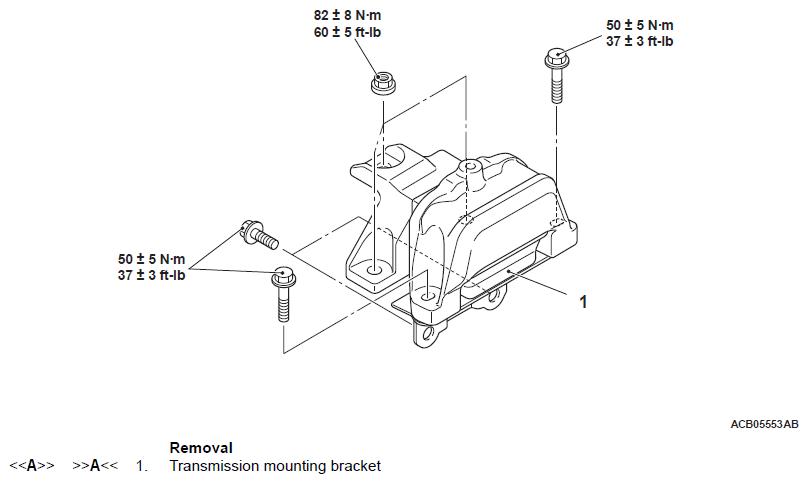

Fig 1: Removing/Installing Transaxle Mounting With Torque Specification

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
