Removal And Installation

WARNING: This page is about a different car, the 2018 Mitsubishi Outlander. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION:

When the battery current sensor and the engine control module are replaced, make the battery current sensor learn the neutral point by using the scan tool. (Refer to BATTERY CURRENT SENSOR CALIBRATION <2.4L ENGINE> .)

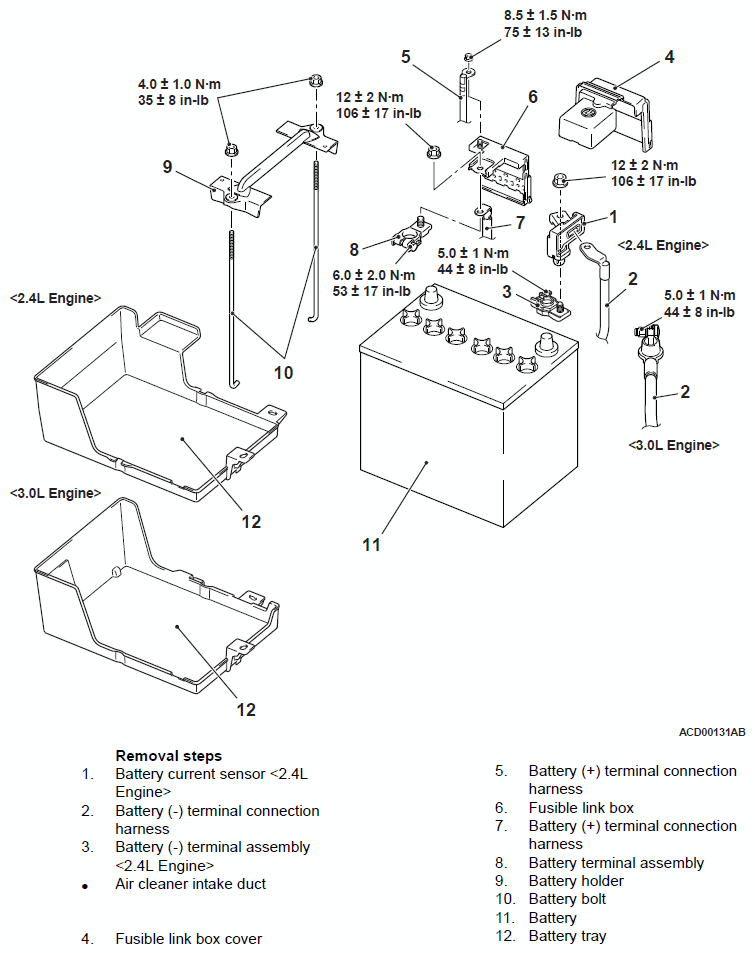

Fig 1: Removing/Installing Battery Components With Torque Specification

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
