Removal And Installation: Notes

WARNING: This page is about a different variant/trim than selected.

Pre-removal operation

Engine Room Under Cover A and Side Cover Removal.
Transmission Fluid Draining (Refer to TRANSMISSION FLUID CHANGE ).
Engine Coolant Draining (Refer to ON-VEHICLE SERVICE, ENGINE COOLANT REPLACEMENT ).
Air Cleaner Bracket Removal (Refer to AIR CLEANER ).
Battery and Battery Tray Removal.
ECM Removal (Refer to ENGINE CONTROL MODULE (ECM) ).
Driveshaft Removal (Refer to DRIVESHAFT ASSEMBLY ).

Post-installation operation

Driveshaft Installation (Refer to DRIVESHAFT ASSEMBLY ).
ECM installation (Refer to ENGINE CONTROL MODULE (ECM) ).
Battery and battery tray installation.
Air Cleaner Assembly Installation (Refer to AIR CLEANER ).
Engine Coolant Refilling (Refer to On-vehicle Service, Engine Coolant Replacement ).
Transmission Fluid Refilling (Refer to TRANSMISSION FLUID CHANGE ).
Engine Room Under Cover A and Side Cover Installation.

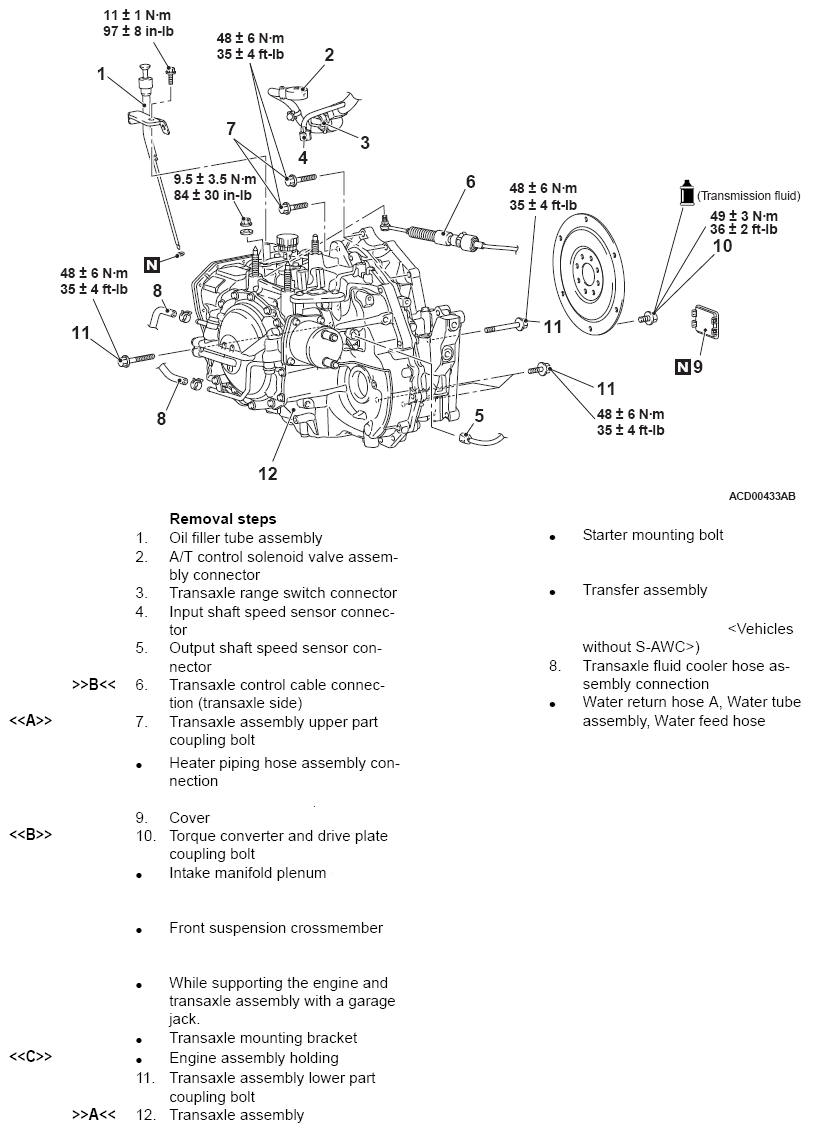

Fig 1: Removing/Installing Transaxle Assembly Components With Torque Specifications

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tools:
