Removal And Installation: Notes

Post-installation Operation

• Door Inside Handle Knob Play Check (Refer to DOOR INSIDE HANDLE CHECK ).
• Learning Procedures of Power Window Fully Closed Position (Refer to POWER WINDOW TIMER FUNCTION CHECK ). <Driver's door>

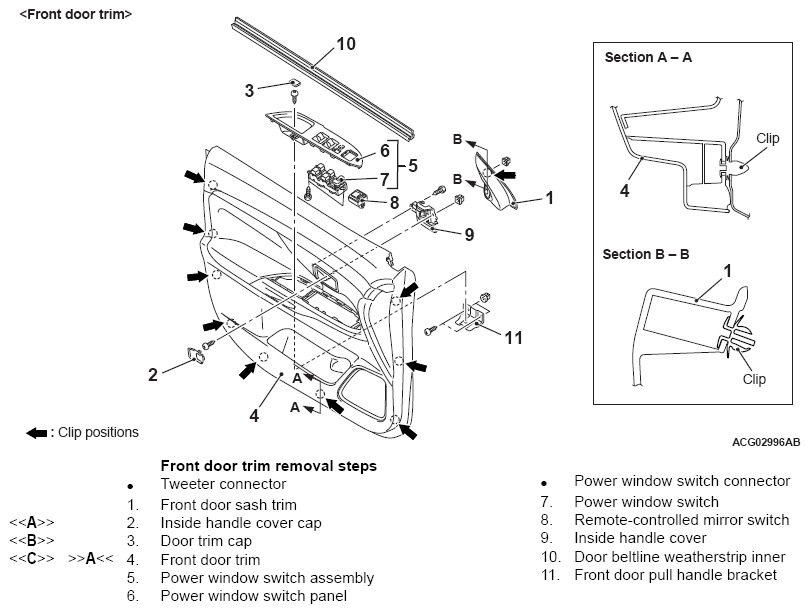

Fig 1: Removing/Installing Front Door Trim Components

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

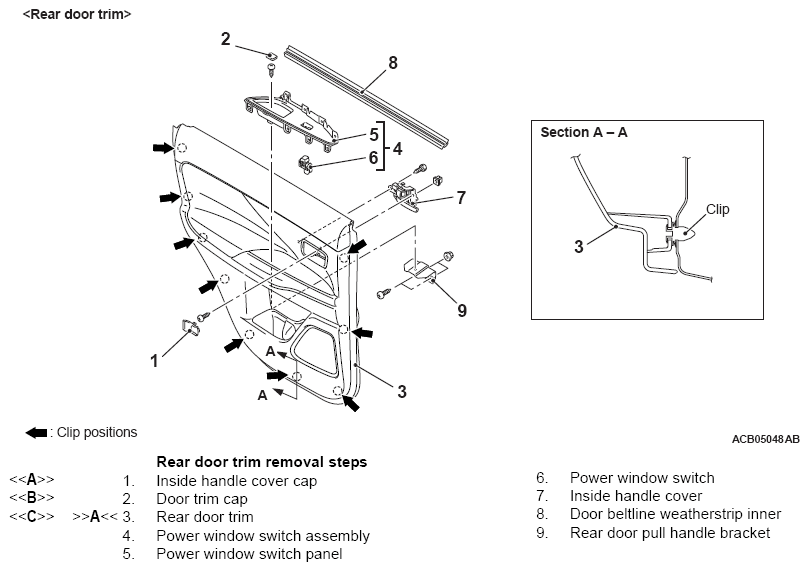

Fig 2: Removing/Installing Rear Door Trim Components

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
