Power Window Timer Function Check

Check that the power window timer works as described below. If it does not work, perform troubleshooting (Refer to TROUBLE SYMPTOM CHART <POWER WINDOW> ).

• Close the doors and turn the ignition switch to the LOCK (OFF) position. Check that the power window operates for 30 seconds.
• While the timer is on, check that it is cancelled when the driver's or front passenger's door is opened.

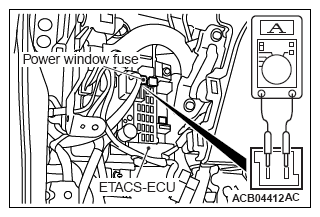

Fig 1: Checking Power Window Operating Current

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
