Disassembly And Assembly: Notes

WARNING: This page is about a different variant/trim than selected.
CAUTION: Outboard joint assembly cannot be disassembled.

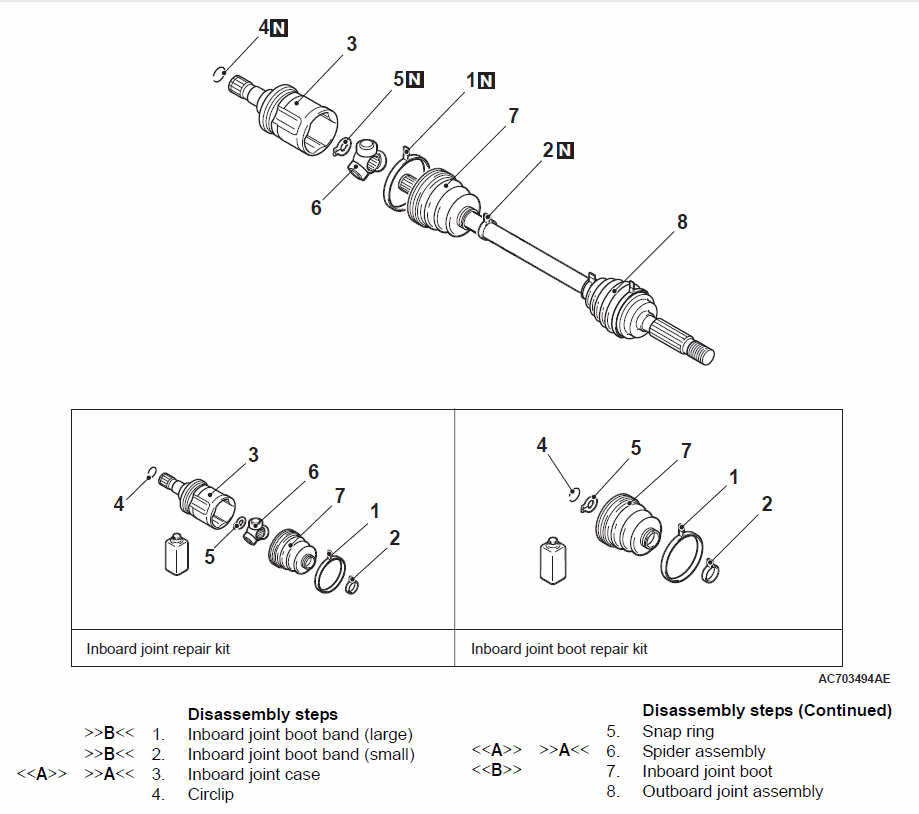

Fig 1: Disassembling/Assembling Driveshaft Assembly Components
G00557978Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
