Inspection Procedure 5: Keyless entry system does not work: Notes

WARNING: This page is about a different variant/trim than selected.

CAUTION: Before replacing the ECU, ensure that the power supply circuit, the ground circuit and the communication circuit are normal.

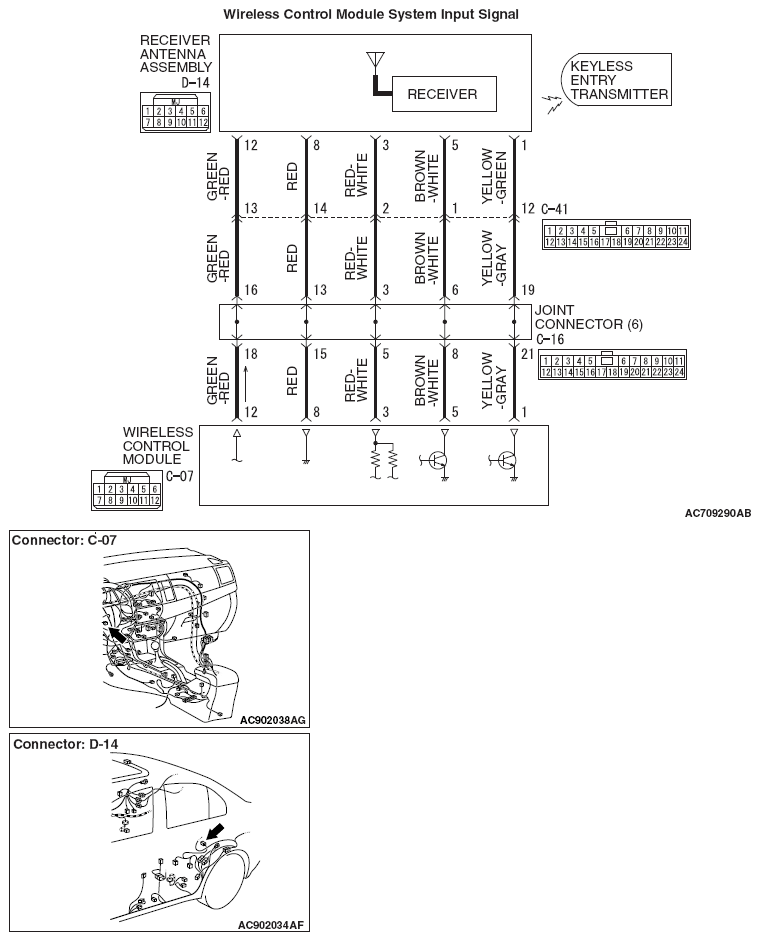

Fig 1: Wireless Control Module System Input Signal Chart

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
