Disassembly And Reassembly: Notes

WARNING: This page is about a different car, the 2005 Mitsubishi Montero. However, it is still accessible from the selected car via links, so may be relevant.

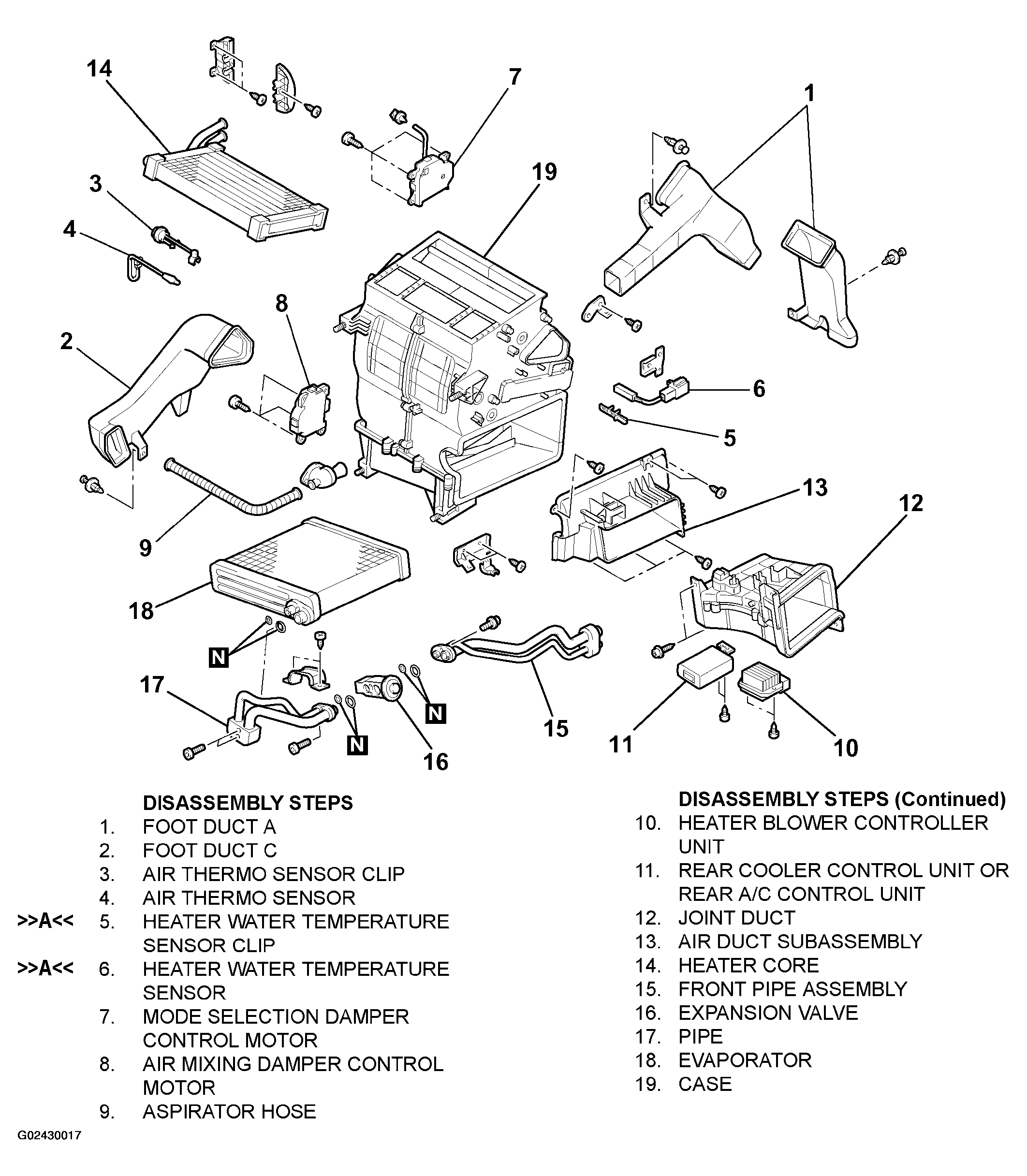

Fig 1: Removing/Installing Heater Unit
G02430017Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
