Blower Controller
WARNING: This page is about a different car, the 2005 Mitsubishi Montero. However, it is still accessible from the selected car via links, so may be relevant.

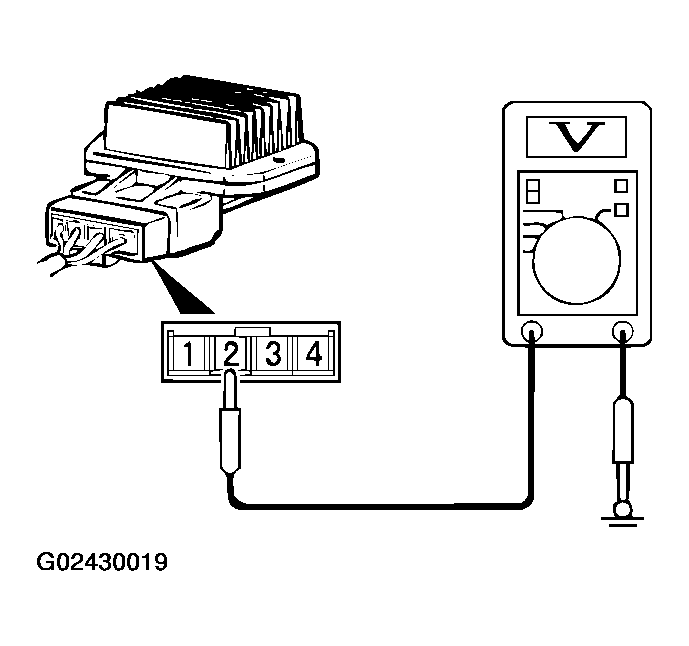

When the connector is connected and the ignition switch is turned ON, the voltage at terminal 2 should be as follows:
BLOWER CONTROLLER CHECK
| BLOWER SWITCH POSITION |
VOLTAGE AT TERMINAL No. 2 V |
| LOW SPEED |
4.0 |
| MEDIUM SPEED |
7.9 |
| HIGH SPEED |
13.7 |
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
