Mode Selection Damper Control Motor Check

WARNING: This page is about a different car, the 2005 Mitsubishi Montero. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: Do not apply battery voltage when the damper is in the FACE or DEF position.

Check the mode selection damper control motor by the following procedures.

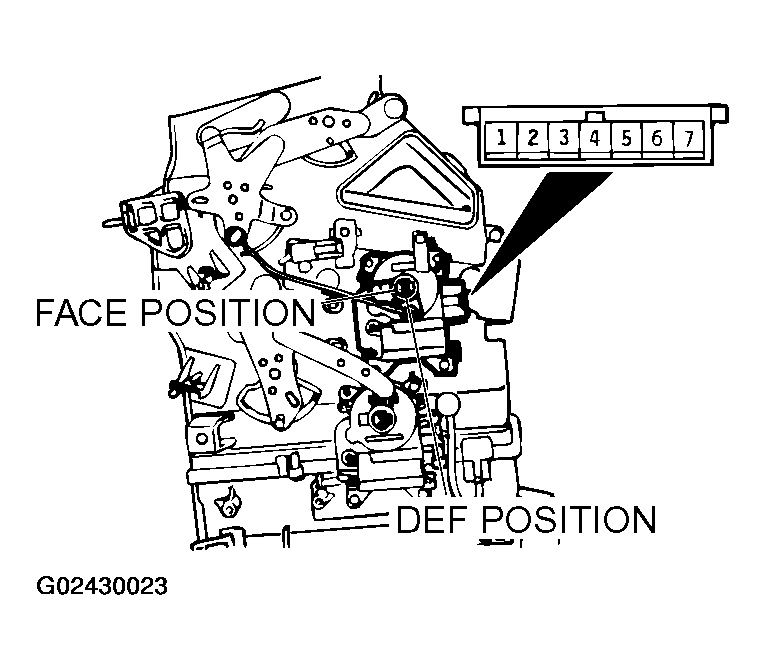

Fig 1: Checking Mode Selection Damper Control Motor

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

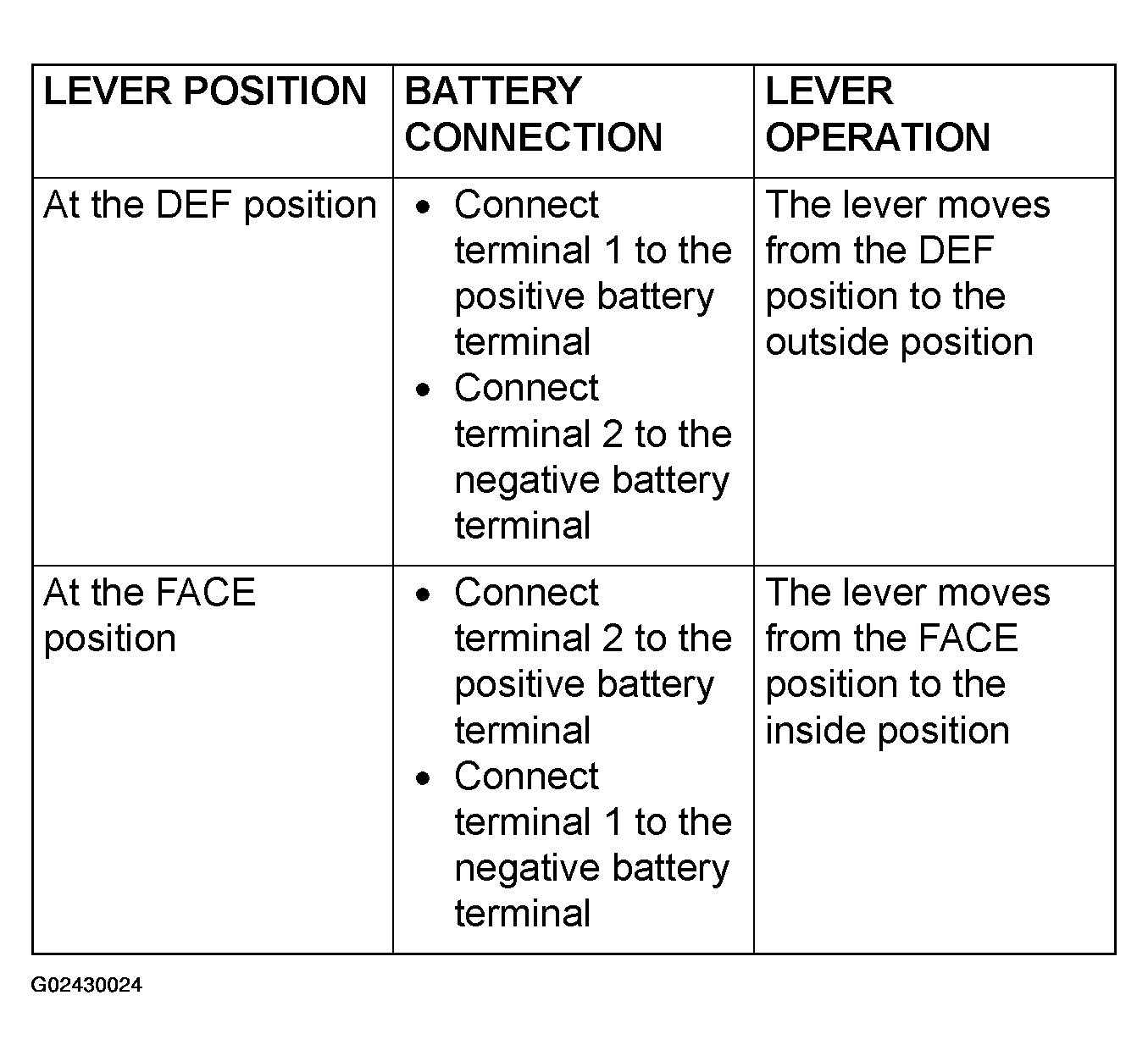

Fig 2: Lever Operation Chart

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
