Temperature Adjustment Switch Continuity Check

WARNING: This page is about a different car, the 2005 Mitsubishi Montero. However, it is still accessible from the selected car via links, so may be relevant.

Follow the table below to check the temperature adjustment switch for continuity.

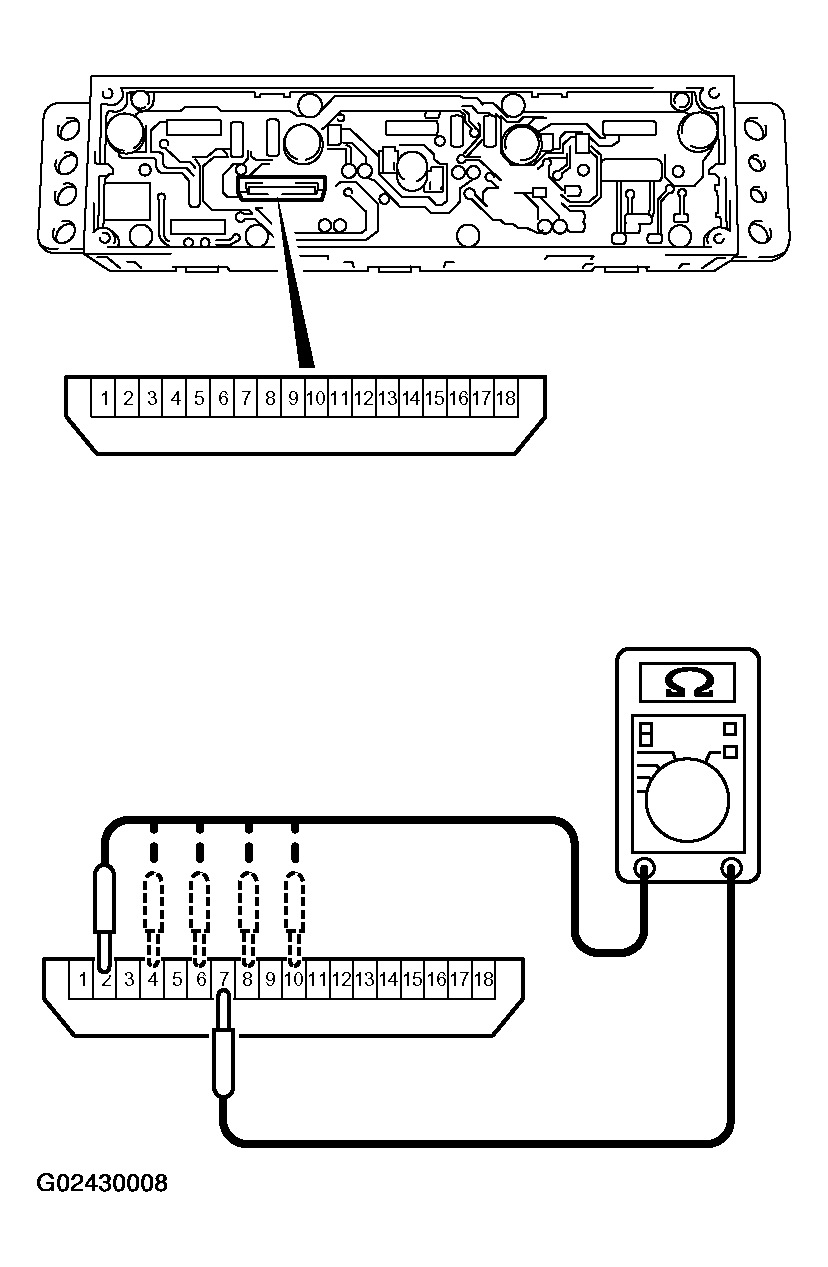

Fig 1: Checking Temperature Switch Continuity

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

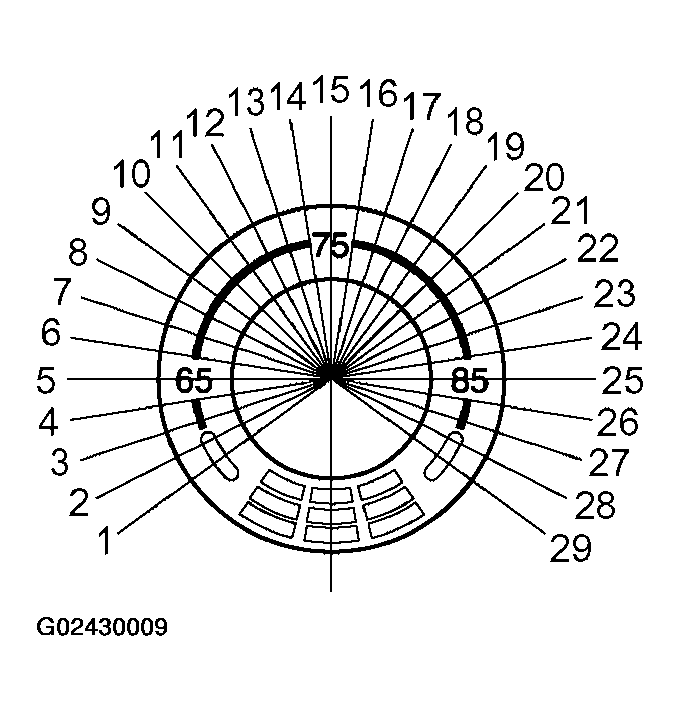

Fig 2: Identifying Temperature Adjustment Switch

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

TEMPERATURE ADJUSTMENT SWITCH CONTINUITY CHECK

SWITCH POSITION	TESTER CONNECTION	SPECIFIED CONDITION
1	7 - 10	Less than 2 ohms
2	7 - 8, 7 - 10	Less than 2 ohms
3	7 - 8	Less than 2 ohms
4	6 - 7, 7 - 8	Less than 2 ohms
5	6 - 7, 7 - 8, 7 - 10	Less than 2 ohms
6	6 - 7, 7 - 10	Less than 2 ohms
7	6 - 7	Less than 2 ohms
8	4 - 7, 6 - 7	Less than 2 ohms
9	4 - 7, 6 - 7, 7 - 10	Less than 2 ohms
10	4 - 7, 6 - 7, 7 - 8, 7 - 10	Less than 2 ohms
11	4 - 7, 6 - 7, 7 - 8	Less than 2 ohms
12	4 - 7, 7 - 8	Less than 2 ohms
13	4 - 7, 7 - 8, 7 - 10	Less than 2 ohms
14	4 - 7, 7 - 10	Less than 2 ohms
15	4 - 7	Less than 2 ohms
16	2 - 7, 4 - 7	Less than 2 ohms
17	2 - 7, 4 - 7, 7 - 10	Less than 2 ohms
18	2 - 7, 4 - 7, 7 - 8, 7 - 10	Less than 2 ohms
19	2 - 7, 4 - 7, 7 - 8	Less than 2 ohms
20	2 - 7, 4 - 7, 6 - 7, 7 - 8	Less than 2 ohms
21	2 - 7, 4 - 7, 6 - 7, 7 - 8, 7 - 10	Less than 2 ohms
22	2 - 7, 4 - 7, 6 - 7, 7 - 10	Less than 2 ohms
23	2 - 7, 4 - 7, 6 - 7	Less than 2 ohms
24	2 - 7, 6 - 7	Less than 2 ohms
25	2 - 7, 6 - 7, 7 - 10	Less than 2 ohms
26	2 - 7, 6 - 7, 7 - 8, 7 - 10	Less than 2 ohms
27	2 - 7, 6 - 7, 7 - 8	Less than 2 ohms
28	2 - 7, 7 - 8	Less than 2 ohms
29	2 - 7, 7 - 8, 7 - 10	Less than 2 ohms
