Rear Window Defogger Switch

WARNING: This page is about a different car, the 2005 Mitsubishi Montero. However, it is still accessible from the selected car via links, so may be relevant.

There should be continuity between terminals 6 and 13 while the switch is pushed.

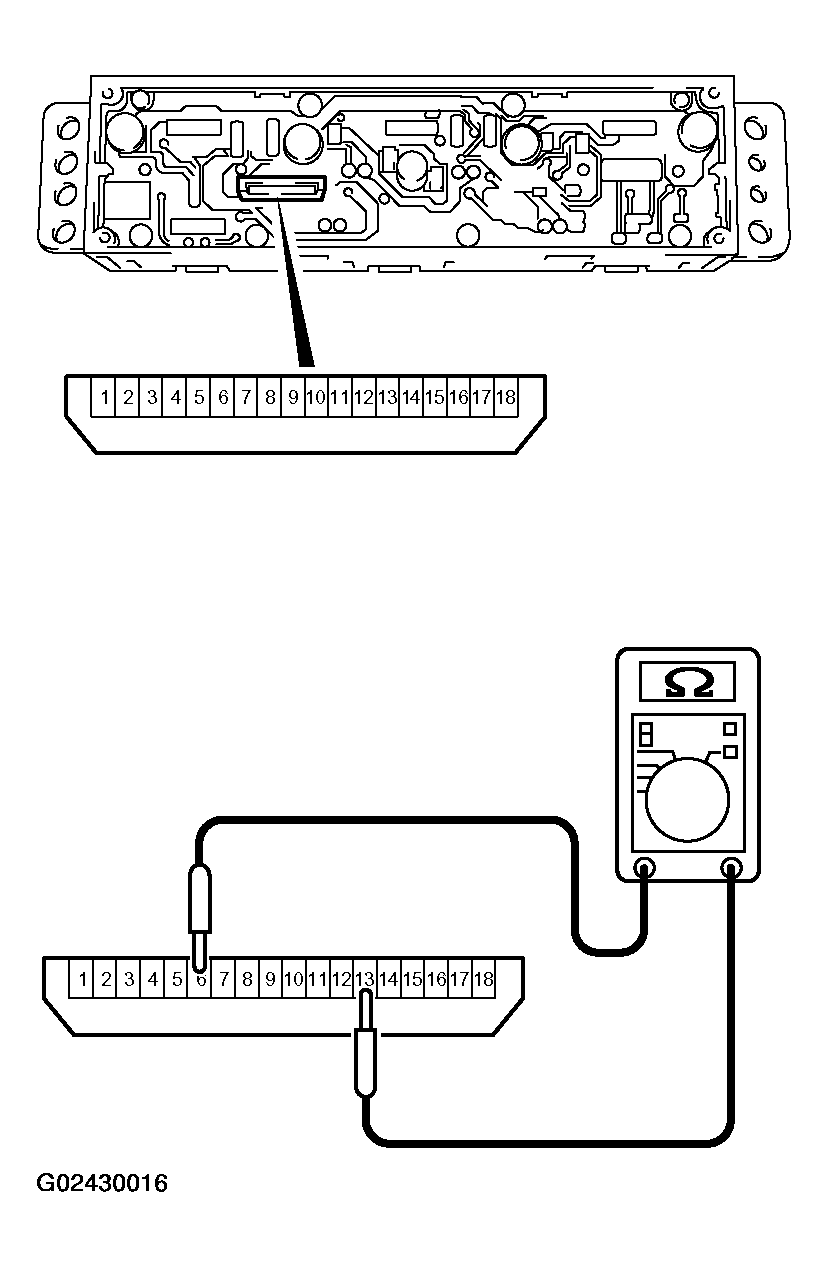

Fig 1: Checking Continuity Between Terminals 6 And 13
G02430016Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
