Blower Switch
WARNING: This page is about a different car, the 2005 Mitsubishi Montero. However, it is still accessible from the selected car via links, so may be relevant.

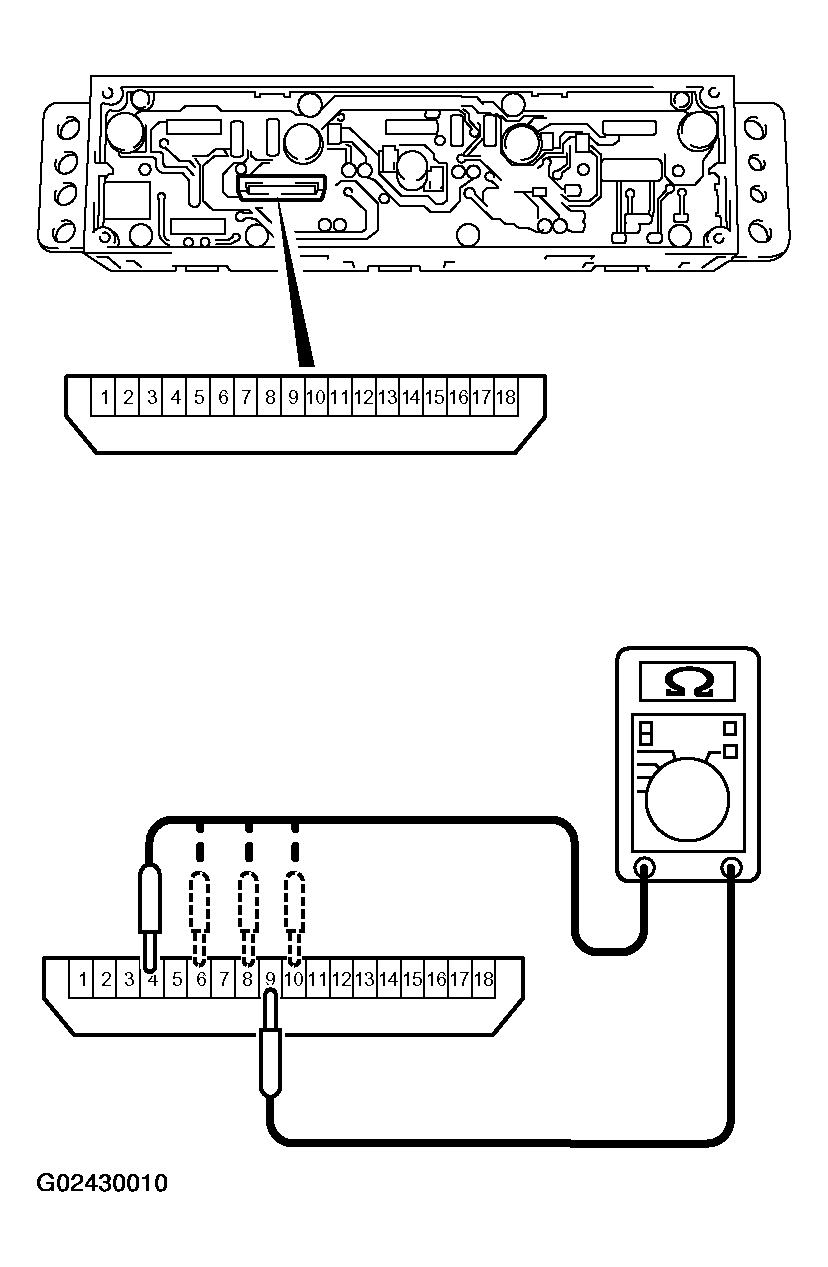

Follow the table below to check the blower switch for continuity.
BLOWER SWITCH CONTINUITY CHECK

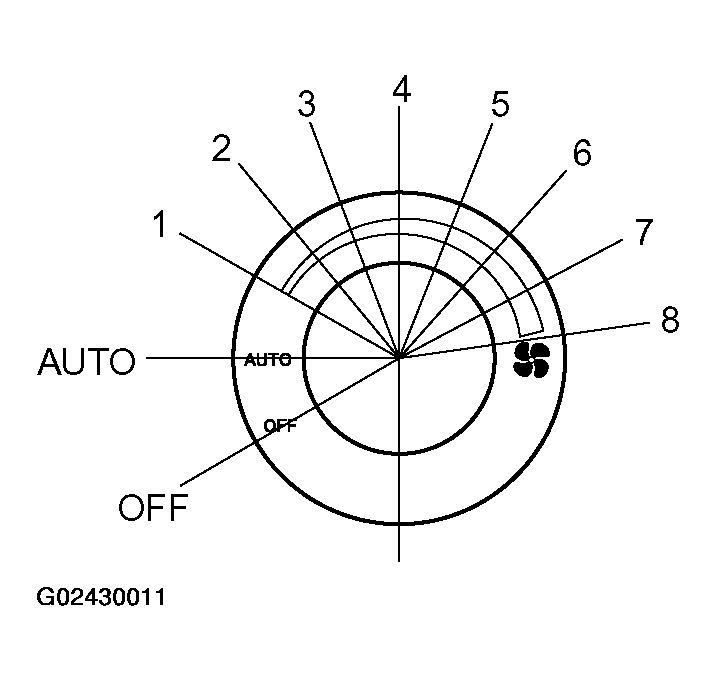

| SWITCH POSITION | TESTER CONNECTION | SPECIFIED CONDITION |
|---|---|---|
| OFF | 9 - 10 | Less than 2 ohms |
| AUTO | 8 - 9, 9 - 10 | Less than 2 ohms |
| 1 | 8 - 9 | Less than 2 ohms |
| 2 | 6 - 9, 8 - 9 | Less than 2 ohms |
| 3 | 6 - 9, 8 - 9, 9 - 10 | Less than 2 ohms |
| 4 | 6 - 9, 9 - 10 | Less than 2 ohms |
| 5 | 6 - 9 | Open circuit |
| 6 | 4 - 9, 6 - 9 | Less than 2 ohms |
| 7 | 4 - 9, 6 - 9, 9 - 10 | Less than 2 ohms |
| 8 | 4 - 9, 6 - 9, 8 - 9, 9 - 10 | Less than 2 ohms |
