A/C Switch

WARNING: This page is about a different car, the 2005 Mitsubishi Montero. However, it is still accessible from the selected car via links, so may be relevant.

There should be continuity between terminals 10 and 13 while the switch is pushed.

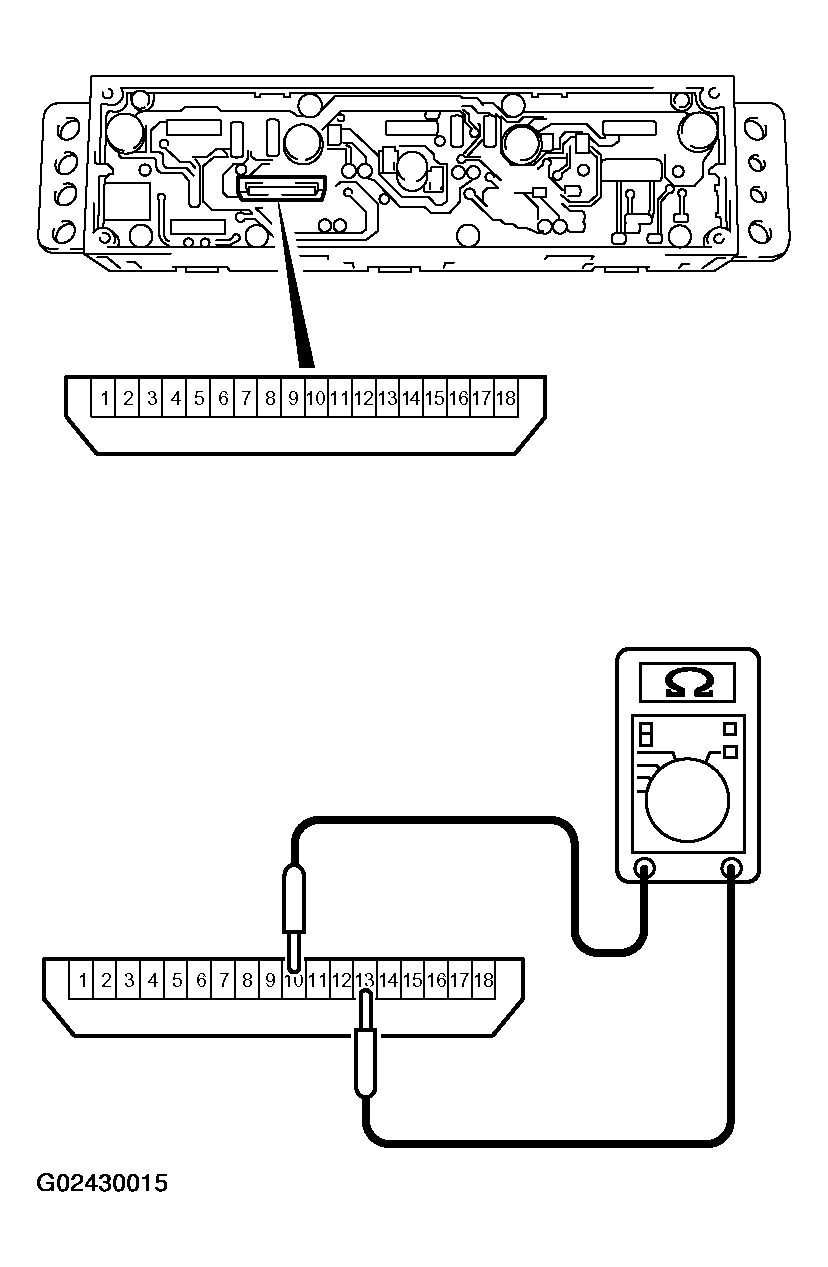

Fig 1: Checking Continuity Between Terminals 10 And 13
G02430015Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
