Special Tool

WARNING: This page is about a different car, the 2005 Mitsubishi Endeavor. However, it is still accessible from the selected car via links, so may be relevant.

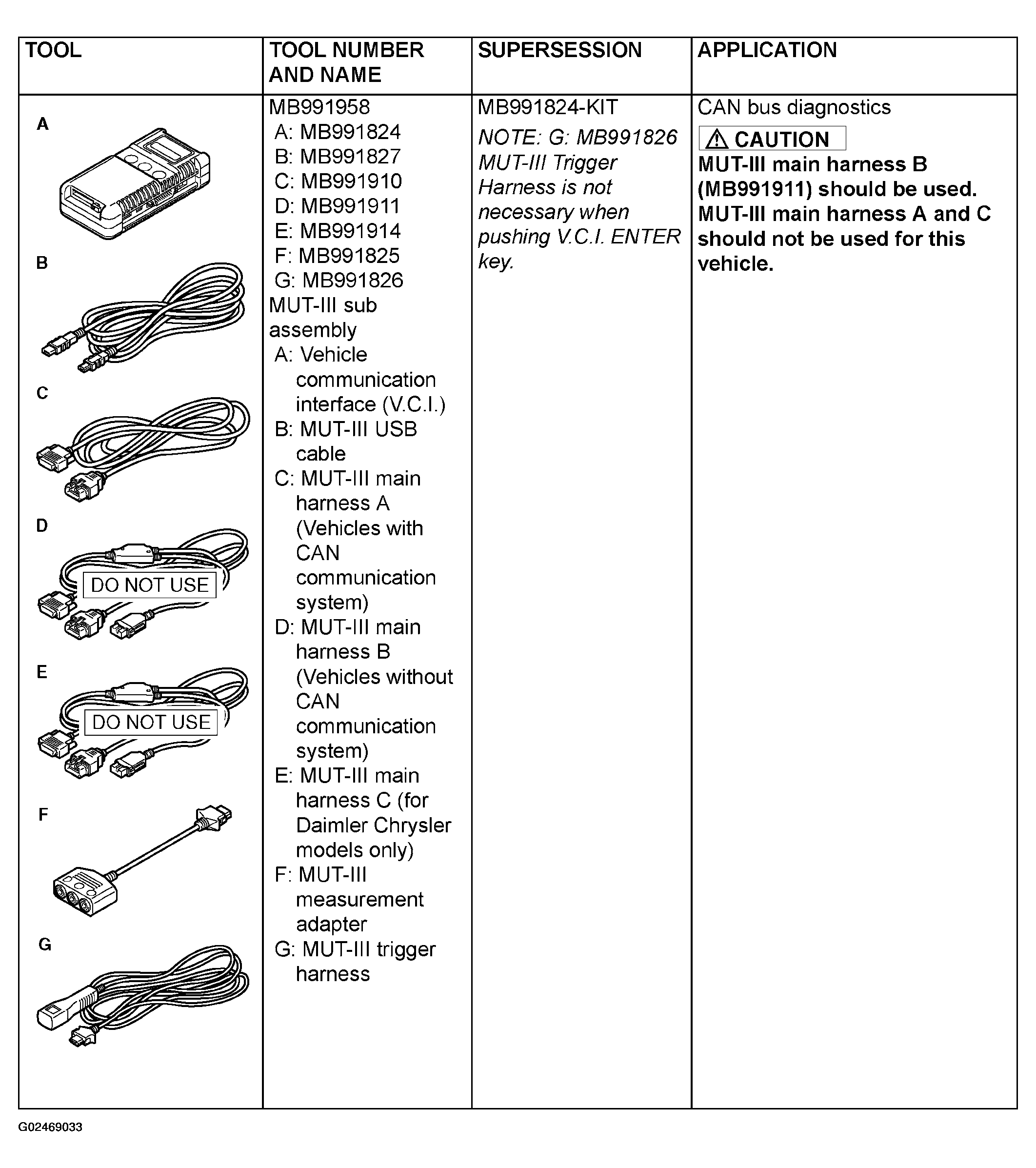

Fig 1: Special Tool Chart (1 Of 2)
G02469033Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

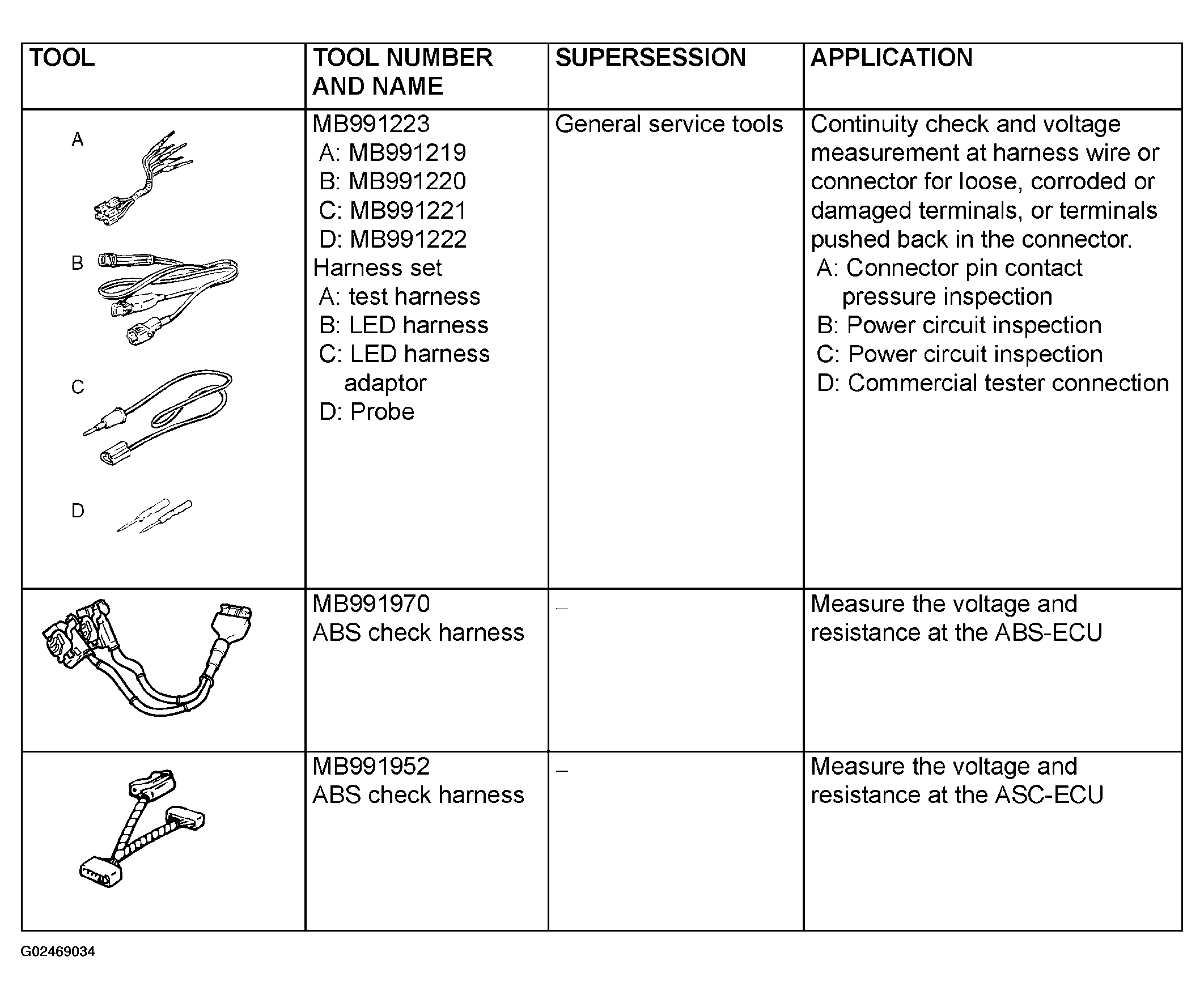

Fig 2: Special Tool Chart (2 Of 2)
G02469034Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
