How To Disconnect Joint Connector

WARNING: This page is about a different car, the 2005 Mitsubishi Endeavor. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the combination meter (Refer to COMBINATION METER ).
  2. Cut off part of the instrument panel as shown.

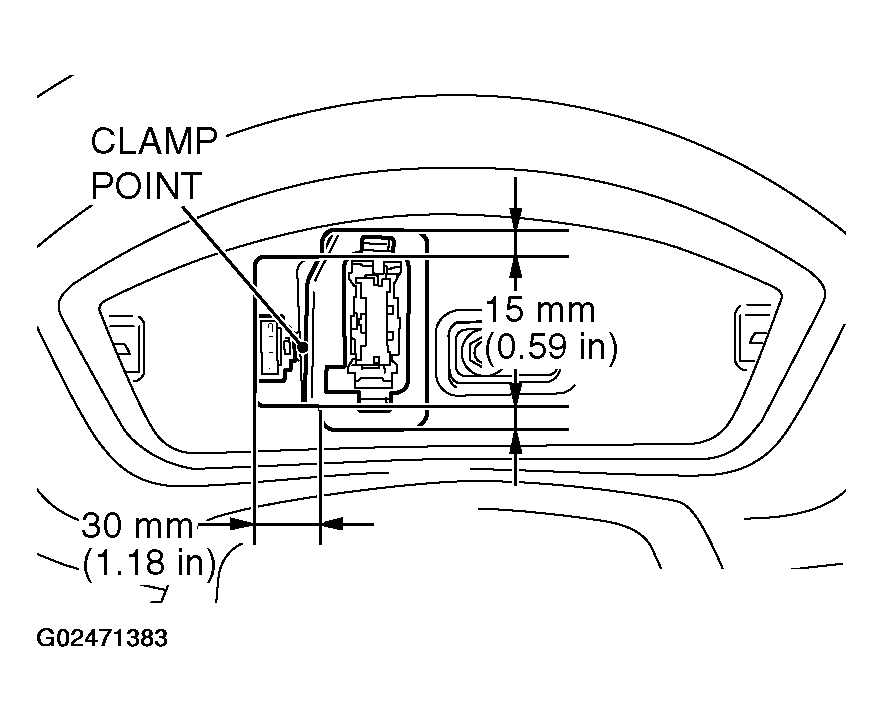

    Fig 1: Cutting Off Part Of Instrument Panel
    G02471383Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
  3. Reach through the opening to unclamp the joint connector and feed it down.
  4. Reach underneath the instrument panel to check and measure at the joint connector.
  5. After the connector check and measurement has been done, tape the joint connector to wiring harness securely as shown by arrows.

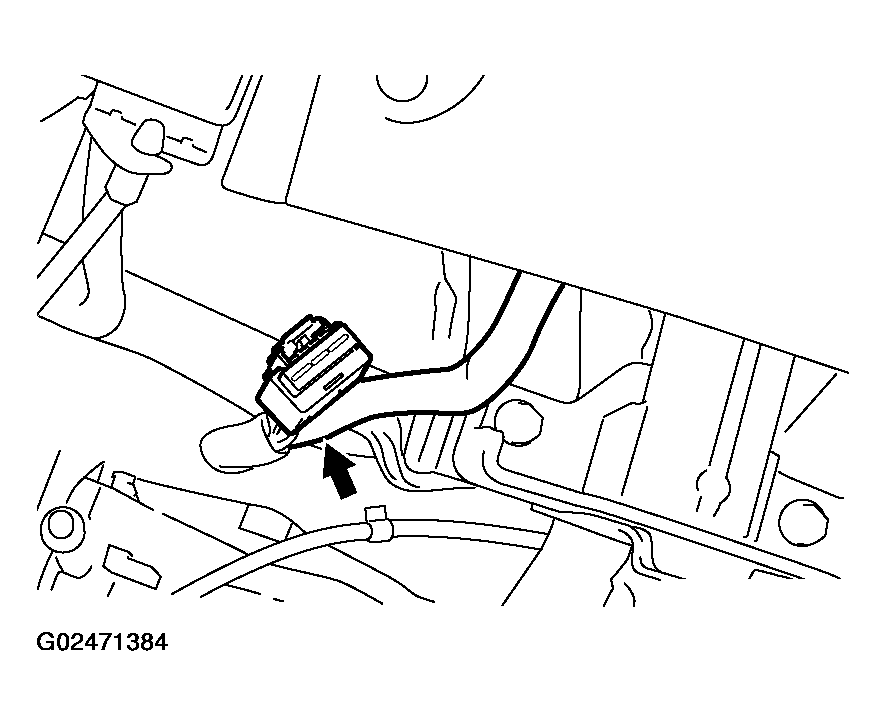

    Fig 2: Taping Joint Connector To Wiring Harness
    G02471384Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
