Can Communication Signal Table

WARNING: This page is about a different car, the 2005 Mitsubishi Endeavor. However, it is still accessible from the selected car via links, so may be relevant.

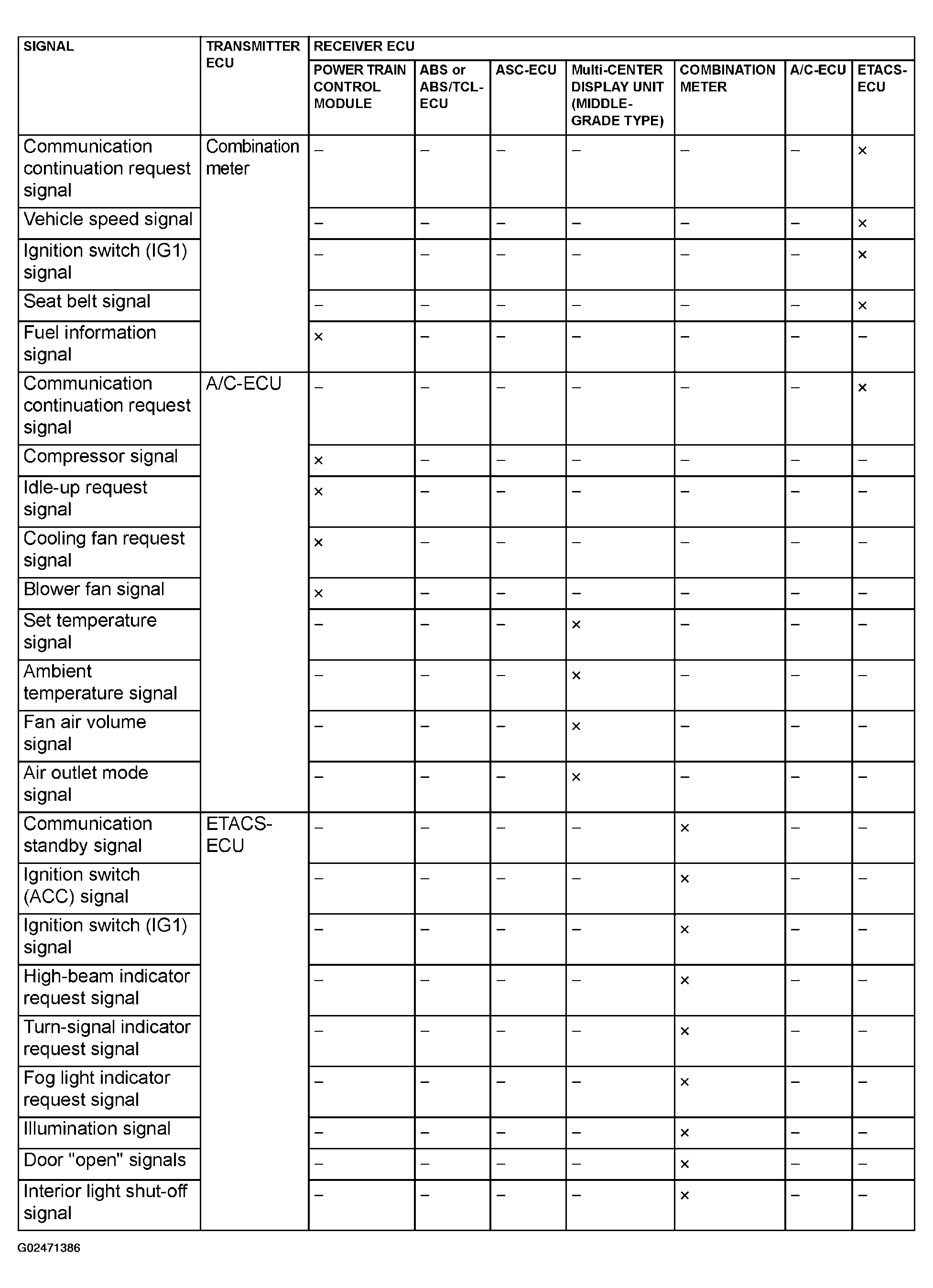

Fig 1: CAN Communication Signal Table (1 Of 3)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

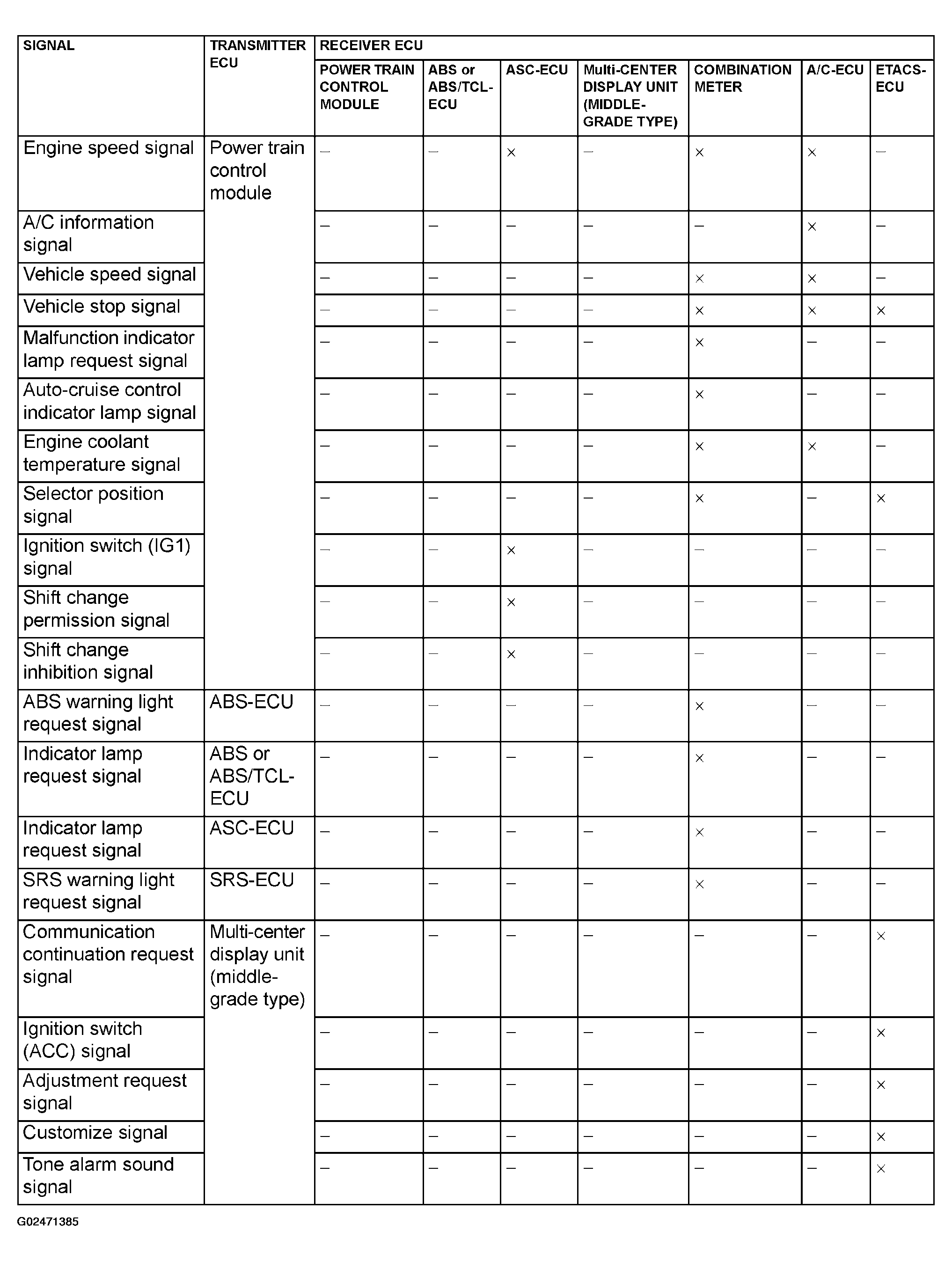

Fig 2: CAN Communication Signal Table (2 Of 3)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

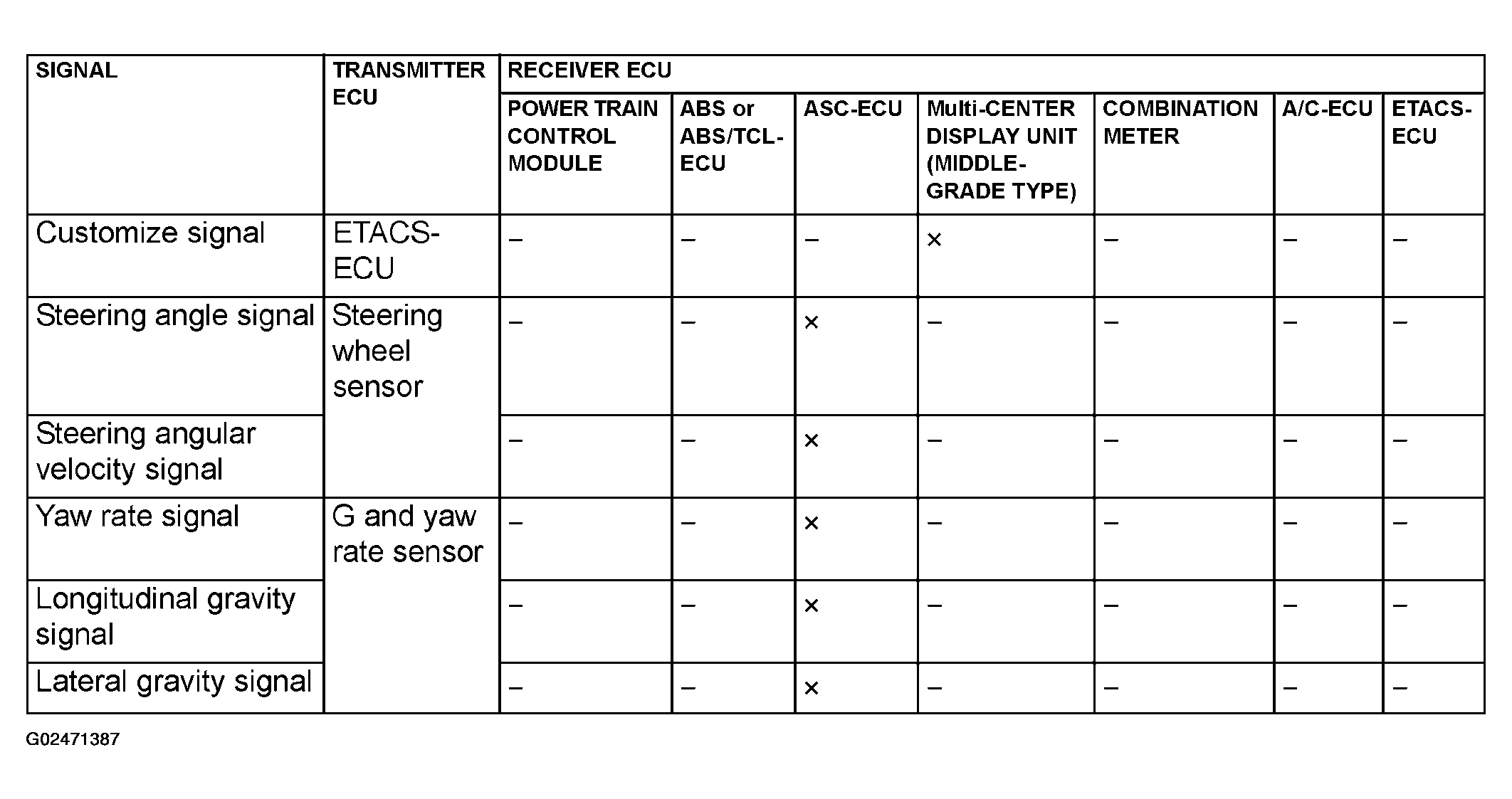

Fig 3: CAN Communication Signal Table (3 Of 3)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
