Construction Diagram

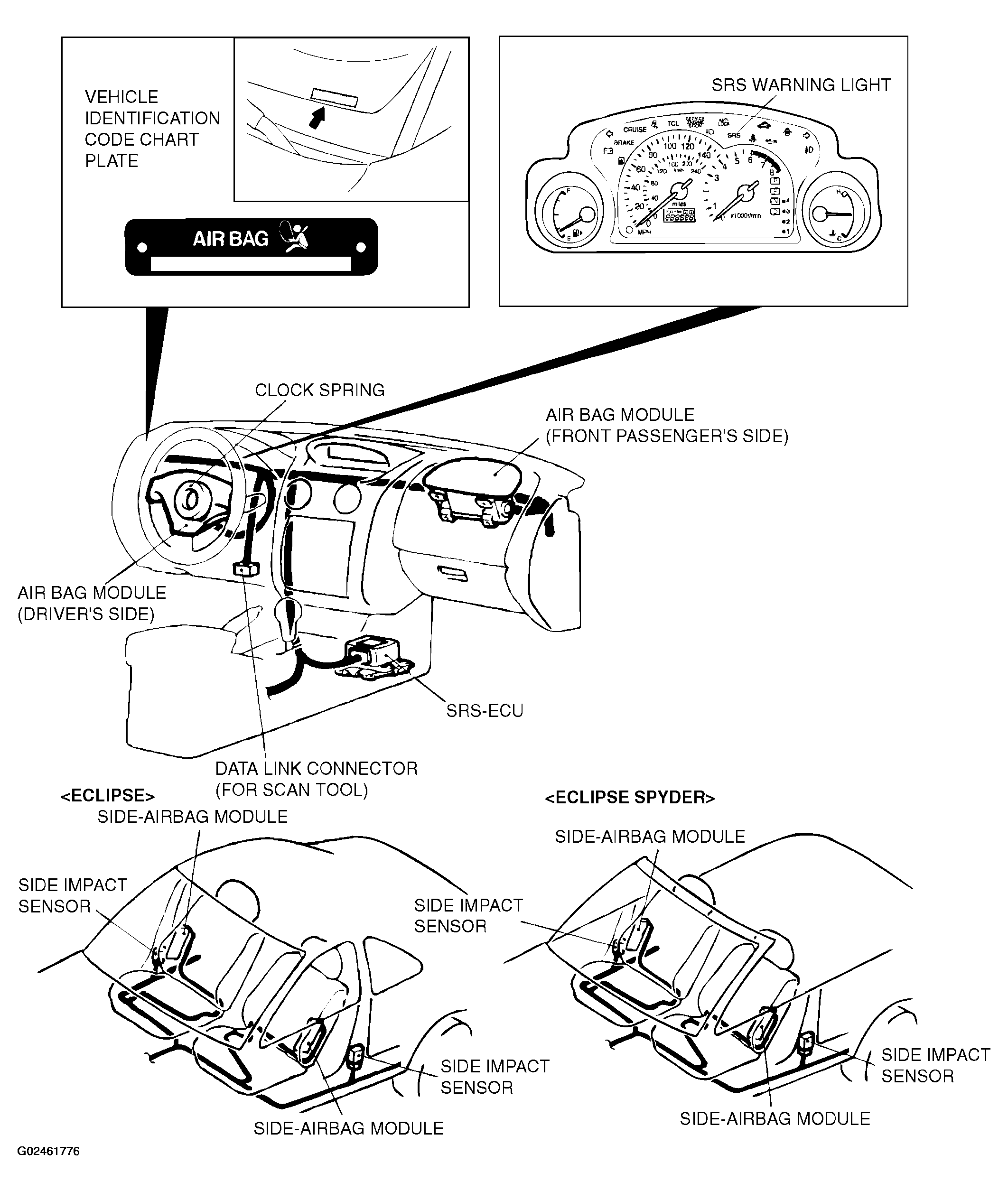

Fig 1: SRS System - Construction Diagram

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

NOTE: This construction diagram shows the general view of the SRS components. For details, refer to "SCHEMATIC ( )," "CONFIGURATION DIAGRAMS ( )" and "CIRCUIT DIAGRAM ( )."
