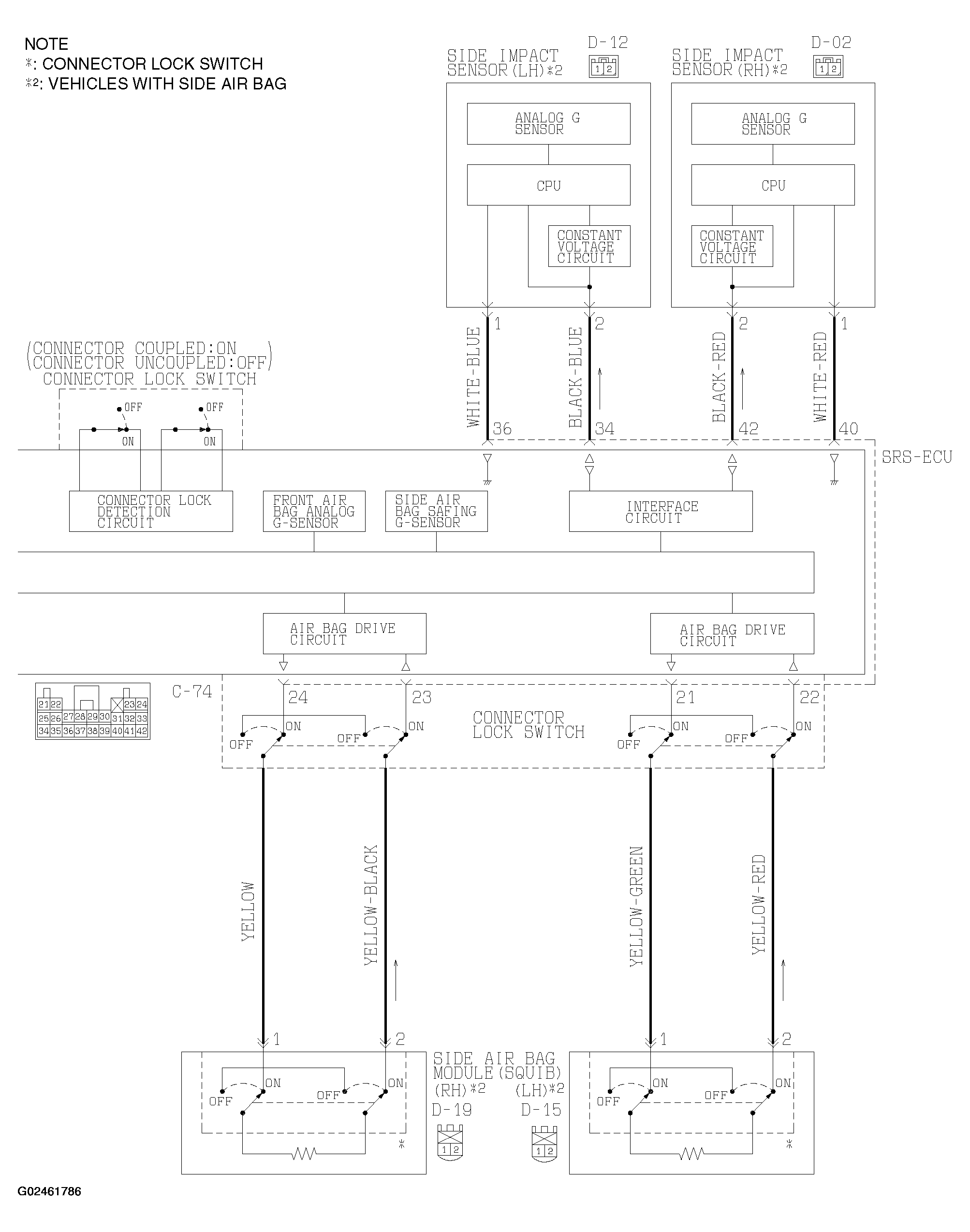

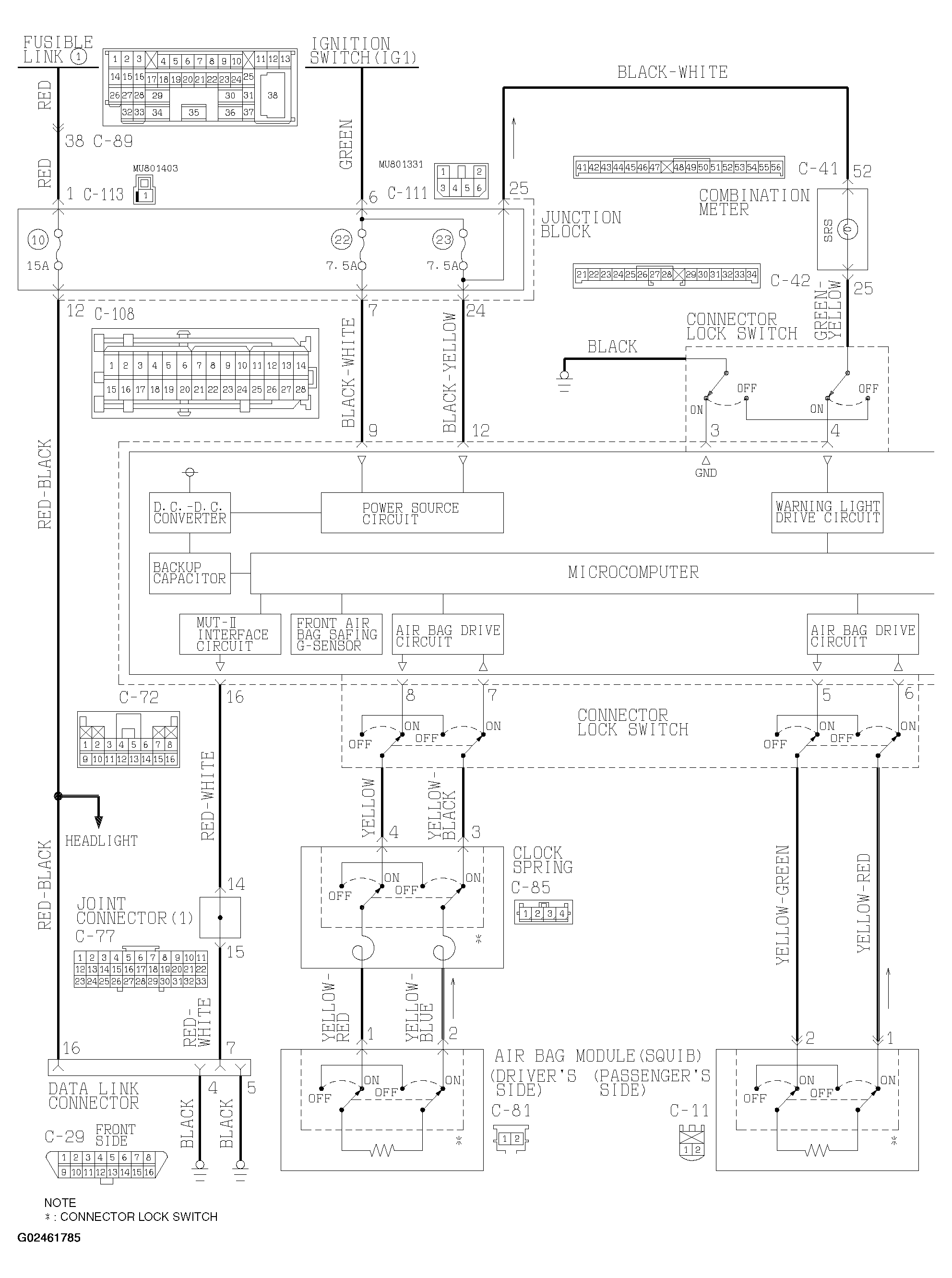

Circuit Diagram
WARNING:
- Do not repair, splice, or modify the SRS wiring (except for specific repairs to the front wiring harness, the instrument panel wiring harness, floor wiring harness and the side air bag wiring harness shown on SRS SERVICE PRECAUTIONS ): replace the wiring if necessary, after reading and following all precautions and procedures in this manual.
- Do not use an analog ohmmeter to check the SRS wiring or components; use only the special tools (Refer to SPECIAL TOOLS ) and a digital multi-meter (Refer to TEST EQUIPMENT ).
