Disassembly And Assembly: Notes

For valve body disassembly procedures, follow numbered steps in illustration. See Fig 1-Fig 3 . For valve body assembly procedures, follow numbers steps in illustration in reverse order. Letters in illustration refer to service point to observe while disassembling and assembling valve body. Letters with arrows pointing away from the letter refer to service points to be observed while performing that step of the assembly procedure. See DISASSEMBLY SERVICE POINT . Letters in illustration refer to service point to observe while disassembling and assembling output shaft. Letters with arrows pointing towards letter refer to service points to be observed while performing that step of the assembly procedure. See ASSEMBLY SERVICE POINTS .

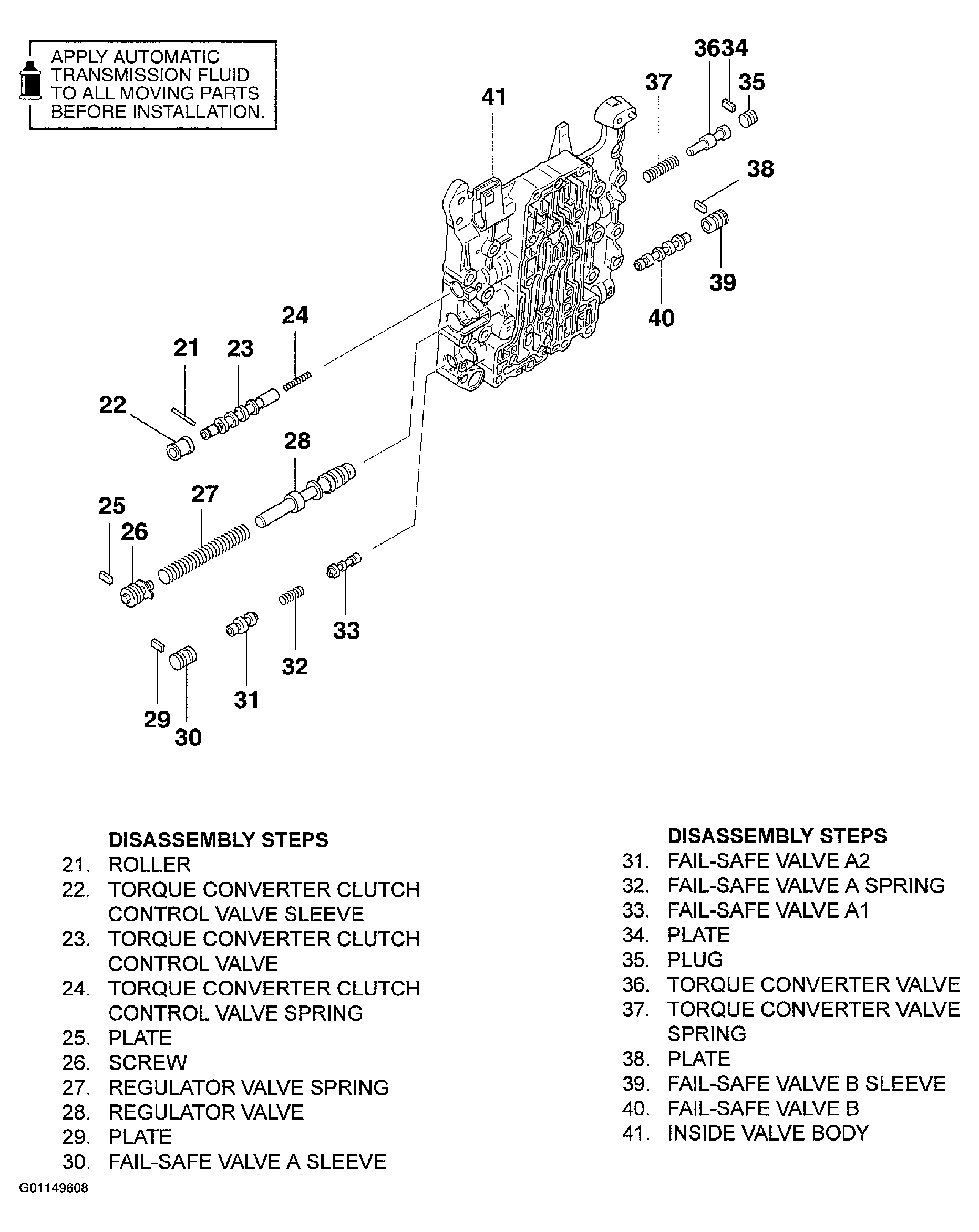

Fig 1: Disassembling & Assembling Valve Body (1 Of 3)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

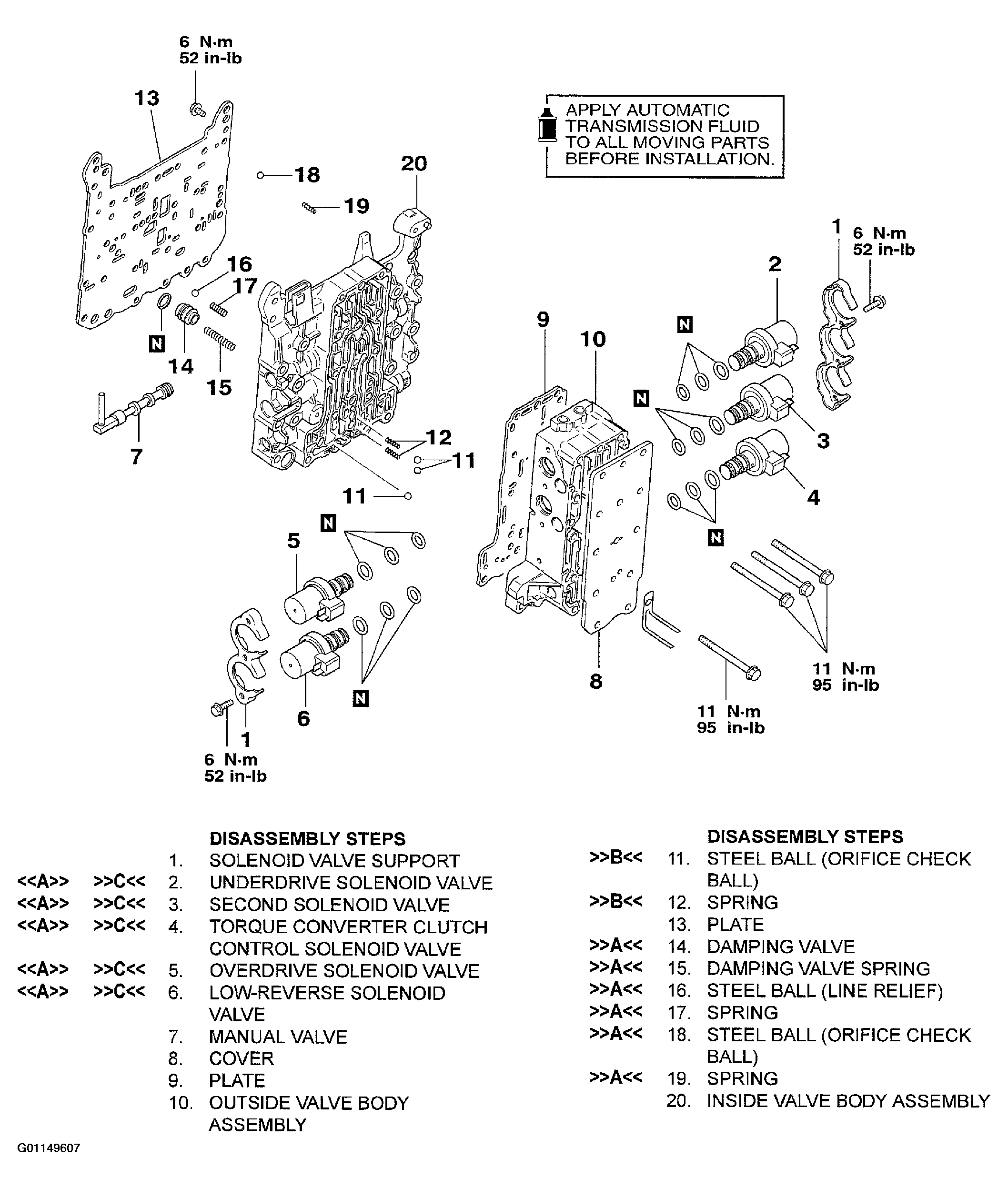

Fig 2: Disassembling & Assembling Valve Body (2 Of 3)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

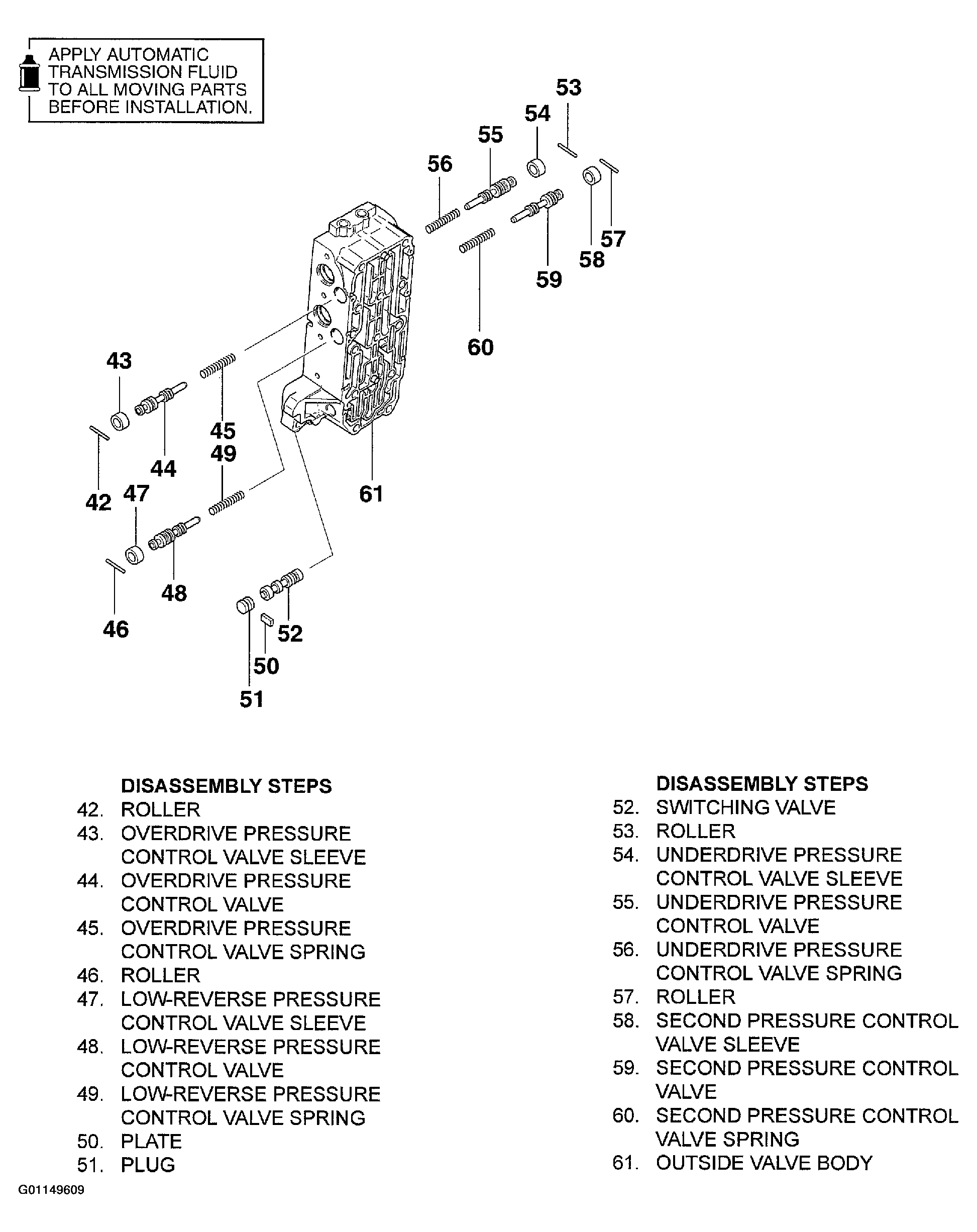

Fig 3: Disassembling & Assembling Valve Body (3 Of 3)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
