Home >> Mitsubishi >> 2002 >> Galant LS, 2.4 G >> Repair and Diagnosis >> Transmission >> Automatic Trans >> Overhaul >> Specifications >> Valve Body Spring Identification Table

Valve Body Spring Identification Table

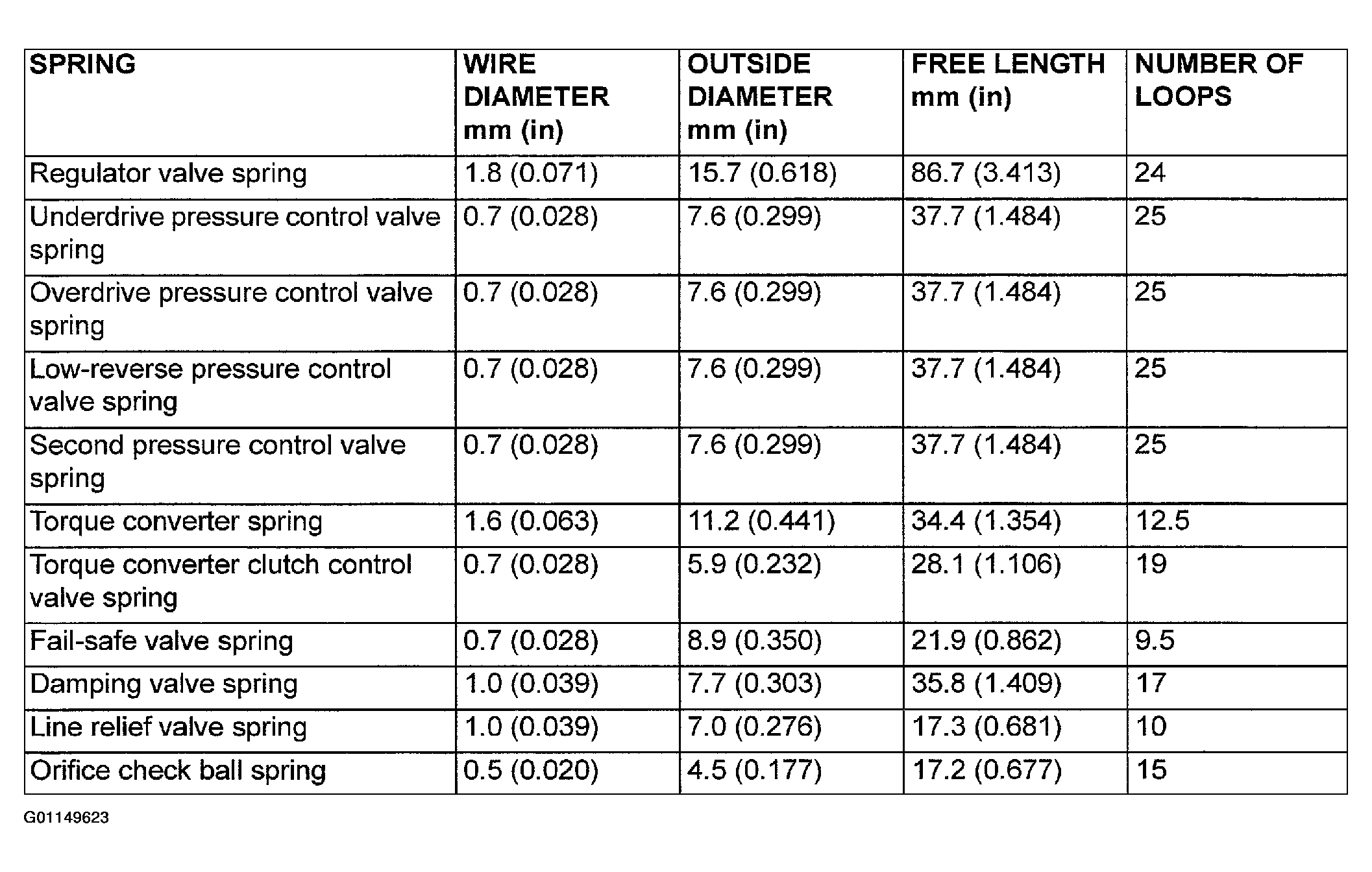

Fig 1: Valve Body Spring Identification Table

G01149623

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
