Disassembly And Assembly: Notes

For output shaft disassembly procedures, follow numbered steps in illustration. See Fig 1. For output shaft procedures, follow numbers steps in illustration in reverse order. Letters in illustration refer to service point to observe while disassembling and assembling output shaft. Letters with arrows pointing away from the letter refer to service points to be observed while performing that step of the assembly procedure. See DISASSEMBLY SERVICE POINTS . Letters in illustration refer to service point to observe while disassembling and assembling output shaft. Letters with arrows pointing towards letter refer to service points to be observed while performing that step of the assembly procedure. See ASSEMBLY SERVICE POINTS .

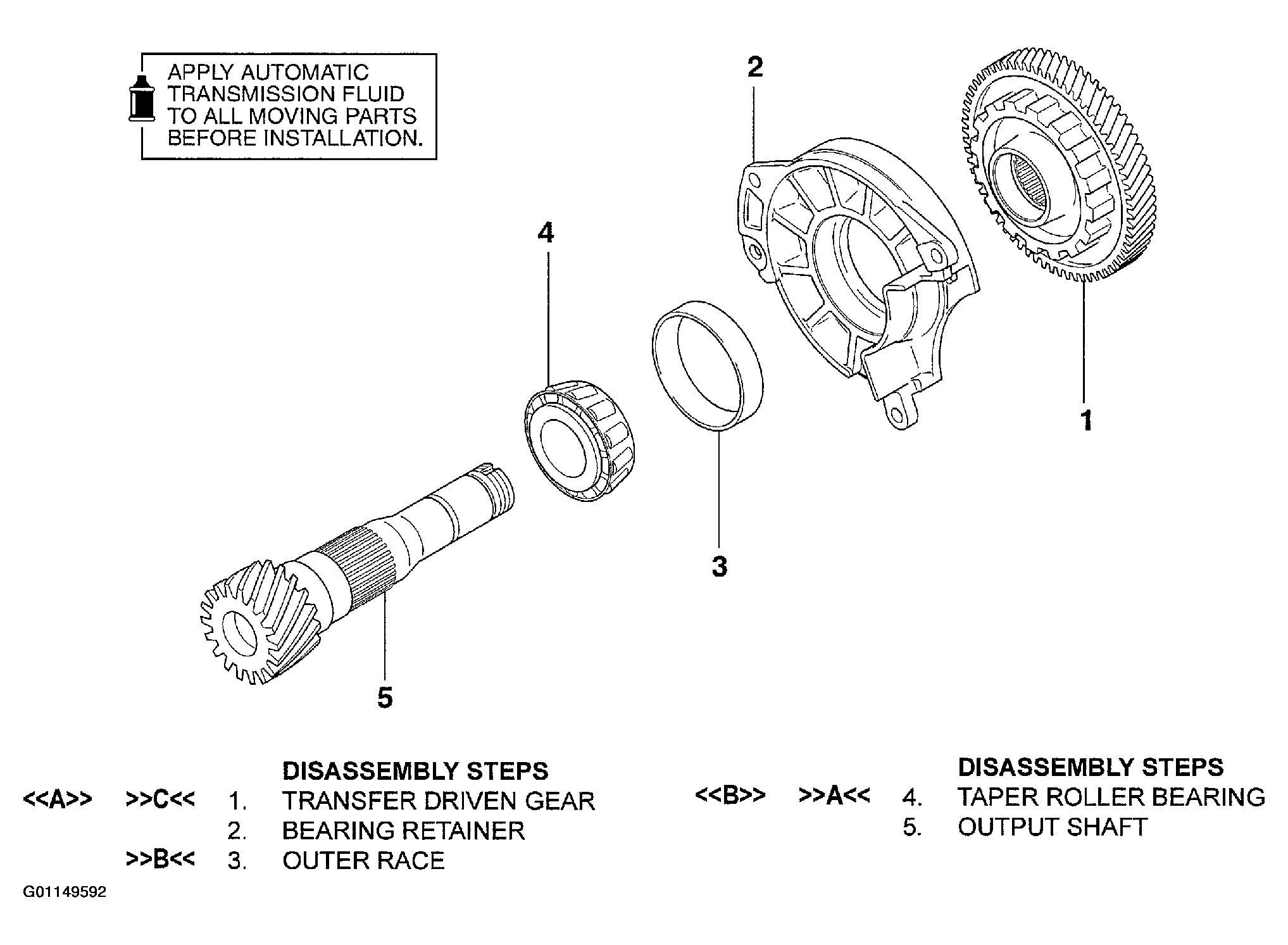

Fig 1: Disassembling & Assembling Output Shaft
G01149592Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tools:
