Disassembly And Assembly: Notes

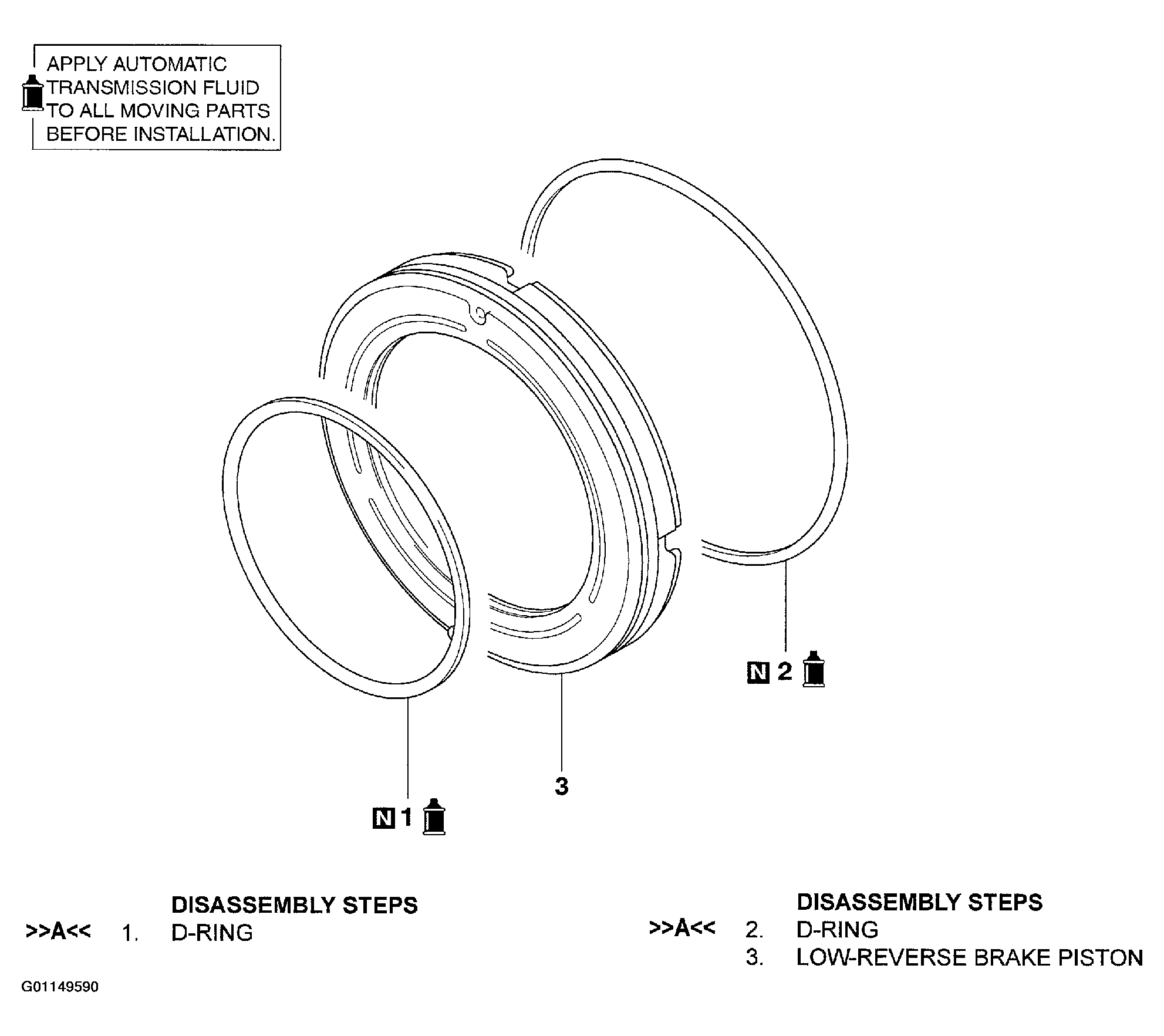

For low-reverse brake disassembly procedures, follow numbered steps in illustration. See Fig 1. For low-reverse brake assembly procedures, follow numbers steps in illustration in reverse order. Letters in illustration refer to service point to observe while disassembling and assembling low-reverse brake. Letters with arrows pointing towards letter refer to service points to be observed while performing that step of the assembly procedure. See ASSEMBLY SERVICE POINT .
