>>B<< Lock Pin Installation

Install the lock pin so that it will be oriented in the direction shown.

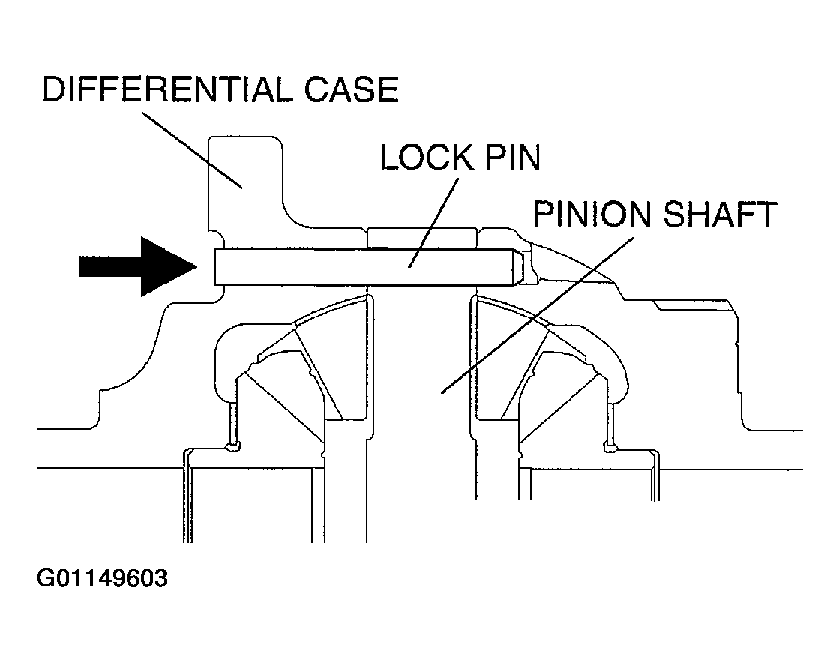

Fig 1: Installing Lock Pin

G01149603

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
