61 14... Replace front power distribution box

WARNING: This page is about a different variant/trim than selected.

Special tools required:

WARNING: Observe SAFETY INSTRUCTIONS  for handling vehicle battery.

Preliminary work needed:

Removal:

NOTE: Use this operation for all existing SV fuse modules (1).

Release detents and remove SV fuse module (1) from power distribution box (2).

Fig 1: Locating SV Fuse Module From Power Distribution Box
G11147897Courtesy of BMW OF NORTH AMERICA, INC.

Take notes, and photographs where necessary, of fuse layout and relay assignment.

Remove all fuses and relays from power distribution box (1).

Fig 2: Locating Fuses And Relays From Power Distribution Box
G11147898Courtesy of BMW OF NORTH AMERICA, INC.

Release cover of positive supply (1) at detents and remove from power distribution box (2).

Fig 3: Locating Positive Supply Cover And Detents
G11147899Courtesy of BMW OF NORTH AMERICA, INC.

Release and remove positive battery cable (1) at nut.

Enter cable assignment according to pin no. (see rear of power distribution box) in table (see last operation) and take a photograph if necessary.

Attention! In the case of several different cable colors these cables must be marked again.

Fig 4: Locating Positive Battery Cable Nut
G11147900Courtesy of BMW OF NORTH AMERICA, INC.

Open all locking pins at power distribution box and at new part.

Detail (A) shows closed locking pin, detail (B) shows open locking pin.

Unspin all cables on the power distribution box using special tools 61 0 316 , 61 0 317 , 61 0 325 .

Fig 5: Locating Closed Locking Pin
G11147901Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Pin cable according to the noted pin no. in power distribution box.

Close locking pins at power distribution box.

Detail (A) shows closed locking pin, detail (B) shows open locking pin.

Fig 6: Locating Open Locking Pin
G11147901Courtesy of BMW OF NORTH AMERICA, INC.

Turn power distribution box over.

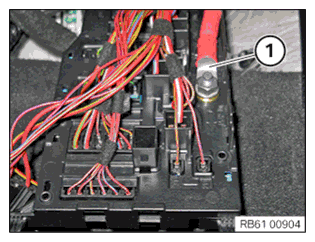

Tighten positive battery cable (1) at nut.

Tightening torque 61 14 2AZ .

Fig 7: Tightening Positive Battery Cable At Nut
G11789496Courtesy of BMW OF NORTH AMERICA, INC.

Fit cover of positive supply (1) at power distribution box (2).

NOTE: Make sure cover of positive supply (1) is correctly seated and locked into place.
Fig 8: Locating Positive Supply Cover And Detents
G11147899Courtesy of BMW OF NORTH AMERICA, INC.

Join all fuses and relays according to the noted assignment diagram in power distribution box (1).

Fig 9: Locating Fuses And Relays From Power Distribution Box
G11147898Courtesy of BMW OF NORTH AMERICA, INC.
NOTE: Use this operation for all existing SV fuse modules (1).

Join SV fuse module (1) in power distribution box (2).

NOTE: Ensure correct locking.
Fig 10: Locating SV Fuse Module From Power Distribution Box
G11147897Courtesy of BMW OF NORTH AMERICA, INC.
Pin no. Cable color
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
202
203
204
205
206
207
208
209
210
211
217
