61 14... Removing and installing power distribution box (front)

WARNING: This page is about a different variant/trim than selected.

WARNING: Observe SAFETY INSTRUCTIONS for handling vehicle battery.

Preliminary work needed:

Removal:

Remove screw (1).

Feed out power distribution box (2) from support (3).

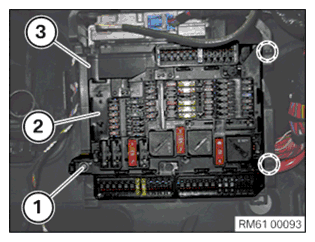

Fig 1: Locating Power Distribution Box And Support

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Feed in power distribution box (2) into support (3).

Tighten screw (1).

Tightening torque 61 14 3AZ .

Fig 2: Locating Power Distribution Box And Support

Courtesy of BMW OF NORTH AMERICA, INC.
