Replacing power distribution box (Cooper Convertible)

IMPORTANT: Read and comply with NOTES on protection against electrostatic discharge (ESD protection).

Preliminary work needed:

Removal:

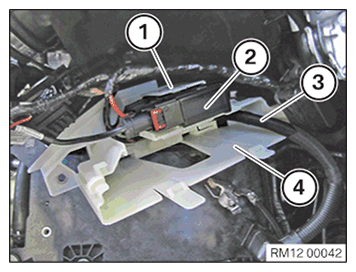

Release lock (1).

Detach cable (3) from equipment holder (4).

Carefully pull out power distribution box (2).

Courtesy of BMW OF NORTH AMERICA, INC.

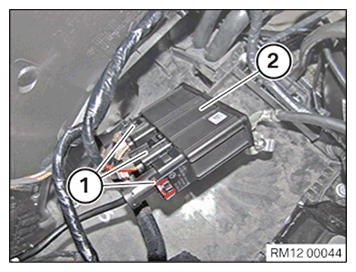

Unlock connector (1) and detach.

Remove power distribution box (2).

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Connect the connector (1) to the power distribution box (2).

Connectors (1) must engage audibly.

Courtesy of BMW OF NORTH AMERICA, INC.

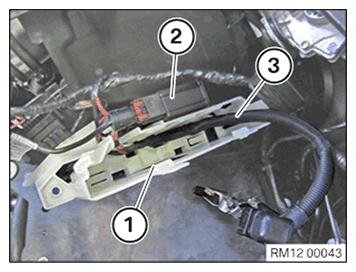

Route cable (3) in the equipment holder (1).

Push the power distribution box (2) into the equipment holder (1) and snap into place.

Courtesy of BMW OF NORTH AMERICA, INC.

Required follow-up work:
