Steering Column: Removal

WARNING: This page does not describe the selected car, but rather 42 other vehicles, including the 2003 BMW 530i, 2003 BMW 525i, 2002 BMW M5, 2002 BMW 540i, and 2002 BMW 530i. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect negative battery cable.
  2. Remove steering wheel. See STEERING WHEEL .
  3. Remove lower trim from instrument panel.
  4. Take off collar (1). See Fig 1.
  5. Remove upper section of steering column trim. See STEERING COLUMN UPPER TRIM SECTION .
  6. Remove cable for interlock from steering lock if necessary. See Fig 2.
  7. Remove clamping bolt. Press down on steering spindle. See Figure.
  8. Loosen shear-off screw with or mill off screw head. See Fig 3.
  9. Unfasten all lines leading to steering column from their respective brackets. Unscrew screw. Unlock connector from ignition starter switch and remove. See Fig 4.
  10. Unfasten screws (3) for mechanical adjustment. See Fig 5.
  11. Unfasten screws on support tube. Remove steering column.
Fig 1: Taking Off Collar
G00175068Courtesy of BMW OF NORTH AMERICA, INC.

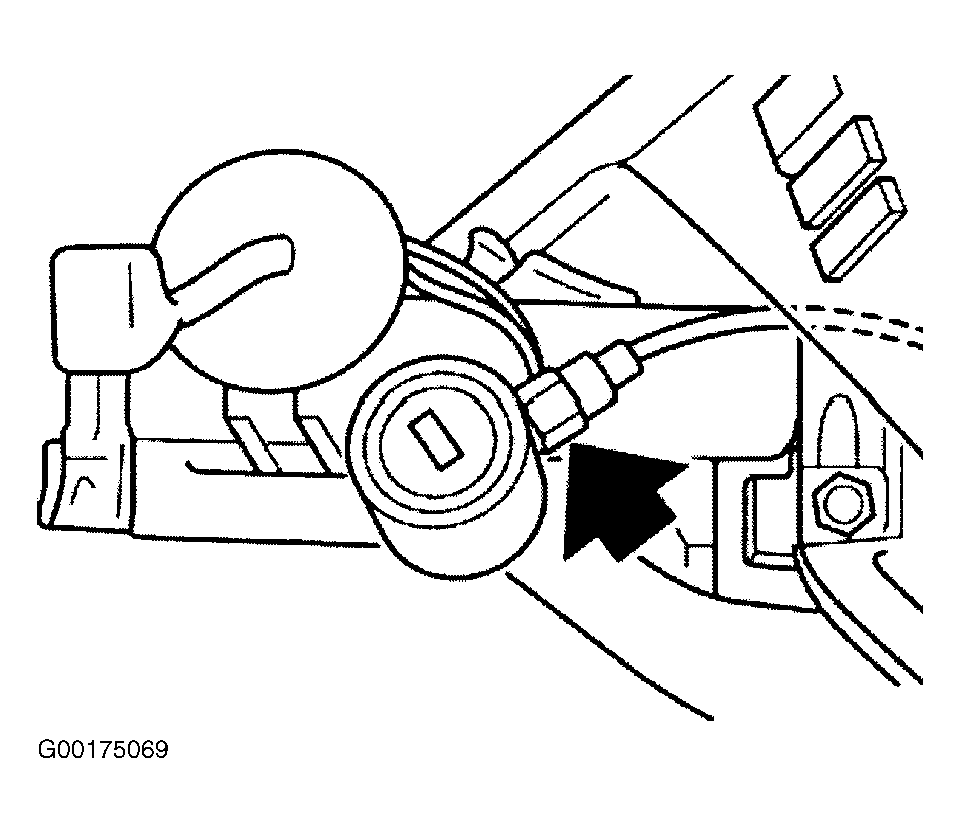

Fig 2: Removing Cable For Interlock
G00175069Courtesy of BMW OF NORTH AMERICA, INC.

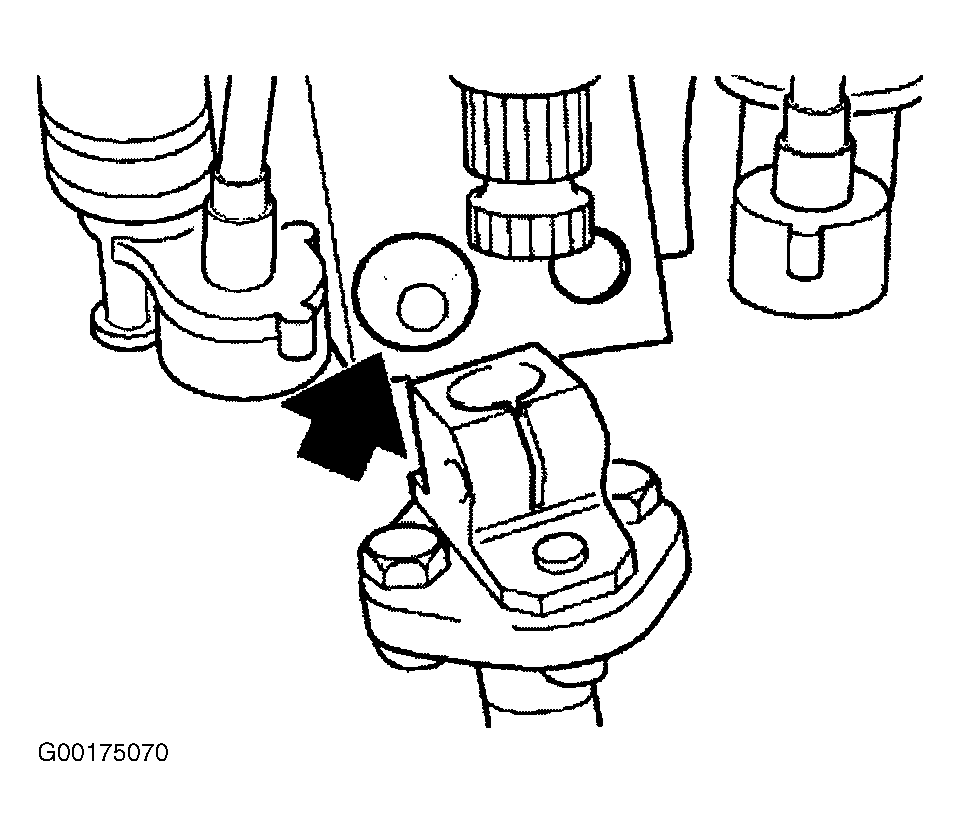

Fig 3: Locating Shear-off Screw
G00175070Courtesy of BMW OF NORTH AMERICA, INC.

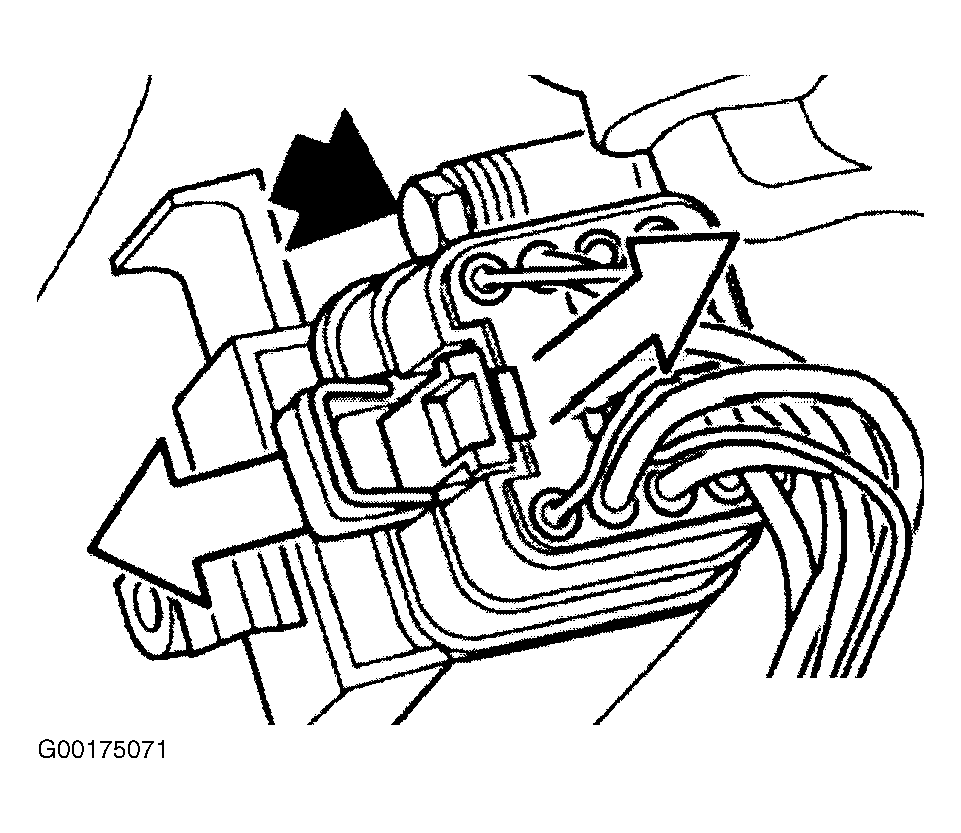

Fig 4: Removing Connector From Ignition Starter Switch
G00175071Courtesy of BMW OF NORTH AMERICA, INC.
Fig 5: Identifying Mechanical Adjustment Components
G00175073Courtesy of BMW OF NORTH AMERICA, INC.
