32 31 070 Removing And Installing/Replacing Lower Section Of Steering Spindle

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2008 BMW 760Li, 2007 BMW 760Li, 2006 BMW 760i, 2006 BMW 760Li, and 2005 BMW 760i. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: If the lower section of the steering spindle is separated from the power steering gear, this can result in damage to the contact ring when the steering wheel is turned.

Necessary Preliminary Tasks:

Remove lower section of steering spindle from universal joint (do not pull out). Refer to 32 31 211 REPLACING UNIVERSAL JOINT FOR LOWER SECTION OF STEERING SPINDLE .
Remove trim panel for pedal assembly. Refer to 51 45 185 REMOVING AND INSTALLING/REPLACING TRIM FOR PEDAL ASSEMBLY .

Remove air duct in footwell. See 35 11 000 REMOVING AND INSTALLING MOUNTING BLOCK FOR PEDALS

Mark installation position of lower section of steering spindle in relation to steering column.

Release clamping screw (1).

Move steering wheel to straight-ahead position and remove ignition key.

Pull lower section of steering spindle out of universal joint.

Detach lower section of steering spindle from steering column and remove towards rear.

Installation:

Clamping screw (1) must rest in groove of steering column.

Replace clamping screw.

Tightening torque, refer to 32 31 1AZ in STEERING AND WHEEL ALIGNMENT - TIGHTENING TORQUES .

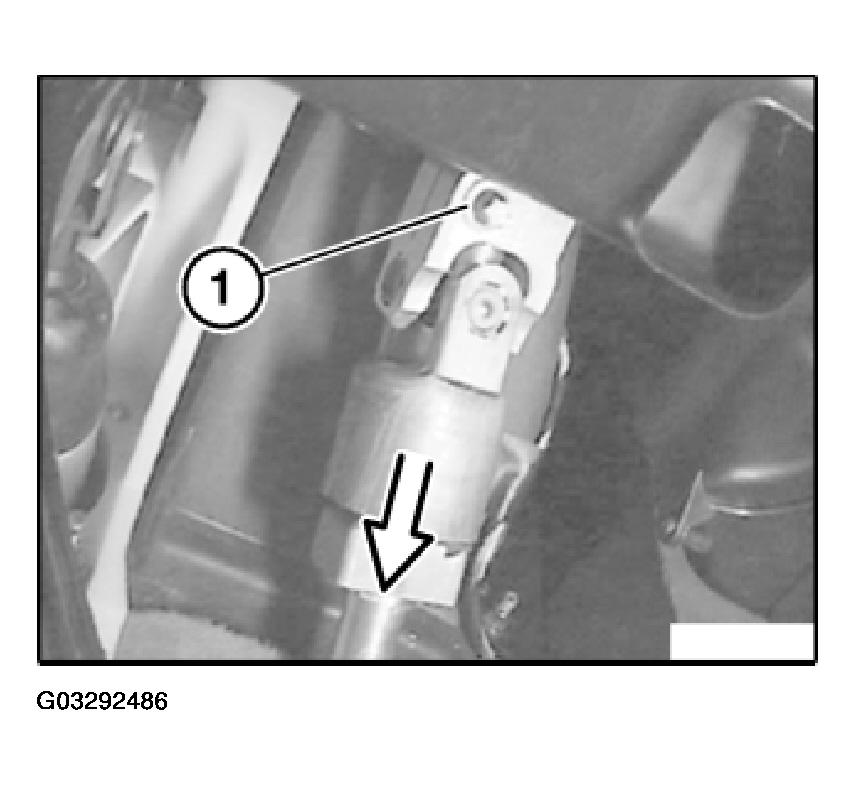

Fig 1: Clamping Screw And Removal Direction

Courtesy of BMW OF NORTH AMERICA, INC.

After Installation:

Carry out steering angle sensor adjustment. Refer to 61 31 996 CARRY OUT STEERING ANGLE SENSOR ADJUSTMENT .
Turn steering wheel in both directions to full lock.
NOTE: The airbag warning lamp must not light up in the process.
Check directional stability of car.
