32 31 211 Replacing Universal Joint For Lower Section Of Steering Spindle

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2008 BMW 760Li, 2007 BMW 760Li, 2006 BMW 760i, 2006 BMW 760Li, and 2005 BMW 760i. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Scalding hazard!

Only perform this work after engine has cooled down.

IMPORTANT: Observe safety instructions on raising the vehicle. Refer to 00..... LIFTING VEHICLE WITH A LIFTING PLATFORM .

After installation:

Carry out steering angle sensor adjustment. Refer to 61 31 996 CARRY OUT STEERING ANGLE SENSOR ADJUSTMENT .

Necessary Preliminary Tasks:

Move steering wheel to straight-ahead position and remove ignition key.
Remove steering gear cover at side.

Release clamping screw.

Detach universal joint from power steering gear.

Installation:

Replace clamping screw.

Tightening torque, refer to 32 31 14AZ in STEERING AND WHEEL ALIGNMENT - TIGHTENING TORQUES .

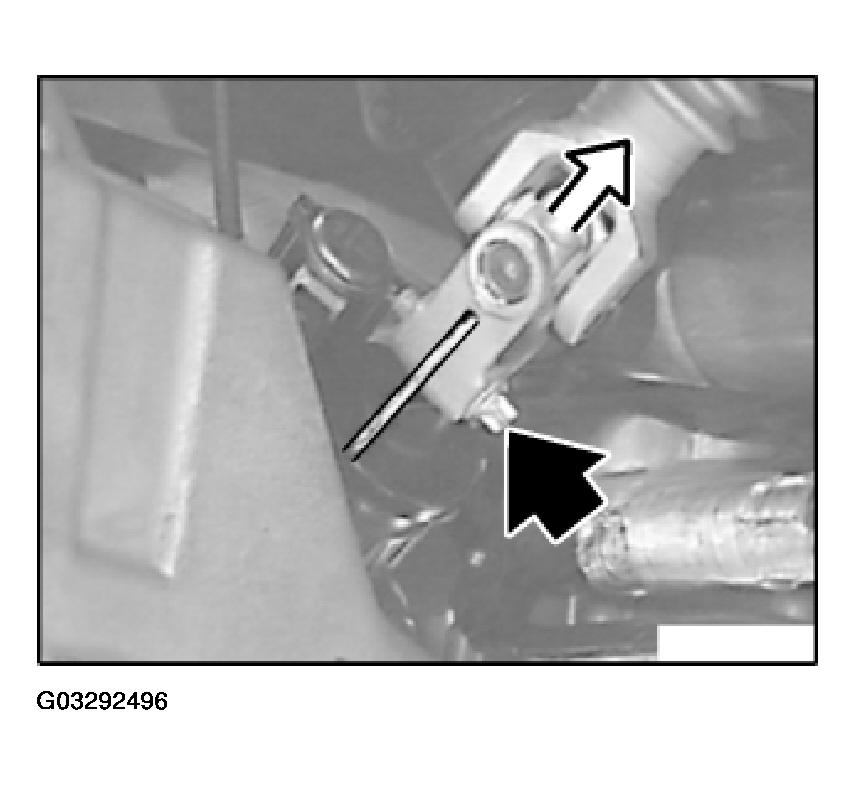

Fig 1: Power Steering Gear Universal Joint Clamping Screw And Removal Direction

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

If necessary, move power steering gear to straight-ahead position - markings on cap (1) and housing (2) must match up.

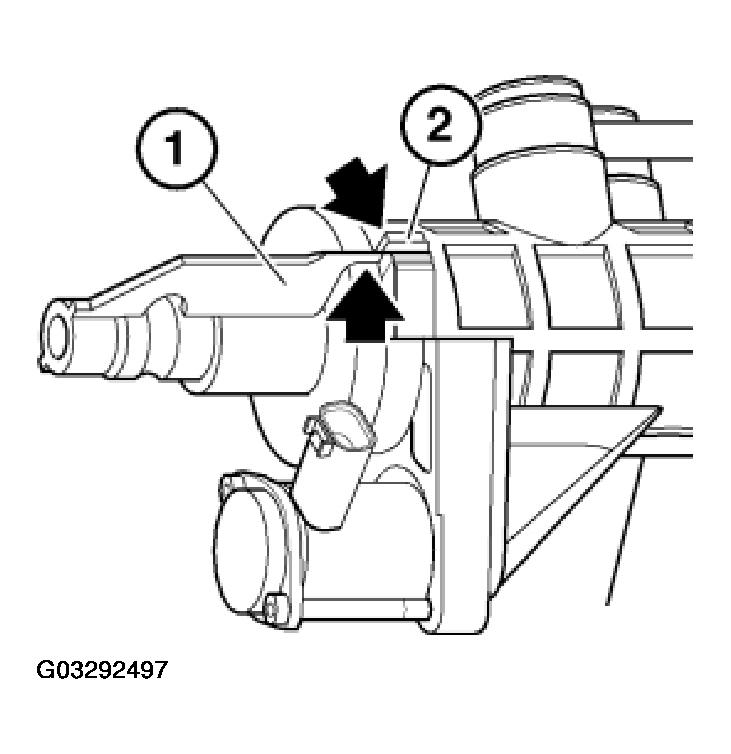

Fig 2: Cap And Housing Aligning Marks

Courtesy of BMW OF NORTH AMERICA, INC.

Release clamping screw.

Grip steering spindle lower section and pull out universal joint with corrugated tube downwards.

Installation:

Universal joint can only be attached in one position to lower section of steering spindle.

Replace clamping screw.

Tightening torque, refer to 32 31 13AZ in STEERING AND WHEEL ALIGNMENT - TIGHTENING TORQUES .

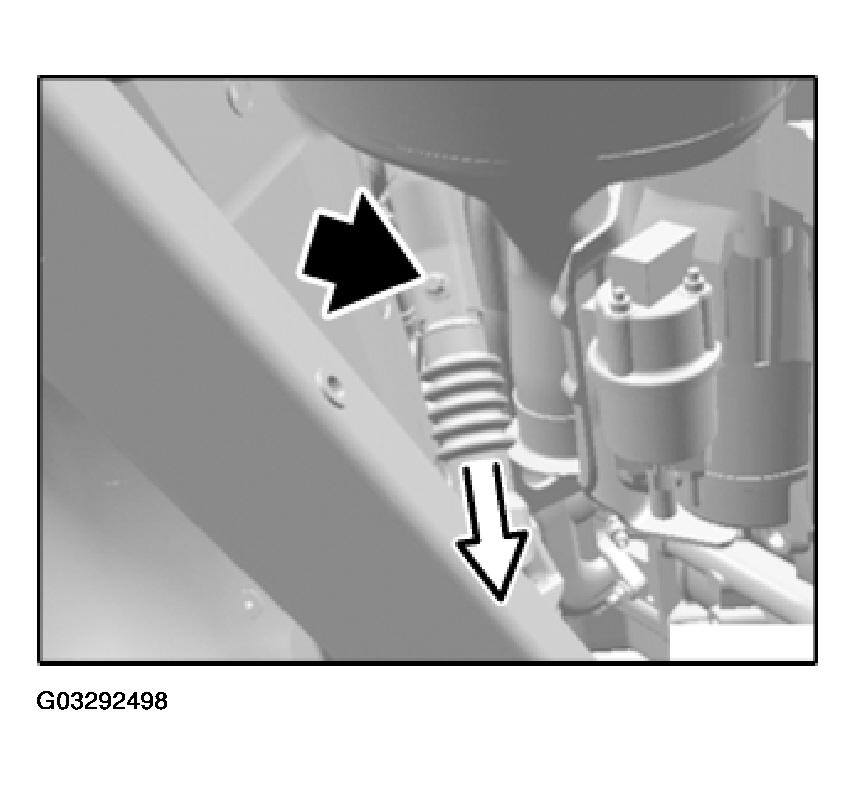

Fig 3: Universal Joint Clamping Screw And Removal Direction

Courtesy of BMW OF NORTH AMERICA, INC.
