32 32 170 Removing And Installing/Replacing Interlock Cable

WARNING: This page is about a different car, the 2006 BMW X5, 2005 BMW X5, and 2004 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: After installation, check Interlock function.

Lift off shift lever cover and unfasten Interlock cable from shift tower.

Connect new Interlock cable to old cable with wire or a cord.

Installation:

Adjust Interlock cable.

Unfasten screws.

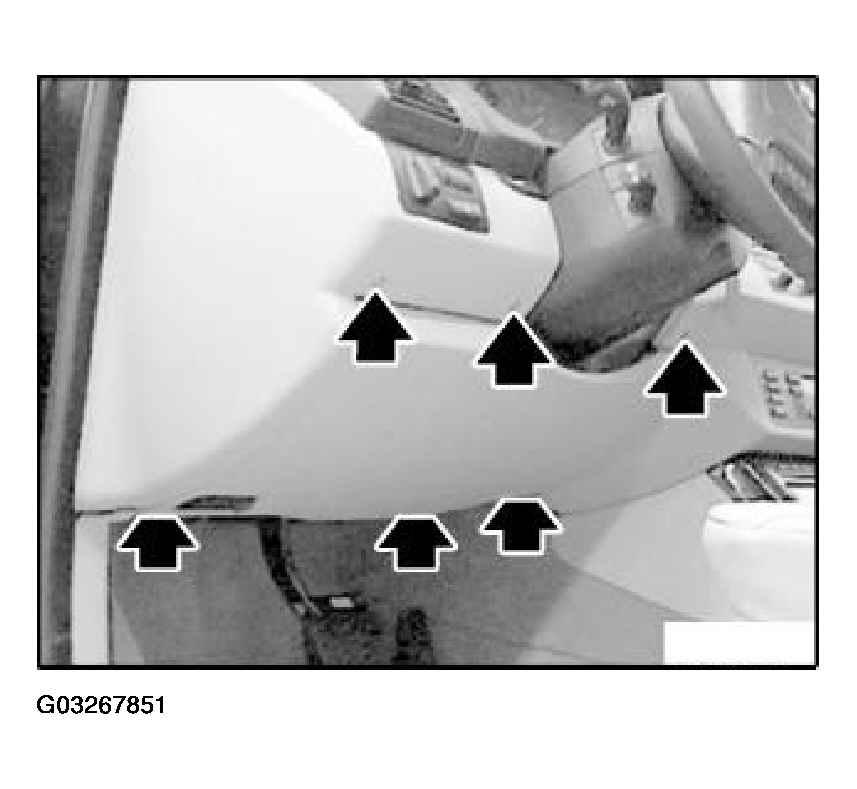

Fig 1: Removing Instrument Panel Trim

Courtesy of BMW OF NORTH AMERICA, INC.

Disconnect plugs from gong and On-Board Diagnosis.

Remove instrument panel trim.

Remove lower section of steering column trim. Refer to 32 31 020 REMOVING AND INSTALLING/REPLACING LOWER SECTION OF STEERING COLUMN COVER .

Unfasten Interlock cable on steering lock and remove, inserting new Interlock cable at the same time.

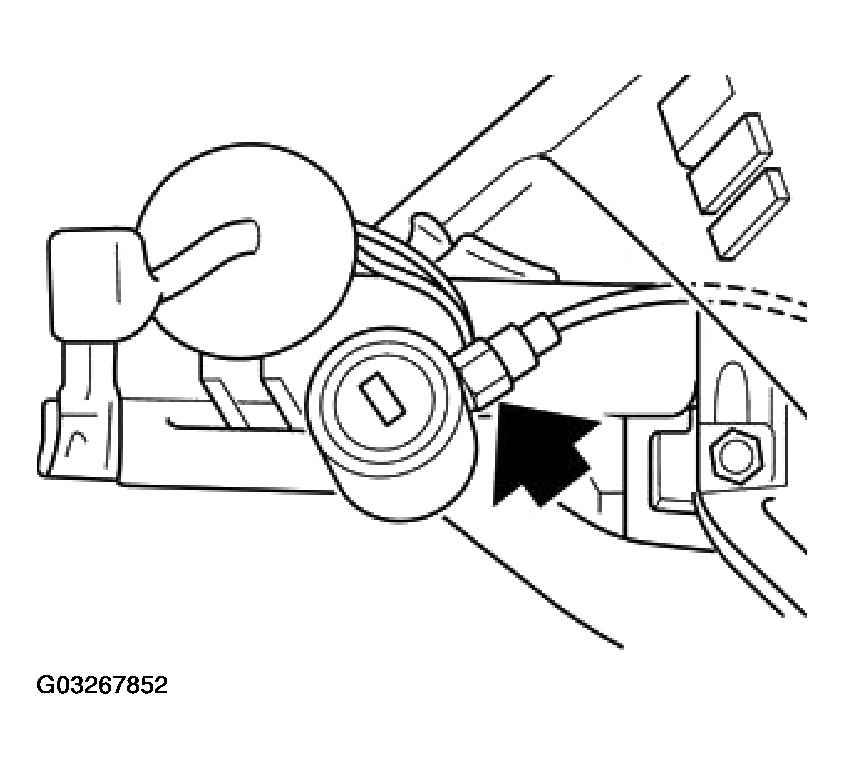

Fig 2: Removing Interlock Cable On Steering Lock

Courtesy of BMW OF NORTH AMERICA, INC.
