61 31 006 Removing and installing/replacing fixture for steering column stalk (from 09/2005)

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2010 BMW M6, 2009 BMW M6, 2008 BMW M6, 2007 BMW M6, and 2006 BMW M6. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Move wheels into straight-ahead position and do not alter this position during the repair work.

IMPORTANT: Read and comply with notes on protection against electrostatic damage (ESD protection), refer to 61 35 ... NOTES ON ESD PROTECTION (ELECTRO STATIC DISCHARGE) .

Comply with notes and instructions on handling optical fibres .

Necessary preliminary tasks:

Remove steering wheel. See 32 33 001 REMOVING AND INSTALLING / REPLACING STEERING WHEEL
Remove front section of steering column trim. See 32 31 010 REMOVING AND INSTALLING/REPLACING FRONT SECTION OF STEERING COLUMN COVER
Remove lower section of steering column trim. See 32 31 020 REMOVING AND INSTALLING / REPLACING LOWER SECTION OF STEERING COLUMN TRIM
Remove top section of steering column casing. See 32 31 004 REMOVING AND INSTALLING / REPLACING UPPER SECTION OF STEERING COLUMN TRIM
If necessary, remove deformation element for steering column trim.

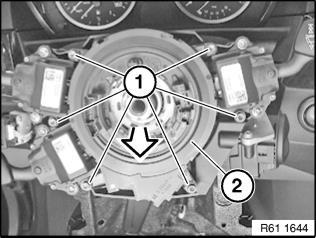

Disconnect plug connections from rear on fixture for steering column stalk (2). Release screws (1). Remove fixture for steering column switch (2) in direction of arrow.

Fig 1: Disconnecting Plug Connections From Rear On Fixture For Steering Column Stalk

Courtesy of BMW OF NORTH AMERICA, INC.

Installation: Carry out steering angle sensor adjustment . On vehicles with active front steering, steering angle sensor adjustment is performed by means of initial operation / adjustment of active front steering.

Replacement:

Remove turn indicator/headlight dipping switch .
Remove windshield wiper switch .
If necessary, remove cruise control switch .
Remove volute spring cassette .
Carry out vehicle programming/coding.
Carry out steering angle sensor adjustment .

On vehicles with active front steering, steering angle sensor adjustment is performed by means of initial operation / adjustment of active front steering.
