32 31 004 Removing and installing / replacing upper section of steering column trim

WARNING: This page is about a different car, the 2005 BMW 645Ci and 2004 BMW 645Ci. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove lower section of trim, refer to 32 31 020 REMOVING AND INSTALLING / REPLACING LOWER SECTION OF STEERING COLUMN TRIM .
Move steering column into "lower" and "extended" position

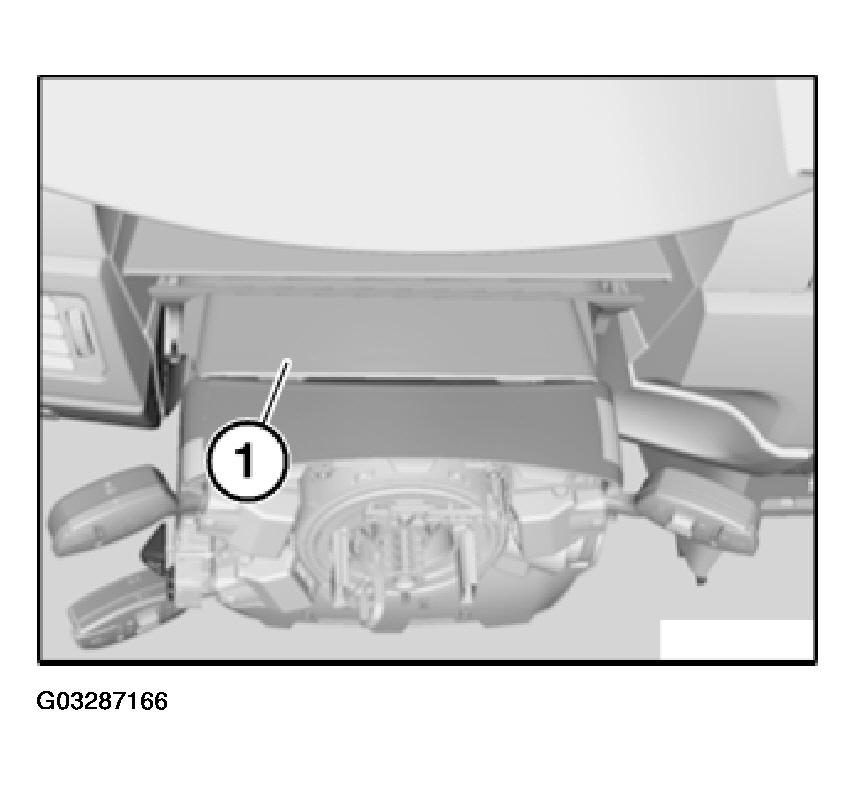

Unclip steering column cover (1) from upper section of trim.

Fig 1: Unclipping Steering Column Cover From Upper Section Of Trim

Courtesy of BMW OF NORTH AMERICA, INC.

Unfasten screws.

Installation:

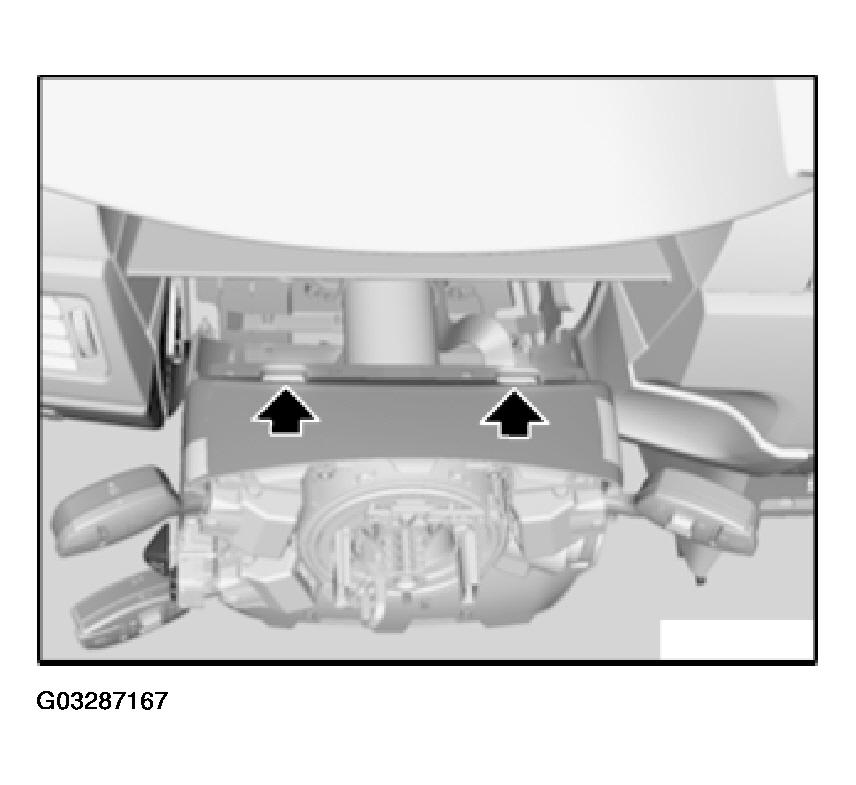

Replace expansion rivets.

Fig 2: Identifying Expansion Rivets

Courtesy of BMW OF NORTH AMERICA, INC.

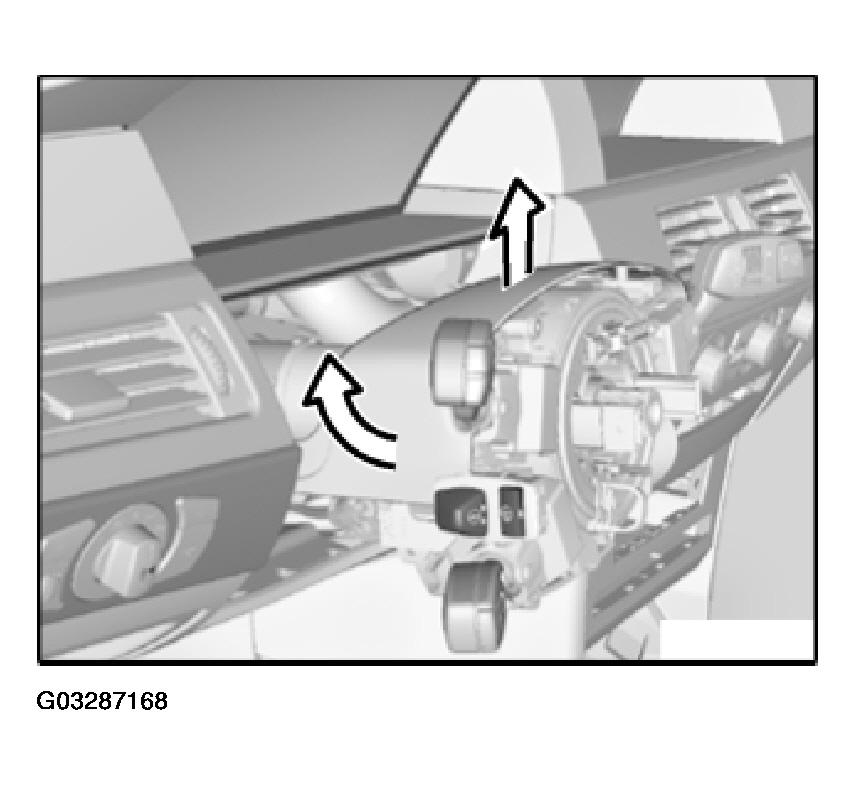

Bend upper section of trim on both sides outwards and remove towards top.

Fig 3: Bending Upper Section Of Trim On Both Sides Outwards

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

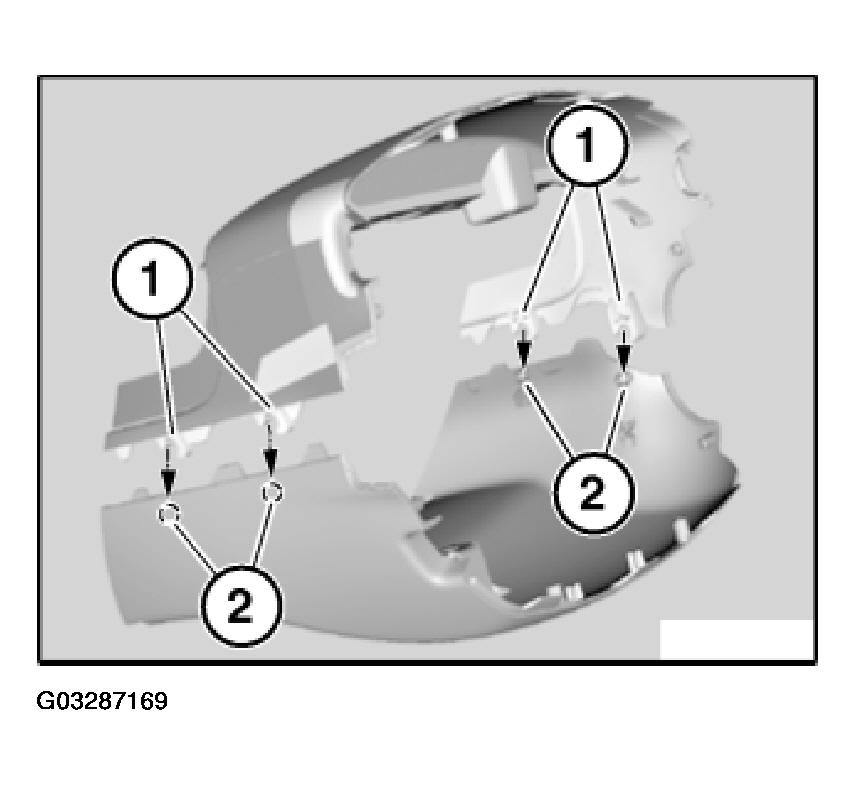

Locks (2) must engage in hooks (1) on both sides.

Fig 4: Identifying Locks And Hooks

Courtesy of BMW OF NORTH AMERICA, INC.
