32 31 020 Removing and installing / replacing lower section of steering column trim

WARNING: This page is about a different car, the 2005 BMW 645Ci and 2004 BMW 645Ci. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove front section of trim
Move steering column in "top" and "extended" position.

Release screw.

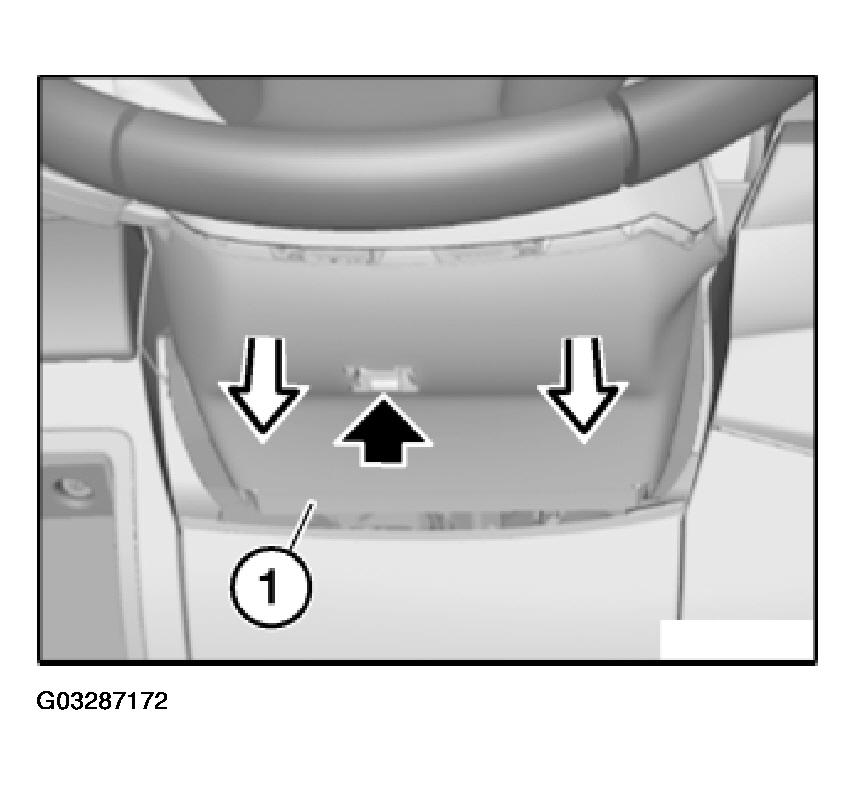

Unclip lower section of trim (1) and pull downwards.

Fig 1: Unclipping Lower Section Of Trim (1) And Pulling Downwards

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Replace expansion rivet.

Installation:

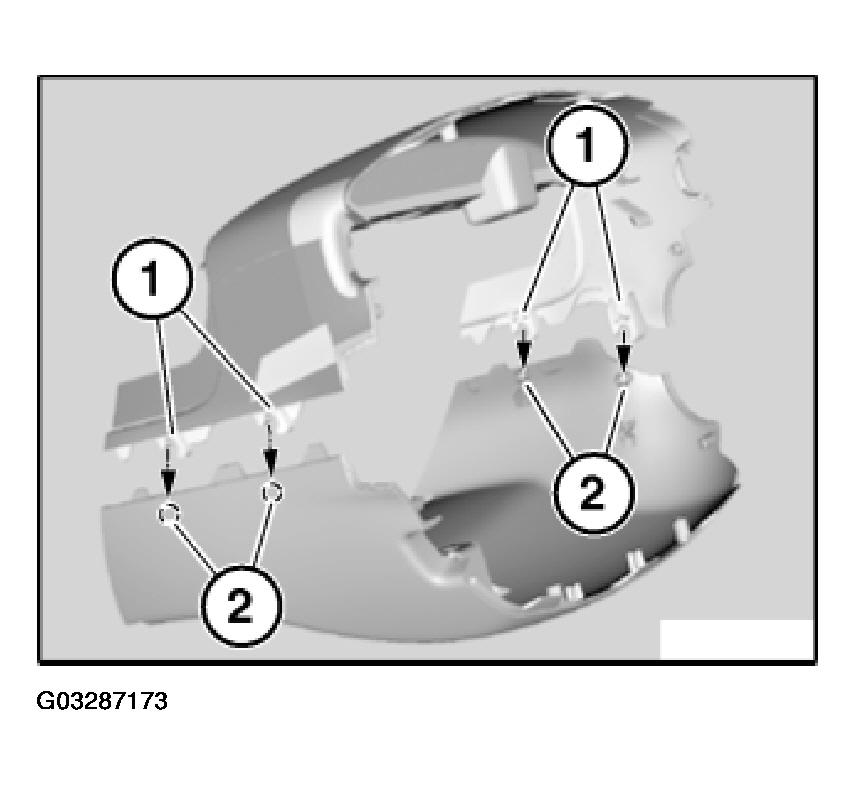

Locks (2) must engage in hooks (1) on both sides.

Fig 2: Identifying Locks And Hooks

Courtesy of BMW OF NORTH AMERICA, INC.

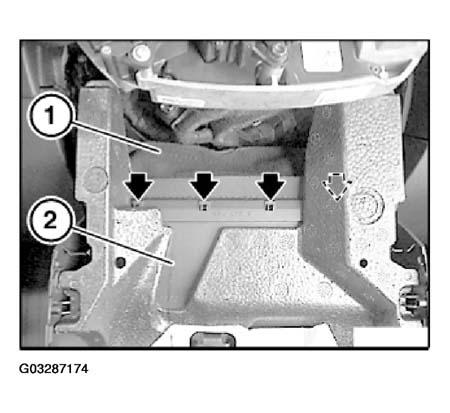

Unclip steering column cover (1) from lower section of trim (2).

Remove lower section of trim (2).

Fig 3: Removing Lower Section Of Trim

Courtesy of BMW OF NORTH AMERICA, INC.
