27 10 020 Installing Exchange Transfer Box (ATC 35L)
WARNING: This page does not describe the selected car, but rather 20 other vehicles, including the 2016 BMW 550i xDrive, 2016 BMW 535i xDrive, 2016 BMW 535d xDrive, 2016 BMW 528i xDrive, and 2015 BMW 550i xDrive. However, it is still accessible from the selected car via links, so may be relevant.
Special tools required:
- 22 1 044
- 22 1 046
- 33 4 460
IMPORTANT:
Before and after replacement, execute the "Repair" service function with the BMW diagnosis system.
Recycling:
Catch and dispose of escaping transmission oil.
Observe country-specific waste disposal regulations
Necessary preliminary tasks:
- Drain gear oil at oil drain plug.
Tightening torque: 27 10 2AZ .
- Remove TRANSFER BOX .
Remount the following parts:
- Covers and protective caps.
- Drive shaft transportation retainer.
- Tank ventilation line of transfer box.
- Holder for exhaust system on transmission cross-member.

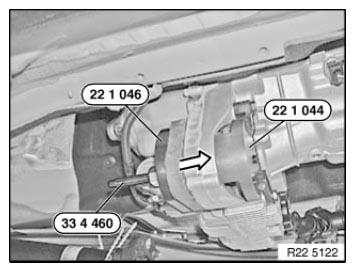

Bolt special tool 22 1 044 to transfer box.
Insert special tool 22 1 046 with bolt into recesses of rubber mount.
Mount new rubber mount with special tool 33 4 460.
Installation note:
Pay attention to installation position of rubber mount.
Coat housing bore and rubber mount with Circolight.
IMPORTANT:
After completing repair work, check transmission oil level and top up if necessary.
Undo oil filler plug (1).
Tightening torque: 27 10 2AZ .
Check oil level.
Pour in transmission oil up to lower edge of opening for oil filler plug (1).
Use only the approved transmission oil .
Undo oil filler plug (1).
Tightening torque: 27 10 2AZ .
Check oil level.
Pour in transmission oil up to lower edge of opening for oil filler plug (1).
Use only the approved transmission oil .
Failure to comply with this requirement will result in serious damage to the transfer box!
After replacement:
Repair service function CARRY OUT PROGRAMMING/ENCODING .
