27 10 010 Removing And Installing Transfer Box (ATC 35L)

WARNING: This page does not describe the selected car, but rather 20 other vehicles, including the 2016 BMW 550i xDrive, 2016 BMW 535i xDrive, 2016 BMW 535d xDrive, 2016 BMW 528i xDrive, and 2015 BMW 550i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

IMPORTANT: Before and after replacement, execute the "Repair" service function with the BMW diagnosis system.

IMPORTANT: After completion of repair work, CHECK TRANSMISSION OIL LEVEL and top up if necessary.
Failure to comply with this requirement will result in serious damage to the transfer box!

Necessary preliminary tasks:

Disconnect BATTERY EARTH LEAD .
Remove UNDERBODY PROTECTION .
Remove complete exhaust system. See 18 00 020 REMOVING AND INSTALLING COMPLETE EXHAUST SYSTEM (N55) , 18 00 020 REMOVING AND INSTALLING COMPLETE EXHAUST SYSTEM (N63) , 18 00 020 REMOVING AND INSTALLING COMPLETE EXHAUST SYSTEM (N20) or 18 00 020 REMOVING AND INSTALLING COMPLETE EXHAUST SYSTEM (N63 B40/B44 O 1) .
Remove heat shields.
Partially remove PROPELLER SHAFT .
- Disconnect propeller shaft at transmission.
- Release center mount.
- Tie up propeller shaft to underbody.
  NOTE: Bending the propeller shaft by an excessive angle can cause premature damage to the joint/propeller shaft!
Support gearbox with jack when removing the transfer box.

Release screws.

Tightening torque: 26 11 7AZ .

Remove front propeller shaft at output flange of transfer box and tie to one side.

Installation note:

Replace screws.

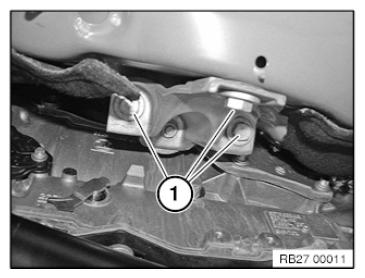

Fig 1: Locating Front Propeller Shaft Screw

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Support transmission with special tools 00 2 030 , 23 4 050 .

Fig 2: Supporting Transmission Using Tool

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1).

Remove cooling air duct (2).

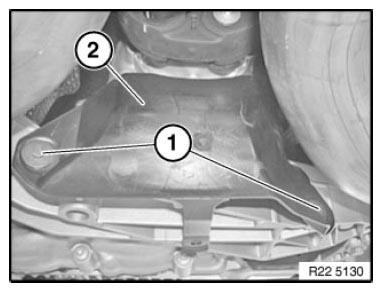

Fig 3: Cooling Air Duct And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

If necessary, release screws (1) for transmission support bracket.

Tightening torque: 22 32 10AZ .

Fig 4: Screws For Transmission Support Bracket

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws.

Remove transmission cross member.

Tightening torque: 22 32 3AZ .

Tightening torque: 22 32 6AZ .

Fig 5: Locating Transmission Cross Member Screw

Courtesy of BMW OF NORTH AMERICA, INC.

Disconnect connector (1) from transfer box control unit (linear force module) (2).

Fig 6: Connector From Transfer Box Control Unit

Courtesy of BMW OF NORTH AMERICA, INC.

Slightly lower gearbox.

Release screw connection of transfer box.

Tightening torque: 27 10 1AZ .

Remove transfer box.

Installation note:

Pay attention to dowel pin (1).

Grease dowel pin (1).

Apply a thin coat of grease to gearing.

Grease: WEICON ANTI-SEIZE.

Fig 7: Dowel Pin

Courtesy of BMW OF NORTH AMERICA, INC.
