32 11 100 Replacing gaiter for steering gear on left or right

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2007 BMW 530i, 2007 BMW 525i, 2006 BMW 530i, 2006 BMW 525i, and 2005 BMW 530i. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: The power steering gear must be replaced if the polished surface of the rack is damaged (e.g. by corrosion)!

After installation:

Perform Chassis Alignment Check .
Carry out Steering Angle Sensor Adjustment/Adjustment For Active Front Steering

Necessary preliminary tasks:

Remove tie rod end
Remove underbody protective plate. See 51 47 490 REMOVING AND INSTALLING / REPLACING FRONT UNDERBODY PROTECTION .
If necessary, remove steering gear cover at side

Clean tie rod.

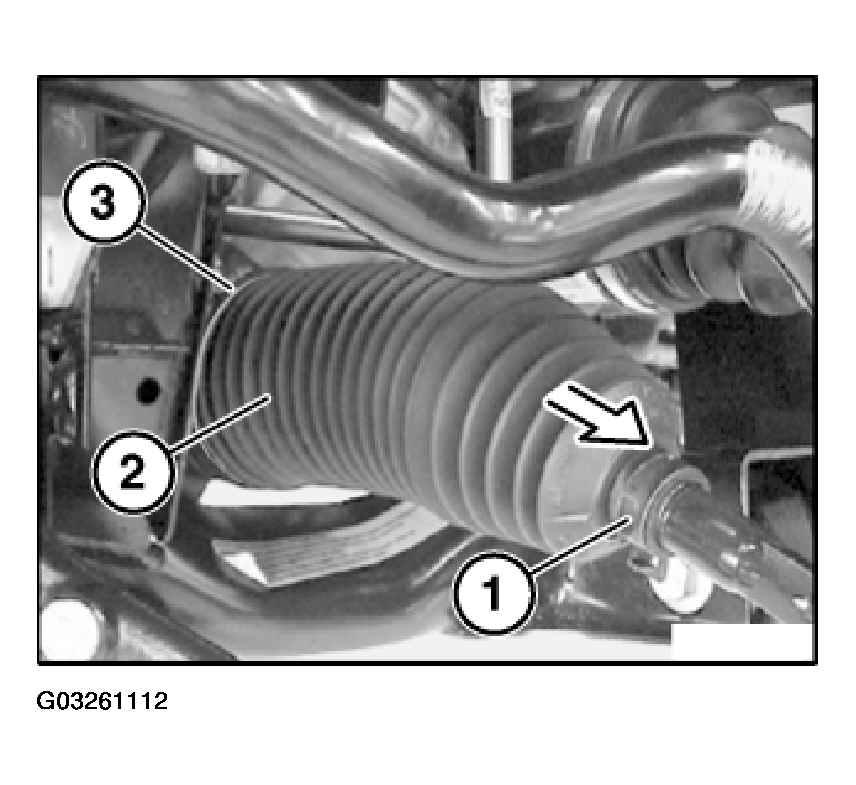

Release band clamp (1) and ear clip (3).

Detach gaiter (2) from tie rod.

Installation:

Clean rack and check surface for damage (e.g. by corrosion).

Grease rack (refer to OPERATING FLUIDS ).

Fig 1: Releasing Band Clamp And Ear Clip

Courtesy of BMW OF NORTH AMERICA, INC.

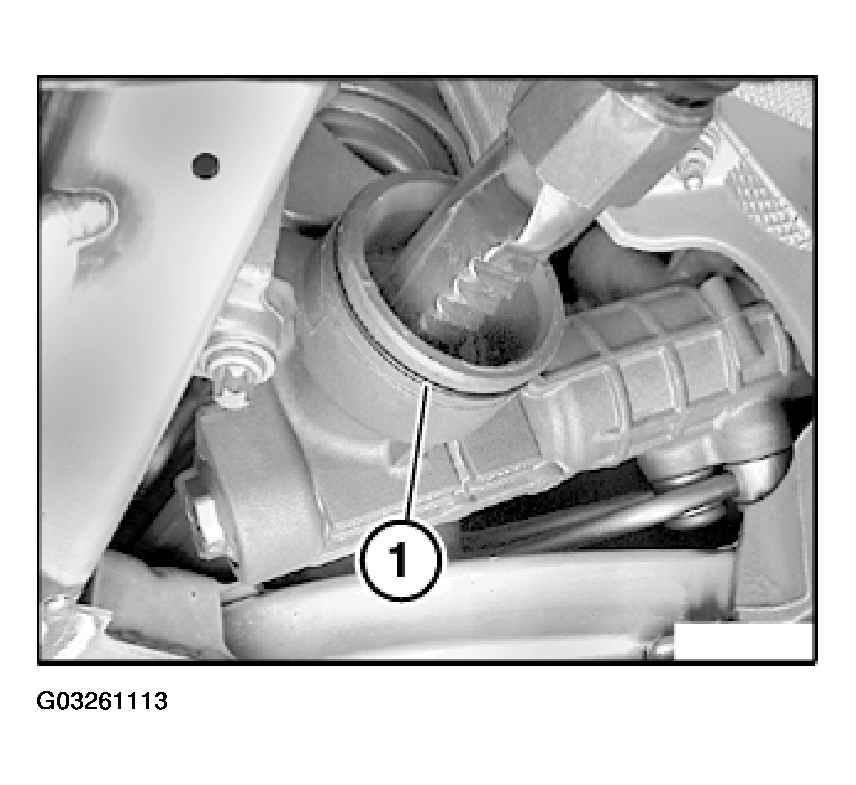

Replace and grease O-ring (1).

Fig 2: Replacing And Greasing O-Ring

Courtesy of BMW OF NORTH AMERICA, INC.
