32 31 241 Replacing adjusting lever for steering column
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2007 BMW 530i, 2007 BMW 525i, 2006 BMW 530i, 2006 BMW 525i, and 2005 BMW 530i. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary tasks:
- Remove lower section of steering column trim. See 32 31 020 Removing And Installing / Replacing Lower Section Of Steering Column Trim .
- Remove trim panel for pedal assembly. 51 45 185 REMOVING AND INSTALLING/REPLACING TRIM FOR PEDAL ASSEMBLY .

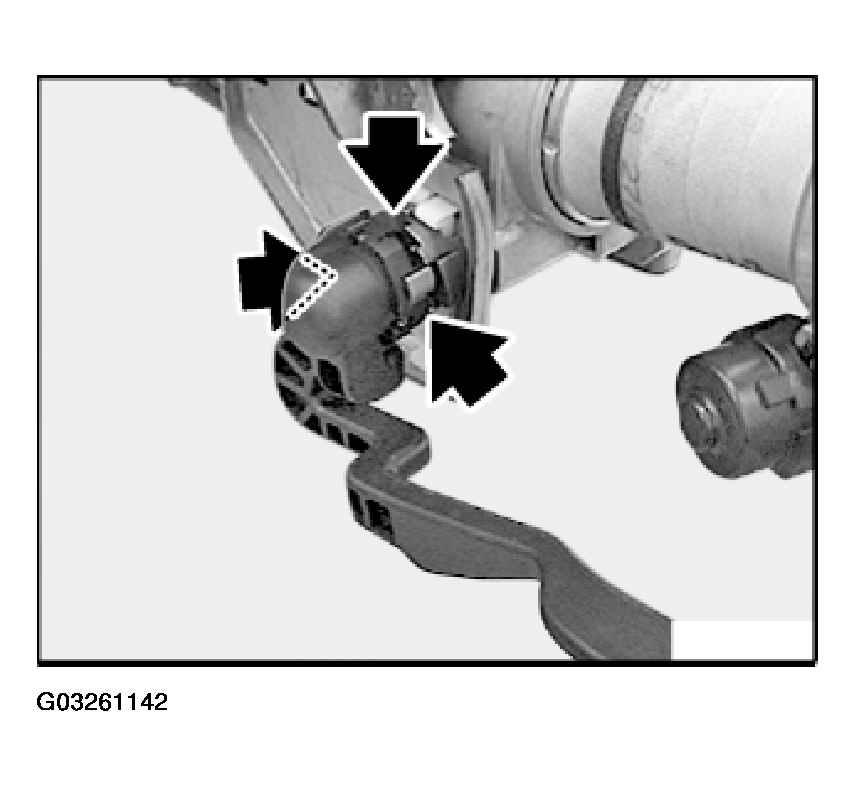

Unclip adjusting lever.
Installation:
Align adjusting lever to steering column and attach straight to prevent the locks from being damaged.
Check locks after attachment, replace adjusting lever if necessary.
