32 31 020 Removing and installing / replacing lower section of steering column trim

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2007 BMW 530i, 2007 BMW 525i, 2006 BMW 530i, 2006 BMW 525i, and 2005 BMW 530i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove front section of trim
Move steering column in "top" and "extended" position.

Release screw.

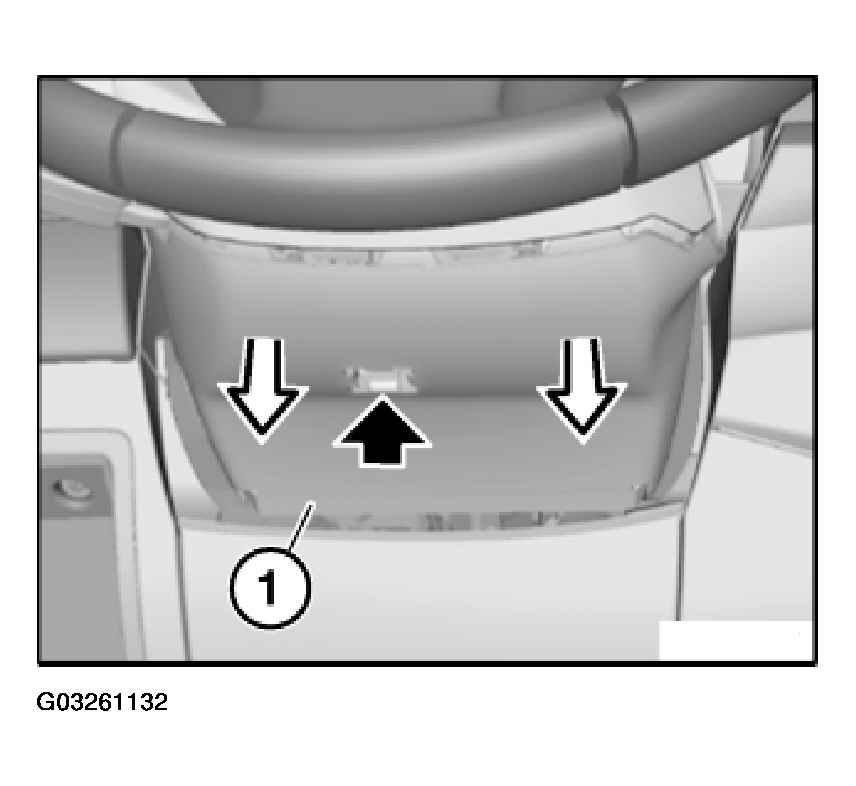

Unclip lower section of trim (1) and pull downwards.

Installation:

Replace expansion rivet.

Fig 1: Unclipping Lower Section Of Trim And Pulling Downwards

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

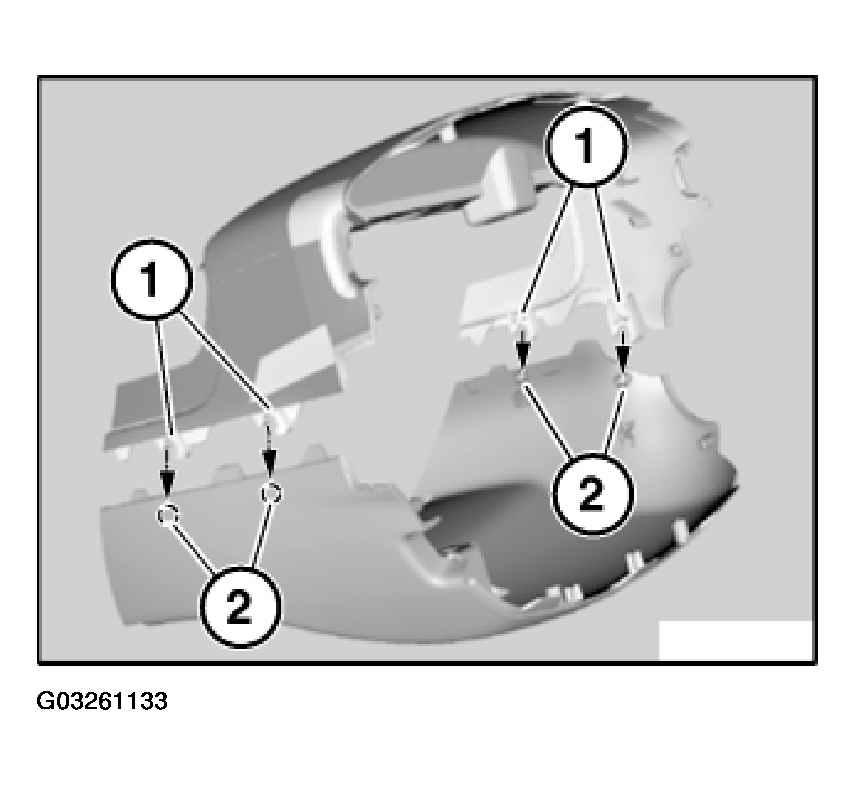

Locks (2) must engage in hooks (1) on both sides.

Fig 2: Identifying Locks Engage In Hooks On Both Sides

Courtesy of BMW OF NORTH AMERICA, INC.

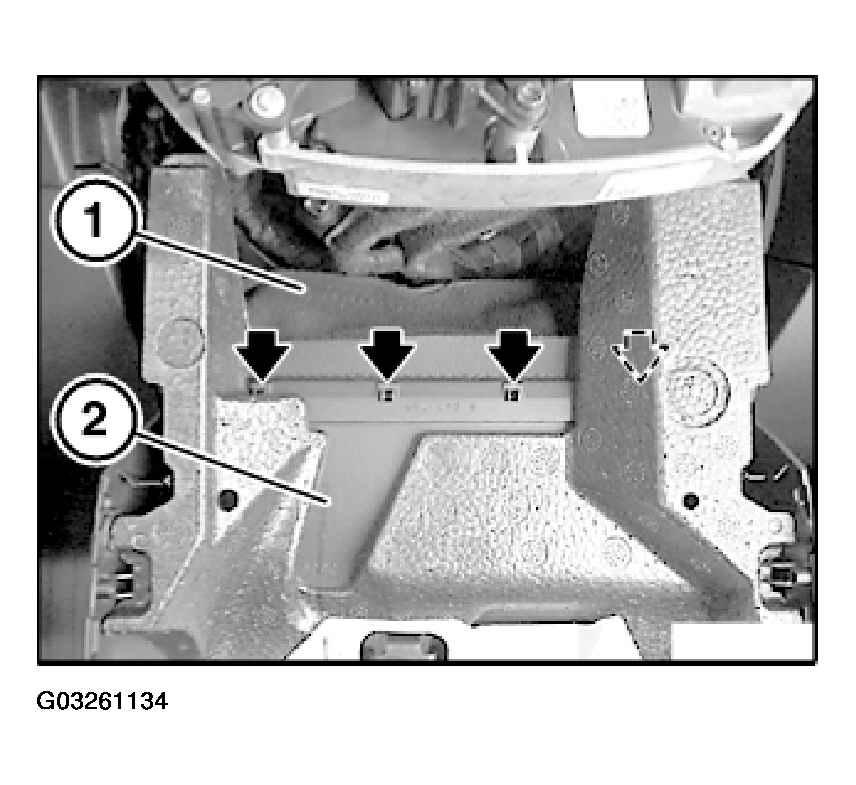

Unclip steering column cover (1) from lower section of trim (2).

Remove lower section of trim (2).

Fig 3: Unclipping Steering Column Cover From Lower Section Of Trim

Courtesy of BMW OF NORTH AMERICA, INC.
